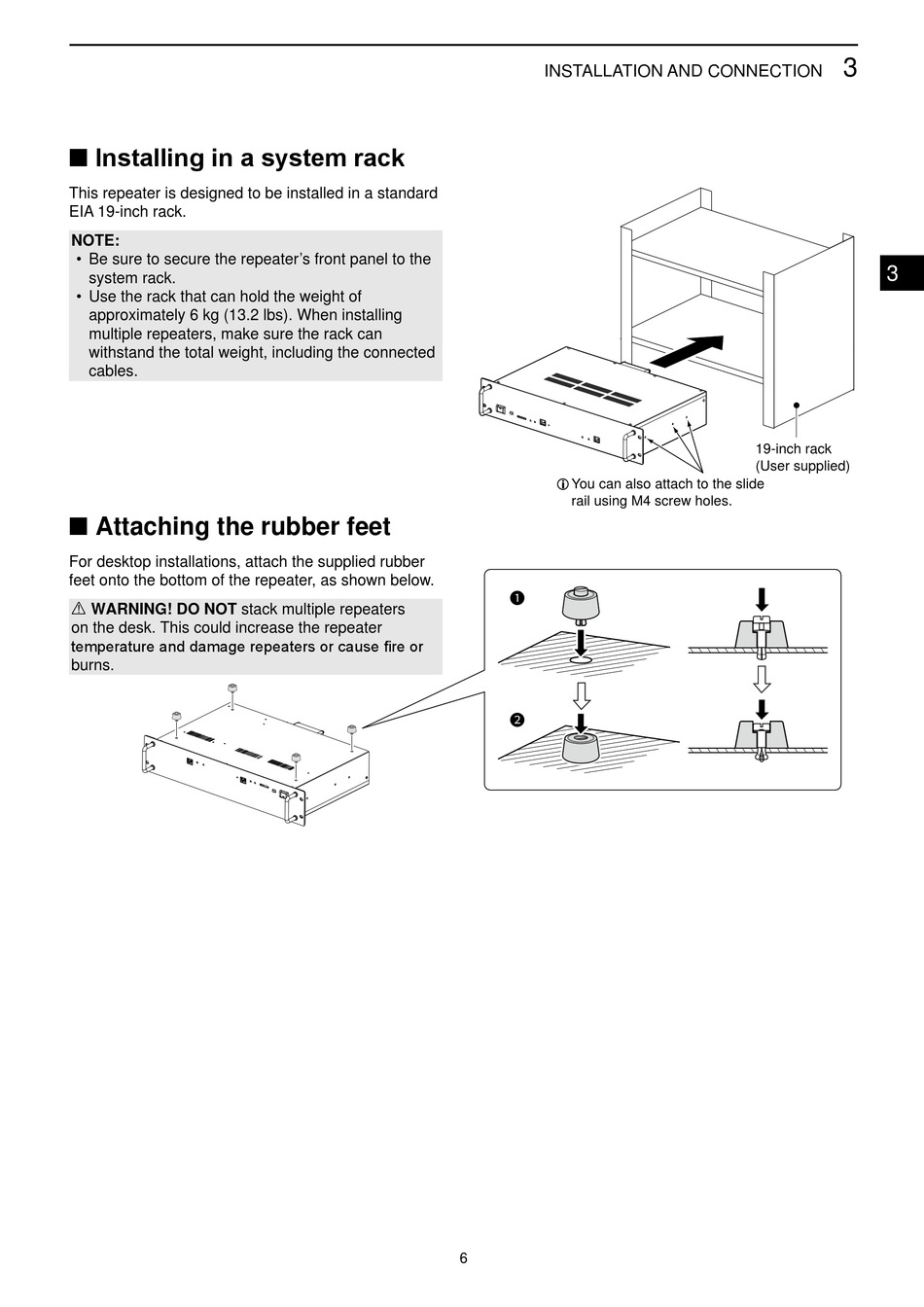

■ Installing in a system rack

This repeater is designed to be installed in a standard
EIA 19-inch rack.
NOTE:
• Be sure to secure the repeater's front panel to the
system rack.
• Use the rack that can hold the weight of
approximately 6 kg (13.2 lbs). When installing
multiple repeaters, make sure the rack can
withstand the total weight, including the connected
cables.

■ Attaching the rubber feet

For desktop installations, attach the supplied rubber
feet onto the bottom of the repeater, as shown below.
R WARNING! DO NOT stack multiple repeaters
on the desk. This could increase the repeater
temperature and damage repeaters or cause fire or
burns.
INSTALLATION AND CONNECTION
L You can also attach to the slide
rail using M4 screw holes.
