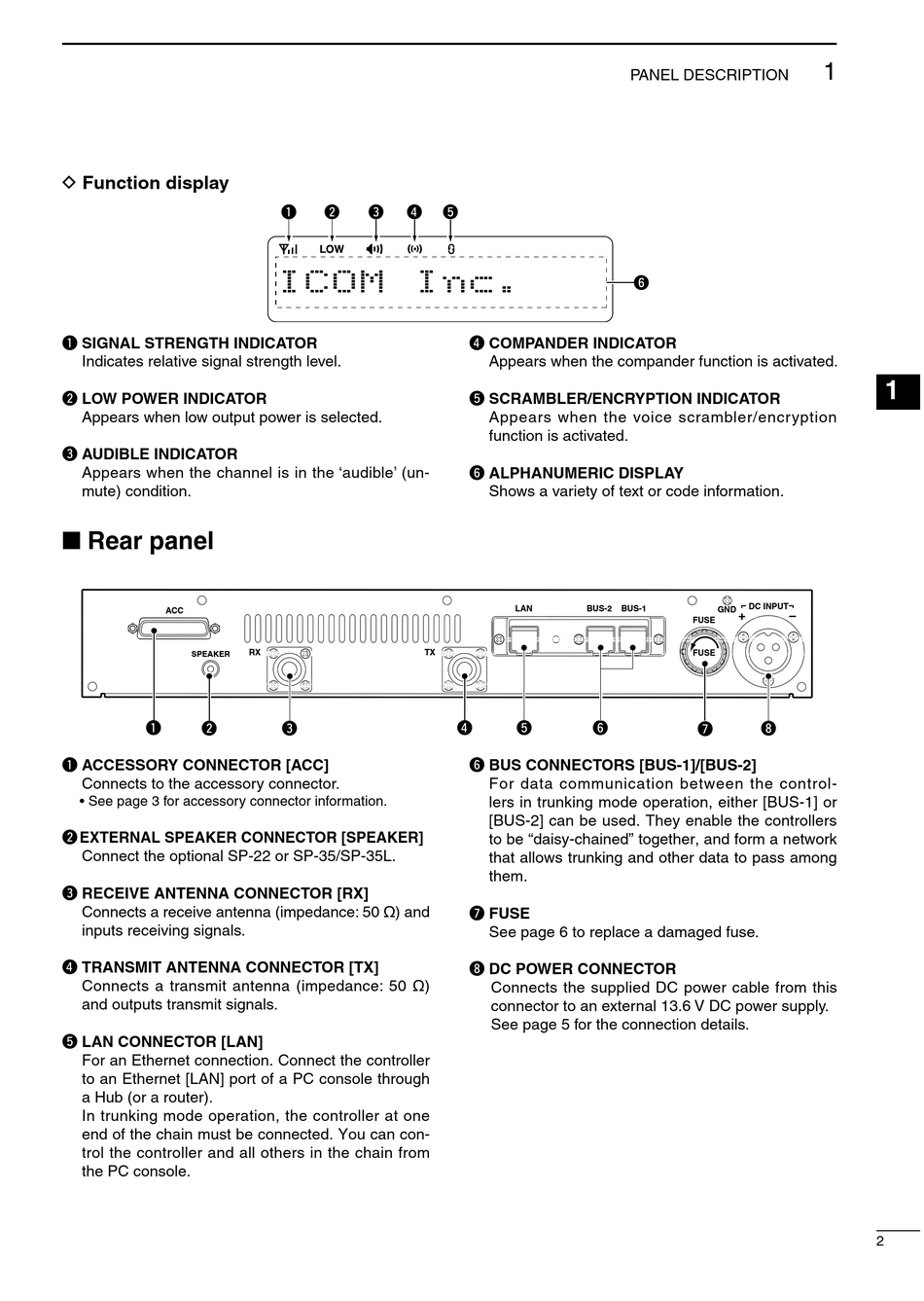

D Function display

q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
Appears when the channel is in the 'audible' (un-
mute) condition.
The optional channel extention module
n Rear panel
can be installed.
Ask your dealer for details.
ACC
SPEAKER
q
w
q ACCESSORY CONNECTOR [ACC]
Connects to the accessory connector.
• See page 3 for accessory connector information.
w EXTERNAL SPEAKER CONNECTOR [SPEAKER]
Connect the optional SP-22 or SP-35/SP-35L.
e RECEIVE ANTENNA CONNECTOR [RX]
Connects a receive antenna (impedance: 50 ø) and
inputs receiving signals.
r TRANSMIT ANTENNA CONNECTOR [TX]
Connects a transmit antenna (impedance: 50 ø)
and outputs transmit signals.
t LAN CONNECTOR [LAN]
For an Ethernet connection. Connect the controller
to an Ethernet [LAN] port of a PC console through
a Hub (or a router).
In trunking mode operation, the controller at one
end of the chain must be connected. You can con-
trol the controller and all others in the chain from
the PC console.
q
w
e
r
I C O M
I n c .
The optional trunking/network controller
can be installed.
Ask your dealer for details.
RX
e
t
r COMPANDER INDICATOR
w e
r
Appears when the compander function is activated.
t SCRAMBLER/ENCRYPTION INDICATOR
Appears when the voice scrambler/encryption
function is activated.
y ALPHANUMERIC DISPLAY
Shows a variety of text or code information.
LAN
BUS-2
TX
r
t
y
y BUS CONNECTORS [BUS-1]/[BUS-2]
For data communication between the control-
lers in trunking mode operation, either [BUS-1] or
[BUS-2] can be used. They enable the controllers
to be "daisy-chained" together, and form a network
that allows trunking and other data to pass among
them.
u FUSE
See page 6 to replace a damaged fuse.
i DC POWER CONNECTOR
Connects the supplied DC power cable from this
connector to an external 13.6 V DC power supply.
See page 5 for the connection details.
PANEL DESCRIPTION
y
t
y
¬
¬
DC INPUT
BUS-1
GND
+
FUSE
FUSE
u
i
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
2
