3
INSTALLATION AND CONNECTION

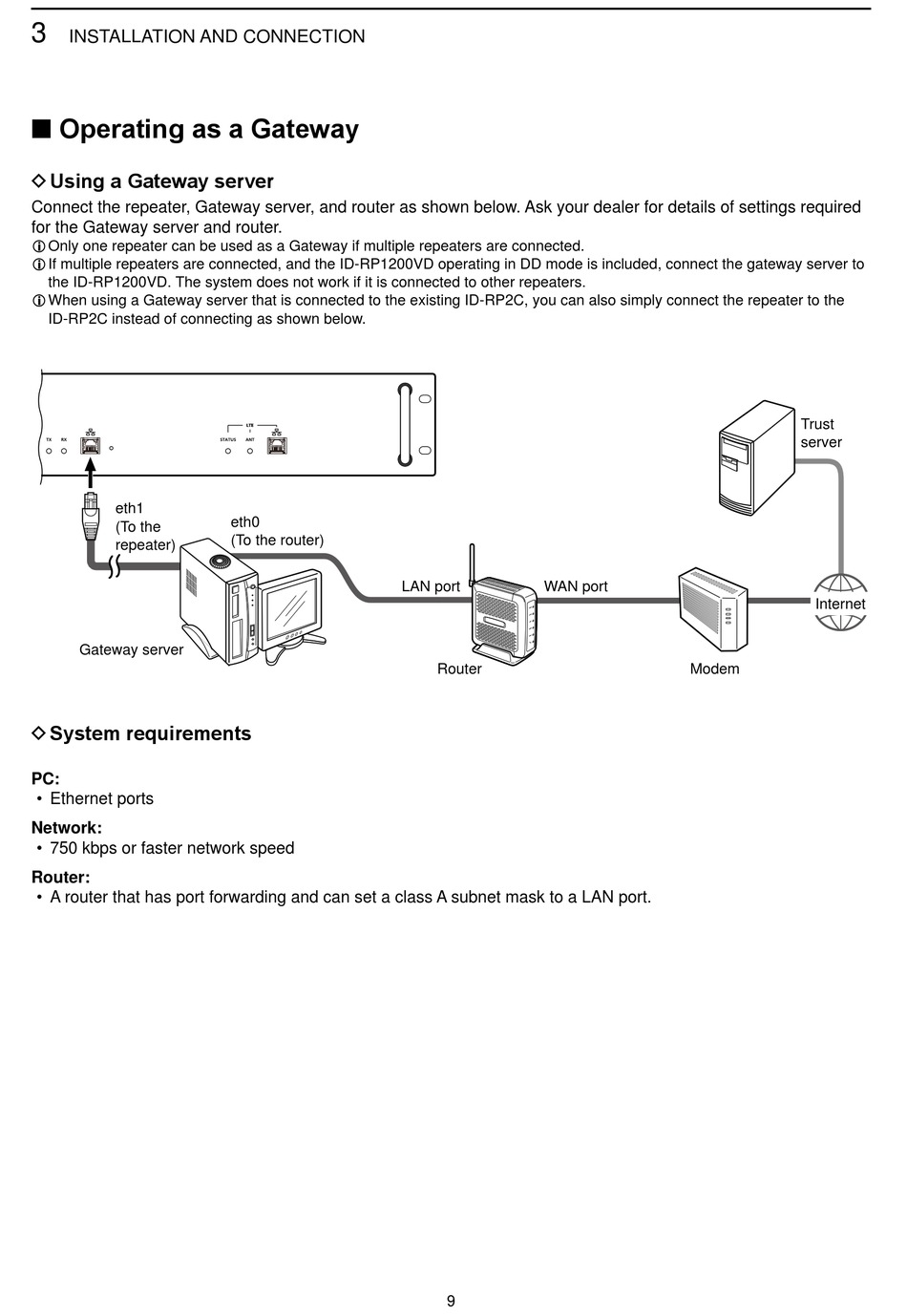

■ Operating as a Gateway
D Using a Gateway server
Connect the repeater, Gateway server, and router as shown below. Ask your dealer for details of settings required
for the Gateway server and router.
L Only one repeater can be used as a Gateway if multiple repeaters are connected.
L If multiple repeaters are connected, and the ID-RP1200VD operating in DD mode is included, connect the gateway server to
the ID-RP1200VD. The system does not work if it is connected to other repeaters.
L When using a Gateway server that is connected to the existing ID-RP2C, you can also simply connect the repeater to the
ID-RP2C instead of connecting as shown below.
eth1
(To the
repeater)
Gateway server
D System requirements
PC:
• Ethernet ports
Network:
• 750 kbps or faster network speed
Router:
• A router that has port forwarding and can set a class A subnet mask to a LAN port.
eth0
(To the router)
LAN port
WAN port
Router
9
Trust
server
Internet
Modem
