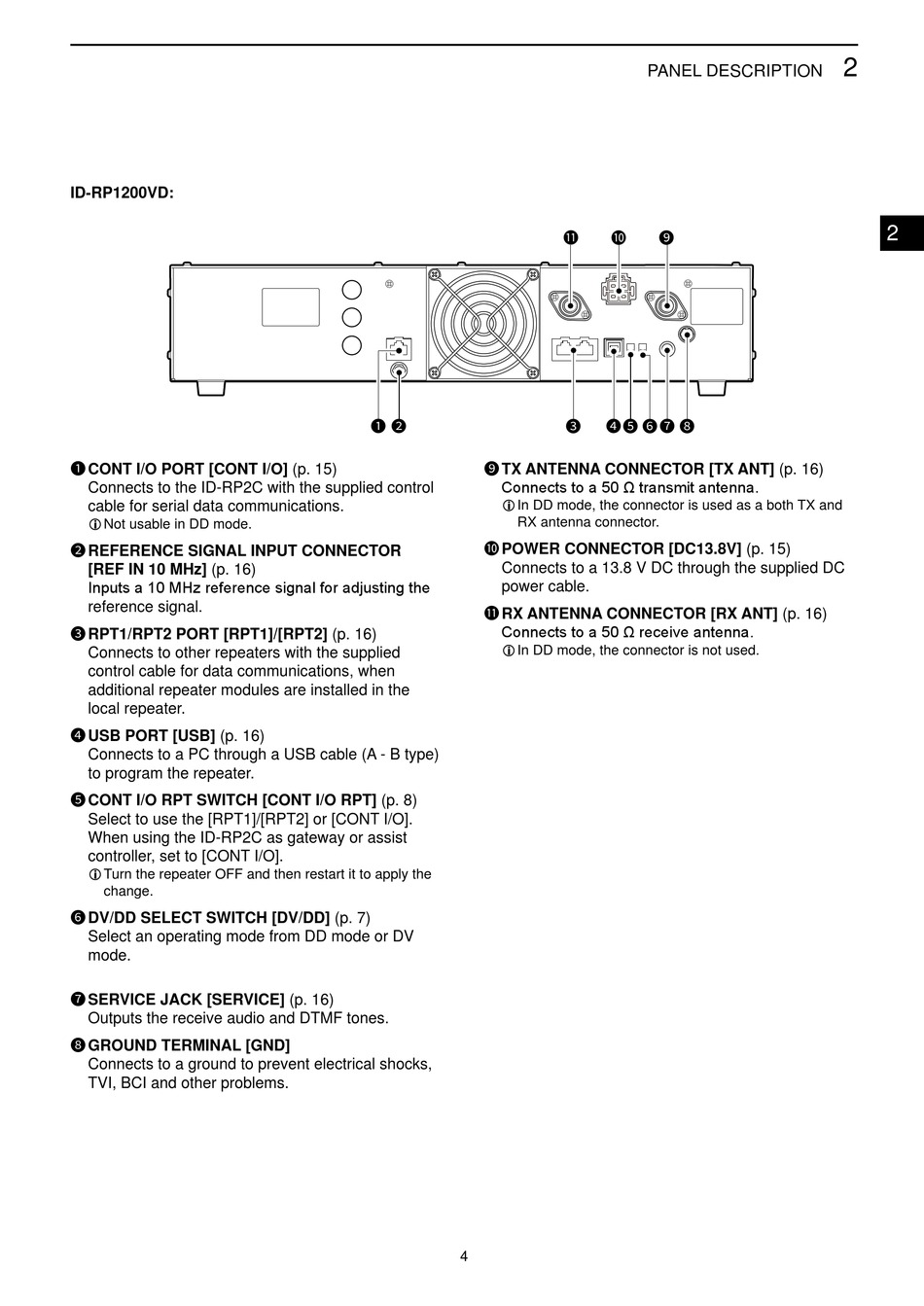

ID-RP1200VD:
1 CONT I/O PORT [CONT I/O] (p. 15)
Connects to the ID-RP2C with the supplied control
cable for serial data communications.
L Not usable in DD mode.
2 REFERENCE SIGNAL INPUT CONNECTOR
[REF IN 10 MHz] (p. 16)
Inputs a 10 MHz reference signal for adjusting the
reference signal.
3 RPT1/RPT2 PORT [RPT1]/[RPT2] (p. 16)
Connects to other repeaters with the supplied
control cable for data communications, when
additional repeater modules are installed in the
local repeater.
4 USB PORT [USB] (p. 16)
Connects to a PC through a USB cable (A - B type)
to program the repeater.
5 CONT I/O RPT SWITCH [CONT I/O RPT] (p. 8)
Select to use the [RPT1]/[RPT2] or [CONT I/O].
When using the ID-RP2C as gateway or assist
controller, set to [CONT I/O].
L Turn the repeater OFF and then restart it to apply the
change.
6 DV/DD SELECT SWITCH [DV/DD] (p. 7)
Select an operating mode from DD mode or DV
mode.
7 SERVICE JACK [SERVICE] (p. 16)
Outputs the receive audio and DTMF tones.
8 GROUND TERMINAL [GND]
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
1 2
9 TX ANTENNA CONNECTOR [TX ANT] (p. 16)
Connects to a 50 Ω transmit antenna.
L In DD mode, the connector is used as a both TX and
RX antenna connector.
10 POWER CONNECTOR [DC13.8V] (p. 15)
Connects to a 13.8 V DC through the supplied DC
power cable.
11 RX ANTENNA CONNECTOR [RX ANT] (p. 16)
Connects to a 50 Ω receive antenna.
L In DD mode, the connector is not used.
4
PANEL DESCRIPTION
