Removing A Side Panel - Sun Microsystems Rack Service Manual

Grounding Strap Connections
TABLE 1-1
Rack Terminal
Front Right

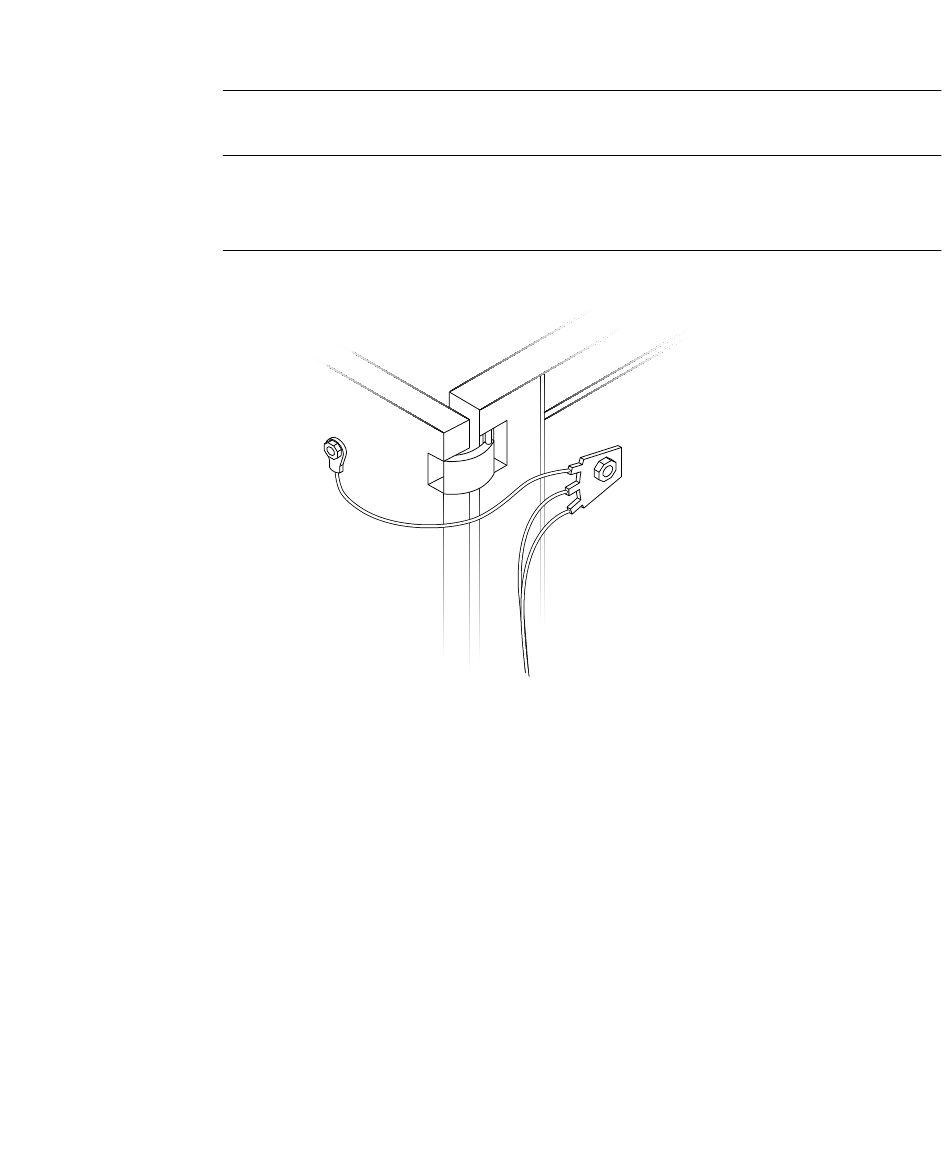

Typical Grounding Strap Connection
FIGURE 1-2

Removing a Side Panel

1. Disconnect the grounding strap from the stud on the top inside of the panel.
2. Release two latches on the bottom inside of the panel.
3. Pull the bottom of the panel slightly away from the rack and lift up the panel.
Grounding
Strap
Number Connected to:
10 Right side panel
11 Front door if hinged on right
12 not used
