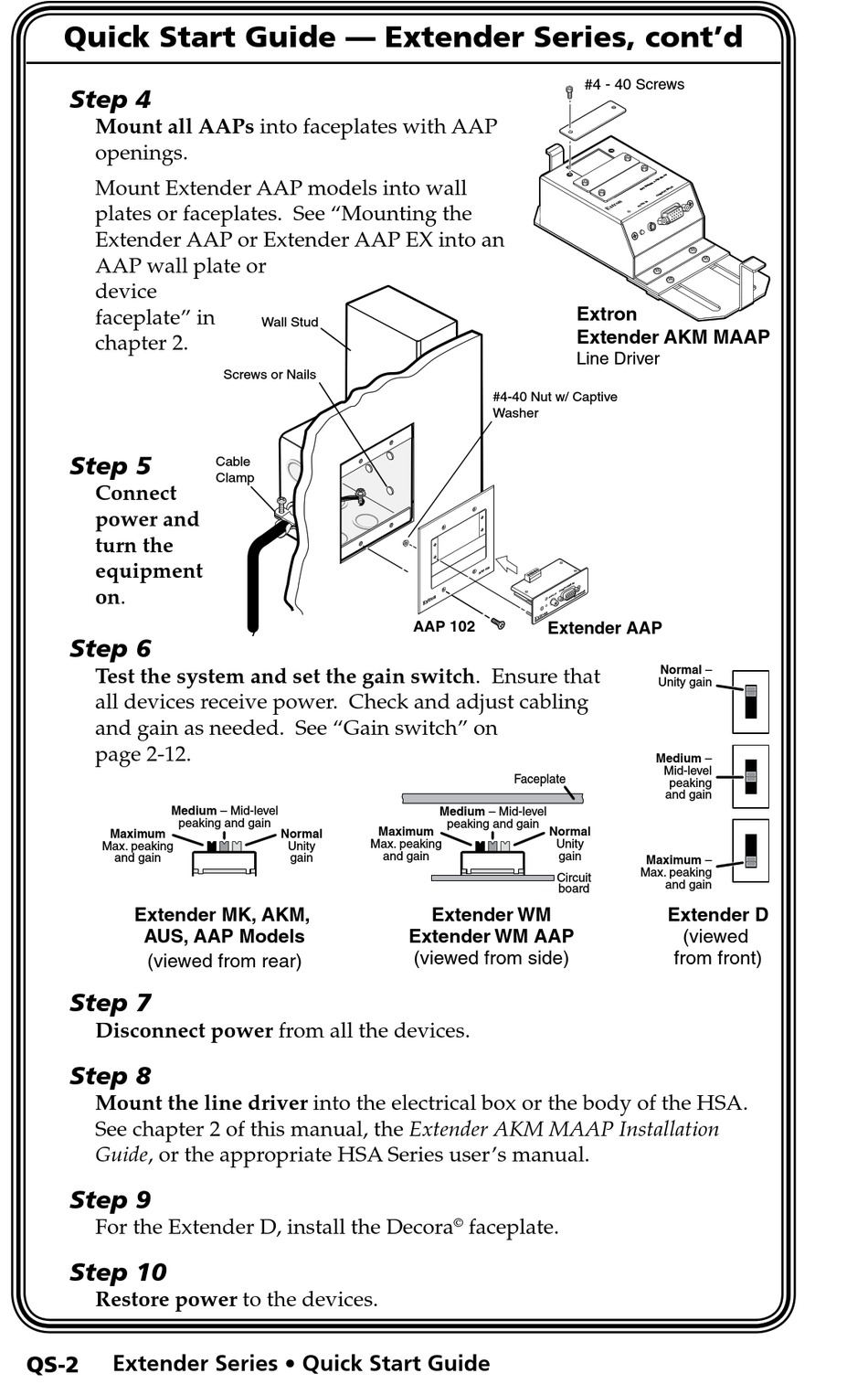

Quick Start Guide — Extender Series, cont'd
Step 4
Mount all AAPs into faceplates with AAP
openings.
Mount Extender AAP models into wall
plates or faceplates. See "Mounting the
Extender AAP or Extender AAP EX into an
AAP wall plate or
device
faceplate" in
chapter 2.
Step 5
Connect
power and
turn the
equipment
on.
Step 6
Test the system and set the gain switch. Ensure that
all devices receive power. Check and adjust cabling
and gain as needed. See "Gain switch" on
page 2-12.
Medium – Mid-level
peaking and gain
Maximum
Max. peaking
and gain
Extender MK, AKM,
AUS, AAP Models
(viewed from rear)
Step 7
Disconnect power from all the devices.
Step 8
Mount the line driver into the electrical box or the body of the HSA.
See chapter 2 of this manual, the Extender AKM MAAP Installation
Guide, or the appropriate HSA Series user's manual.
Step 9
For the Extender D, install the Decora
Step 10
Restore power to the devices.
Extender Series • Quick Start Guide
