Dimensions and Templates

Dimensions

N
N

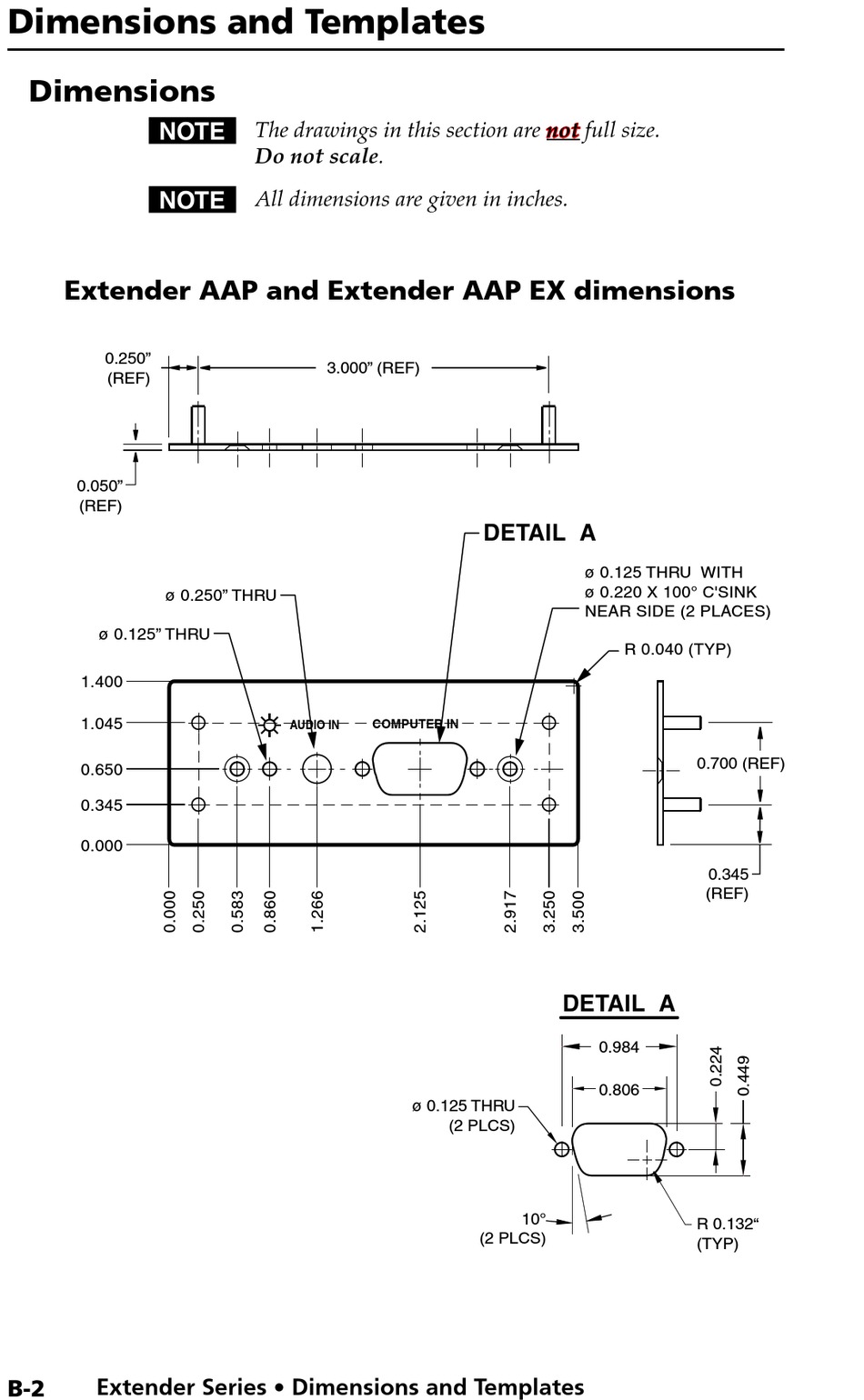

Extender AAP and Extender AAP EX dimensions

0.250"
(REF)
0.050"
(REF)
ø 0.250" THRU
ø 0.125" THRU
1.400
1.045
0.650
0.345
0.000
Extender Series • Dimensions and Templates
B-2
The drawings in this section are not full size.
Do not scale.
All dimensions are given in inches.
3.000" (REF)
AUDIO IN COMPUTER IN
ø 0.125 THRU
DETAIL A
ø 0.125 THRU WITH
ø 0.220 X 100° C'SINK
NEAR SIDE (2 PLACES)
DETAIL A
0.984
0.806
(2 PLCS)
10°
(2 PLCS)
R 0.040 (TYP)
0.700 (REF)
0.345
(REF)
R 0.132"
(TYP)
