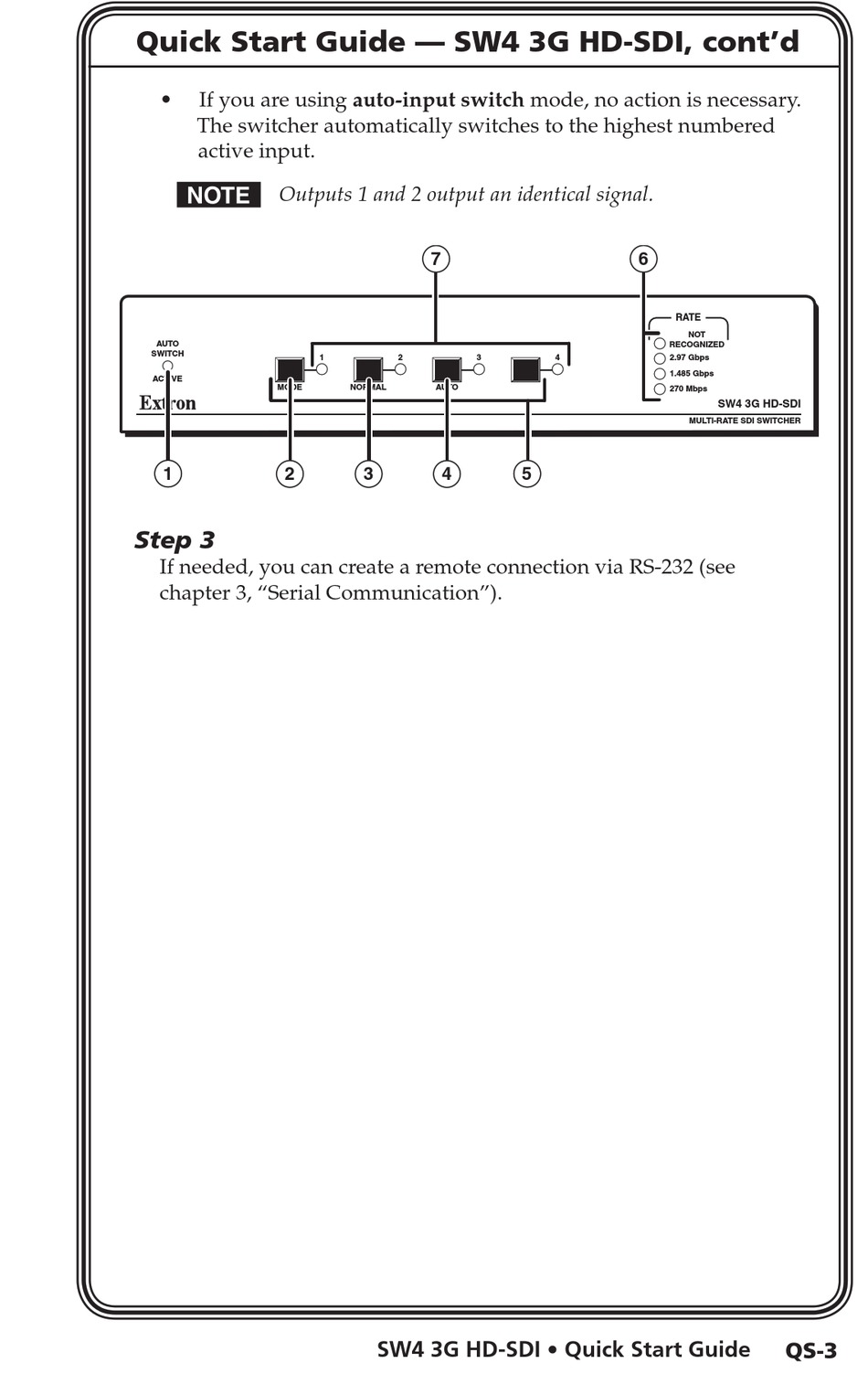

Quick Start Guide — SW4 3G HD-SDI, cont'd
•
If you are using auto-input switch mode, no action is necessary.
The switcher automatically switches to the highest numbered
active input.
N
Outputs 1 and 2 output an identical signal.
AUTO
SWITCH
ACTIVE
MODE
1
2
Step 3
If needed, you can create a remote connection via RS-232 (see
chapter 3, "Serial Communication").
7
1
2
3
NORMAL
AUTO
3
4
SW4 3G HD-SDI • Quick Start Guide
6
RATE
RECOGNIZED
4
2.97 Gbps
1.485 Gbps
270 Mbps
5
NOT
SW4 3G HD-SDI
MULTI-RATE SDI SWITCHER
QS-3
