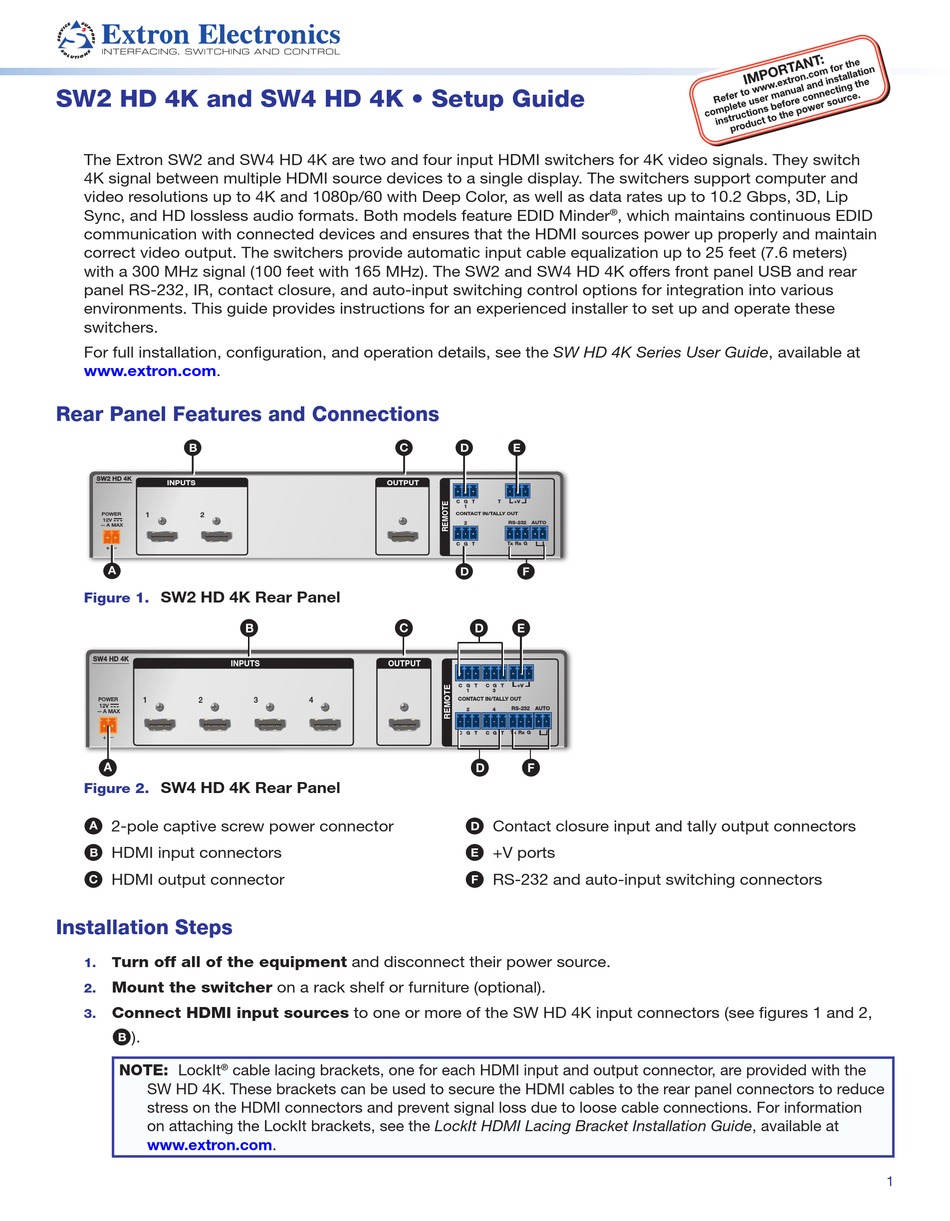

SW2 HD 4K and SW4 HD 4K • Setup Guide
The Extron SW2 and SW4 HD 4K are two and four input HDMI switchers for 4K video signals. They switch
4K signal between multiple HDMI source devices to a single display. The switchers support computer and
video resolutions up to 4K and 1080p/60 with Deep Color, as well as data rates up to 10.2 Gbps, 3D, Lip
Sync, and HD lossless audio formats. Both models feature EDID Minder
communication with connected devices and ensures that the HDMI sources power up properly and maintain
correct video output. The switchers provide automatic input cable equalization up to 25 feet (7.6 meters)
with a 300 MHz signal (100 feet with 165 MHz). The SW2 and SW4 HD 4K offers front panel USB and rear
panel RS‑232, IR, contact closure, and auto‑input switching control options for integration into various
environments. This guide provides instructions for an experienced installer to set up and operate these
switchers.
For full installation, configuration, and operation details, see the SW HD 4K Series User Guide, available at
www.extron.com.

Rear Panel Features and Connections

B
SW2 HD 4K
INPUTS
1 2
POWER
12V
-- A MAX
A
SW2 HD 4K Rear Panel
Figure 1.
SW4 HD 4K
INPUTS
1 2
POWER
12V
-- A MAX
A
SW4 HD 4K Rear Panel
Figure 2.
2‑pole captive screw power connector
A
HDMI input connectors
B
HDMI output connector
C

Installation Steps

urn off all of the equipment and disconnect their power source.
T
1.
Mount the switcher on a rack shelf or furniture (optional).
2.
Connect HDMI input sources to one or more of the SW HD 4K input connectors (see figures 1 and 2,
3.
).
B
NOTE: LockIt cable lacing brackets, one for each HDMI input and output connector, are provided with the
®
SW HD 4K. These brackets can be used to secure the HDMI cables to the rear panel connectors to reduce
stress on the HDMI connectors and prevent signal loss due to loose cable connections. For information
on attaching the LockIt brackets, see the LockIt HDMI Lacing Bracket Installation Guide, available at
www.extron.com.
C
OUTPUT
B C
OUTPUT
3 4
, which maintains continuous EDID
®
D E
C G T T +V
1
CONTACT IN/TALLY OUT
RS-232 AUTO
2
C G T Tx Rx G
D F
D E
C G T C G T +V
1 3
CONTACT IN/TALLY OUT
RS-232 AUTO
2 4
Tx Rx G
C G T C G T
D F
D Contact closure input and tally output connectors
+V ports
E
RS‑232 and auto‑input switching connectors
F
