Extron electronics SW2 VGAxi User Manual

Installation and Operation
SW VGAxi xi xi xi xi / MACxi xi xi xi xi Switchers
The SW VGAxi / MACxi are 350 MHz bandwidth switchers are housed in rack mountable, 1U high,
half width metal enclosures with internal, universal 100 - 240 VAC 50/60 Hz power supplies. They
have built-in standard contact closure remote control capability with Tally through the 25 pin Contact
Remote connector (see Contact Remote pin assignments - Figure 4-A). Optional remote controls
available for both switcher types are the KP-10 wired remote with 25 foot cable, the IR-10 Infrared
remote control with an operating range of approximately 30 feet and the RS-232 2,4,6,8 Controller.
VGAxi switchers are available with 2, 4 or 6 inputs while the SW MACxi is only available with 2 inputs.
If more than 2 MAC inputs are required, the SW4 VGAxi or SW6 VGAxi may be used with VGA/MAC
adapters (see connection diagram in Figure 3-A and Part Numbers on Page 5).
Auto-switching
Auto-switching is a feature of the SW VGAxi and SW MACxi switchers that can be enabled/disabled
using a switch on the rear panel (see item E in Figure 2-A). With the AUTO/MANUAL switch in the
AUTO position, the front panel AUTO SWITCH ACTIVE LED is ON, the input selection buttons are
disabled, and the switcher automatically selects the highest number input that has sync pulses
available.

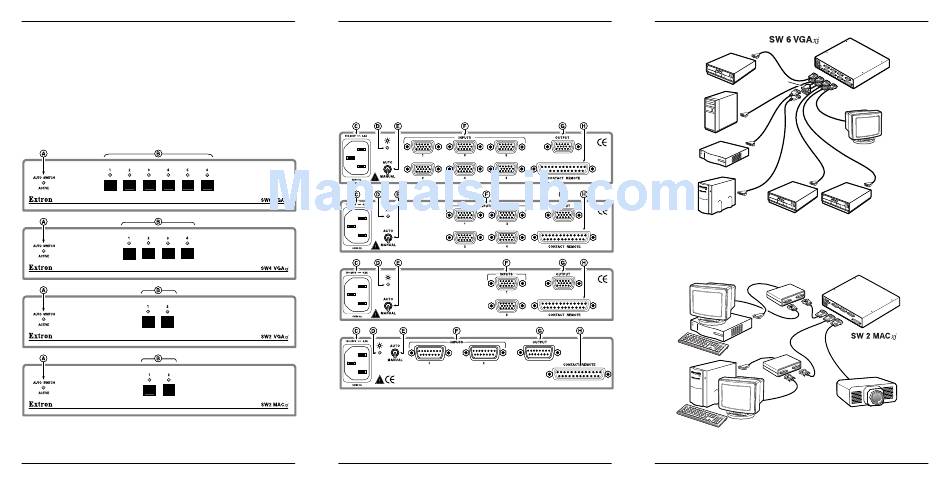

Figure 1-A
Front Panel Component Descriptions
The letters next to the following descriptions match the circled letters in Figure 1-A above.
A Auto Switch Active LED - ON = Auto switch mode active (Rear panel Auto/Manual switch UP)
B Input selection switches and LEDs - LED for selected input will be ON.
Extron • SW Switchers VGA xi / MAC xi • User's Guide
Page 1
Installation and Operation
Features
• Two, four or six inputs available, depending on the model
• 350 MHz bandwidth (-3 dB)
• Auto-switchable (switch selectable)
• 25 pin contact closure remote control connector
• Unselected inputs are 75 ohm terminated
• Tactile switch buttons with LEDs
• 1U, 1/2 rack width enclosure
• Internal universal power supply
• Input/Output connectors - VGAxi = Female 15 pin HD, MACxi = Female 15 pin D
• VGAxi is compatible with IBM PS/2, VGA, SuperVGA, XGA, VESA and XGA-2 computers. M
Quadra may be used with SW 2 MACxi, or, if more than two inputs are required, SW 4/6 VGAxi
switchers may be used with optional M /VGA adapter (26-340-01 or 26-340-02).
AC
Figure 2-A
Rear Panel Component Descriptions
The letters next to the following descriptions match the circled letters in Figure 2-A above.
C AC power connector - Standard IEC power connector (100 - 240 VAC 50/60 HZ)
D Power LED - ON if AC power is present
E AUTO/MANUAL switch - Down = normal mode, UP = Auto switch mode
F VGA Input connectors
G VGA Output connector
H Contact Remote connector - 25-pin contact closure connector - see Page 4 for details.
Extron • SW Switchers VGA xi / MAC xi • User's Guide
Page 2
Connection Diagrams
PC Computer
VGA/MAC
PC Computer Adapters
and
AC
MAC Computer
MAC Computer
Figure 3-A SW 6 VGAxi switcher diagram
Extron
Interface
MAC Computer
MAC Computer
Figure 3-B SW 2 MACxi switcher diagram
Extron • SW Switchers VGA xi / MAC xi • User's Guide
PC Monitor
PC Computer
PC Computer
Extron
Interface
LCD Projector
Page 3
