π
H-4405

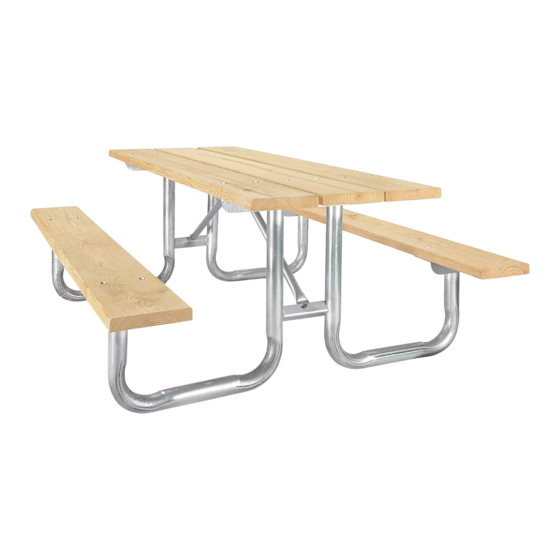

STEEL FRAME
PICNIC TABLE
TOOLS NEEDED
3/8" Phillips
1/2" Phillips
Drill Bit
Drill Bit
Nut x 20
Washer x 20
29" Support Brace x 2
26½" Center Brace
Board
Frame Lip
Leg Frame
PAGE 1 OF 2
1-800-295-5510
uline.com
9/16" Phillips
Drill Bit
3/8" Bolt x 20
Board x 5
ASSEMBLY INSTRUCTIONS
Hammer
PARTS
Washer x 3
1.
Stand up the leg frames and loosely attach one
boardin the center of the tabletop using the 3/8"
bolts, washers and nuts. (See Figure 1)
NOTE: The frame lips should face toward the
outside of the table.
Figure 1
Power Drill
Socket Wrench
Nut x 3
#14 Self-Tapping
Screw x 6
Brace Hardware
Leg Frame x 2
1/2" Socket
9/16" Socket
5/16" Bolt x 3
1213 IH-4405
