U-Line H-2671 Assembly Instructions

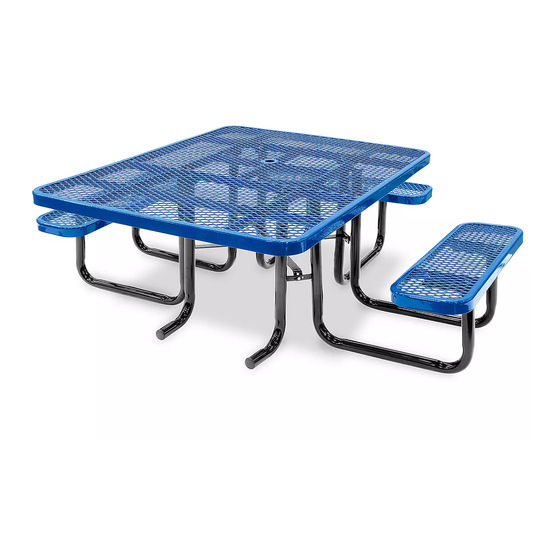

Square ada picnic table
Hide thumbs Also See for H-2671:
1
2

Advertisement

Quick Links

Download this manual
π
H-2671
square ada
Picnic table

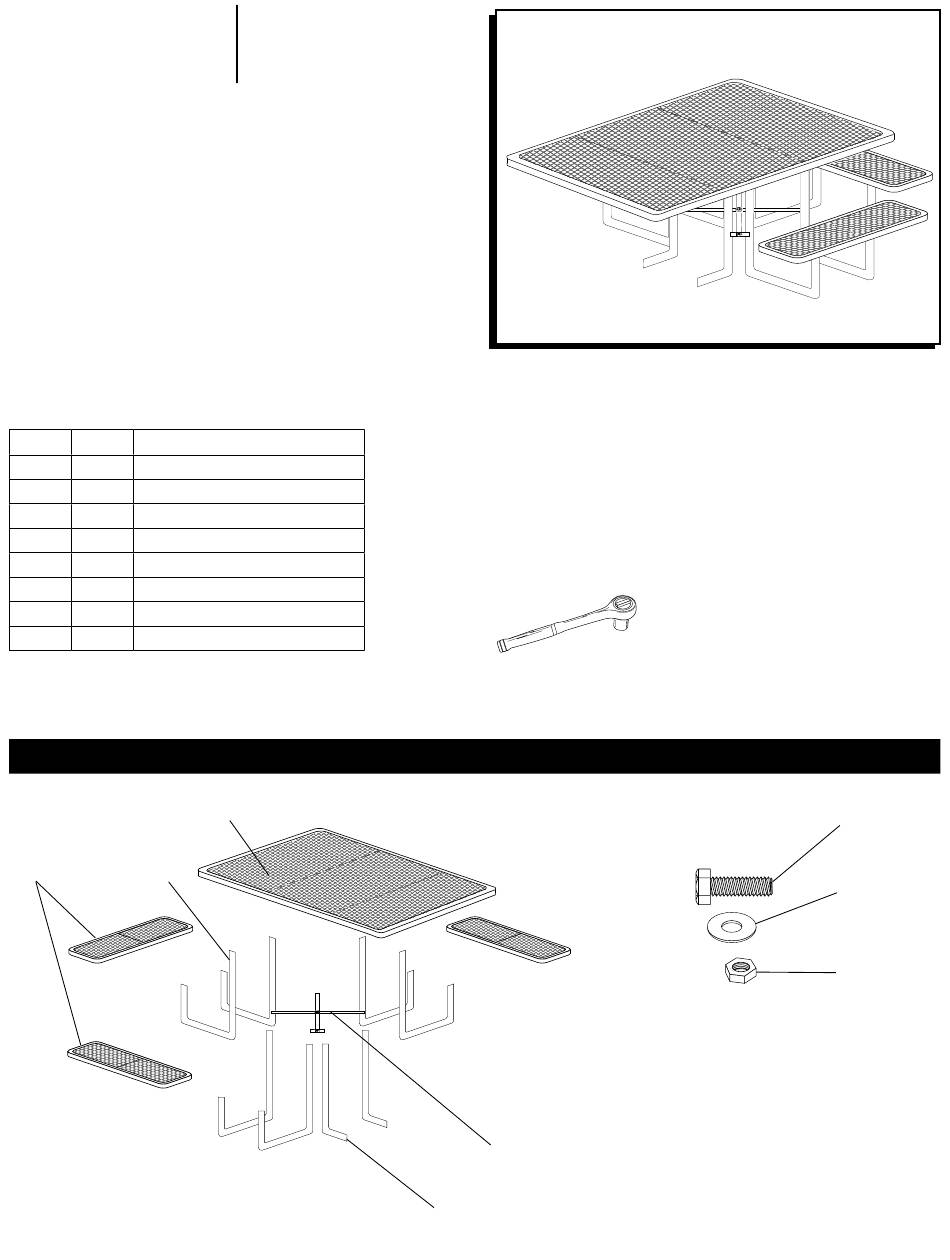

CoNTENTS
REF.
QTY.
DESCRIPTIoN
1
24
5/16" Hex Head Bolts
2
24
5/16" Washer
3
24
5/16" Nut
4
3
Bench Seats
5
1
Tabletop
6
6
Legs
7
1
Cross Brace with Umbrella Holder
8
2
L-Shaped Leg Support
4
6
PAGE 1 OF 2
1-800-295-5510
uline.com
5
Tool NEEDED
PARTS
7
8
1/2" Socket Wrench
1
2
3
1013 IH-2671
