U-Line H-3745 Manual

H-3745
π
H-3747
ALUMINUM
OUTDOOR TABLE
TOOLs NEEDED
Power Drill
Aluminum Plank x 5
Plastic End Caps for Seats x 4
Metal End Caps for Tabletop x 2

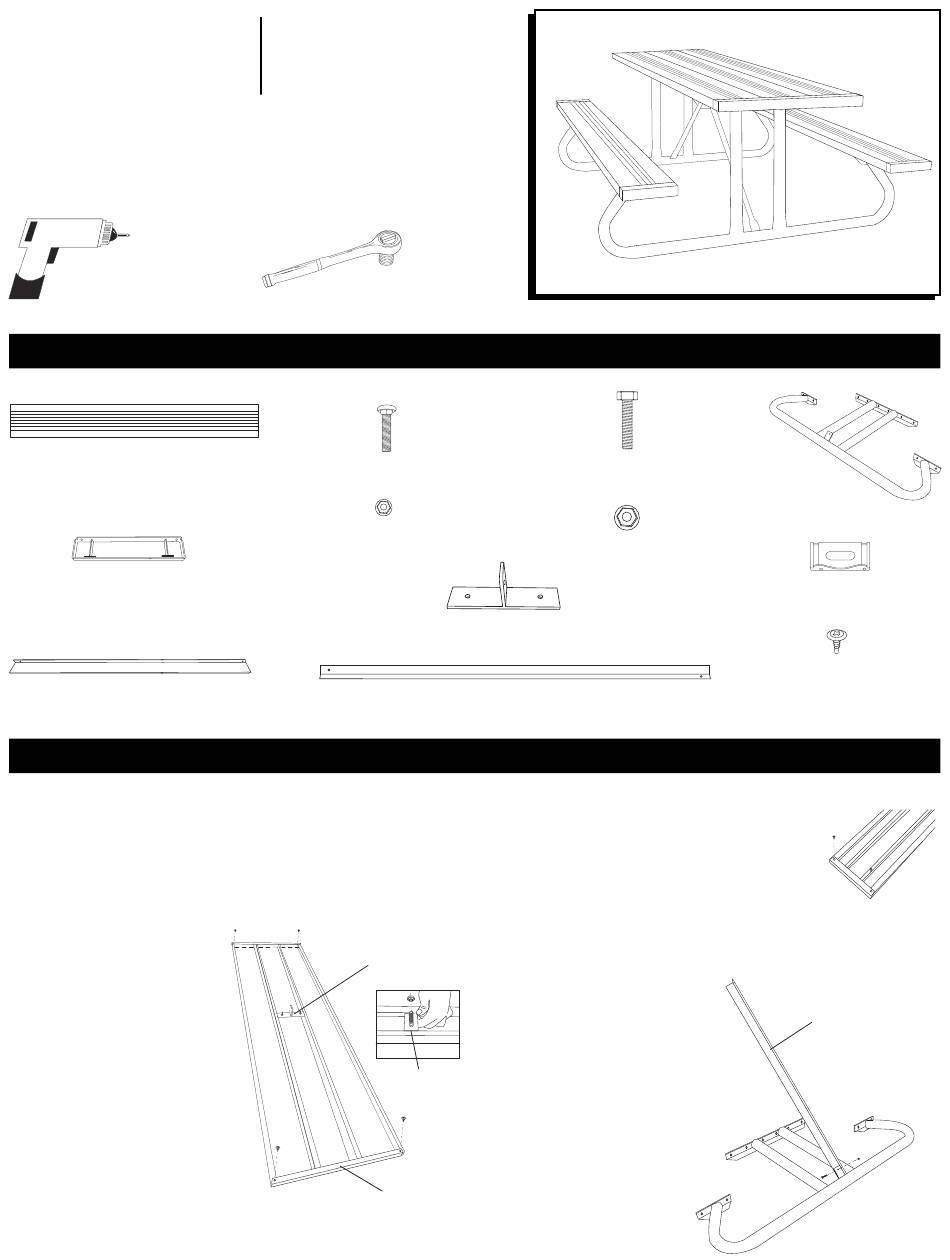

1. Lay three aluminum planks side by side, upside
down, on a flat surface to form the tabletop. Slide
the metal caps onto each end. One end cap
covers the three planks. The pre-drilled holes of the
end cap should be facing up. Use the power drill
and two self-tapping
screws to secure
each metal end
cap onto each
end of the tabletop.
Loosely attach the
center support brace,
centered, onto the
middle tabletop plank
using two hold-down
clips, two 5/16" flange
nuts and two 5/16"
carriage bolts.
(See Figure 1)
PAGE 1 OF 2
1-800-295-5510
uline.com
Socket Wrench
5/16" x 1½" Carriage Bolts x 22
5/16" Flange Nuts x 22
AssEMBLY INsTRUCTIONs
Center Support Brace
Hold Down Clip
Figure 1
PARTs
3/8" x 1⁄" Hex Head Bolts x 3
3/8" Flange Nuts x 3
Center Support Brace x 1
Diagonal Brace x 2
2. For the seats lay two aluminum
planks upside down on a flat
surface. Slide the plastic end caps
onto each end of the planks. The
pre-drilled holes of the end cap
should be facing up. Use a power
drill and two self-tapping screws to
secure each end cap onto each
end of the plank.
(See Figure 2)
3. Loosely attach both
diagonal braces to
both leg frames using
one 3/8" flange nut
and one 3/8" hex head
bolt per leg frame.
(See Figure 3)
Metal End Cap
Leg Frame x 2
Hold Down Clips x 22
3/16" Self-Tapping
Screws x 12
Figure 3
Figure 2
Diagonal
Brace
1212 IH-3745
