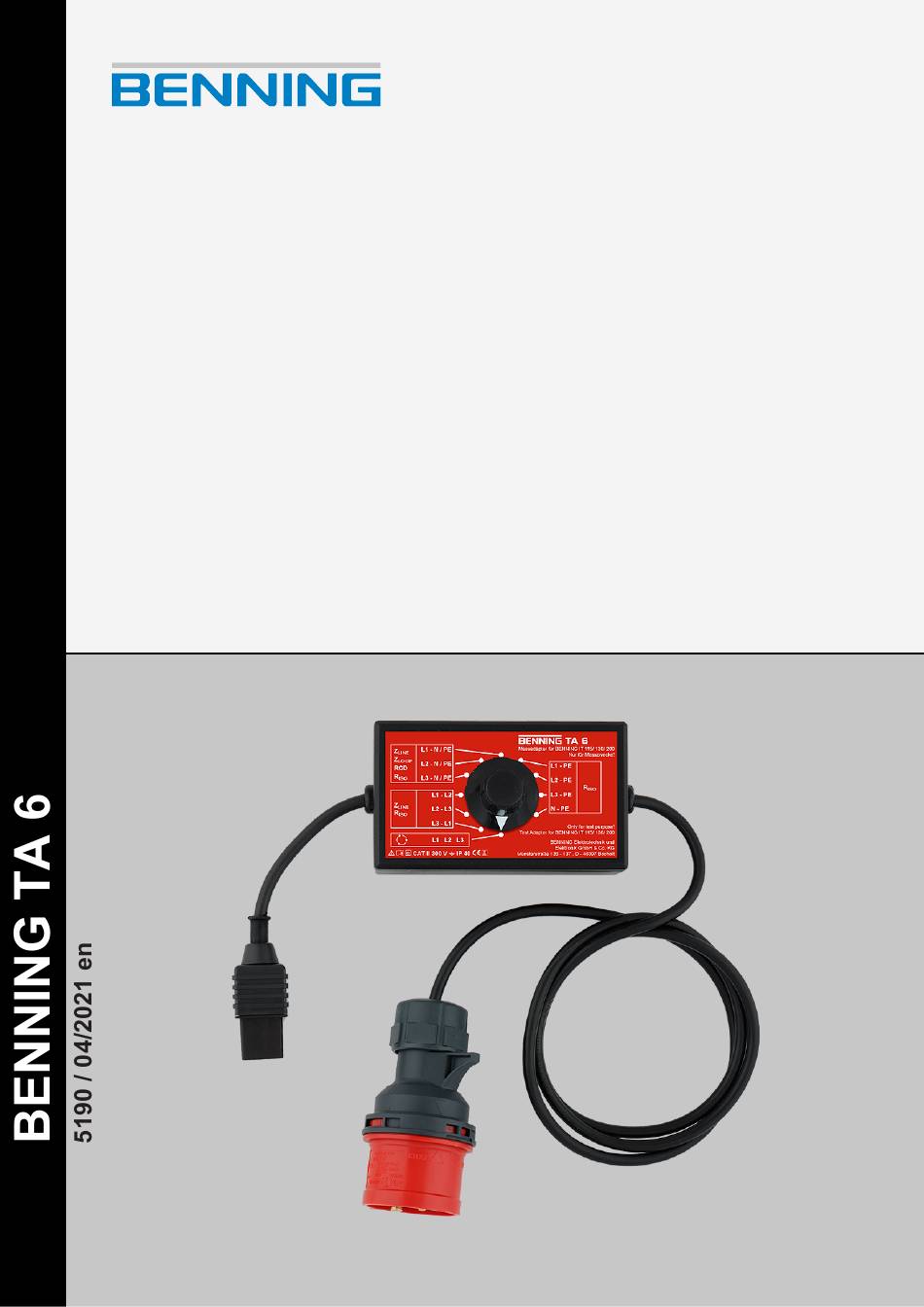

- Page 1 Operating manual Translation of the German original version...
- Page 2 General non-discrimination Benning is aware of the importance of language with regard to the equality of men and women, and endeavours to take this into account at all times. To improve readability, we have refrained from consistently using differentiating formulations.
-
Page 3: Table Of Contents
Special types of risks ...................... 12 Scope of delivery ............................. 13 Device description........................... 14 Device structure ........................ 14 Functions.......................... 15 Operation.............................. 16 Testing with an installation tester .................. 16 Maintenance ............................. 17 Cleaning the device...................... 17 Technical data............................ 18 Disposal and environmental protection .................... 19 Index ................................. 20 5190 / 04/2021 en BENNING TA 6... - Page 4 Table of figures Table of figures Figure 1 BENNING TA 6 device structure ...................... Figure 2 Switch positions of the BENNING TA 6 .................... Figure 3 Connecting the BENNING TA 6......................BENNING TA 6 5190 / 04/2021 en...
- Page 5 List of tables List of tables Table 1 History............................... Table 2 Symbols on the device........................Table 3 Symbols used in the operating manual..................... Table 4 Technical data ..........................5190 / 04/2021 en BENNING TA 6...
-
Page 6: Introduction
DIN VDE 0100‑600 (IEC 60364‑6) and DIN VDE 0105‑100 (EN 50110) using the corresponding installation tester. The device ensures safe contact between the BENNING installation tester and the 5-pin 16 A CEE socket (3P / N / PE, 400 V, 50 Hz) of the electrical installation. The device supports the following measurements: •... -
Page 7: History
Information in this operating manual can be changed at any time without prior notice. Benning is not obligated to make amendments to this operating manual or to keep it up to date. -
Page 8: Service & Support
Phone: +49 2871 93-555 Fax: +49 2871 93‑6555 E-Mail: helpdesk@benning.de Internet: www.benning.de Returns management Easily and conveniently use the BENNING returns portal for a quick and smooth returns processing: https://www.benning.de/service-de/retourenabwicklung.html Phone: +49 2871 93-554 E-Mail: returns@benning.de Return address BENNING Elektrotechnik und Elektronik GmbH & Co. KG Retourenmanagement Robert-Bosch-Str. -
Page 9: Safety
In addition, a warning about personal injuries can also include a warning about material damage. Standards applied The device has been built and tested in compliance with the following standards and has left the factory in perfectly safe condition. • IEC / DIN EN 61010-031 (VDE 0411‑031) 5190 / 04/2021 en BENNING TA 6... -
Page 10: Symbols Used
Table 2: Symbols on the device Symbols used in the operating manual Symbol Meaning General warning Warning of electric voltage! (AC) alternating voltage or alternating current Earth (voltage to earth) Table 3: Symbols used in the operating manual BENNING TA 6 5190 / 04/2021 en... -
Page 11: Intended Use
• Observe relevant regulations on occupational safety and health as well as those on environmental protection. • The device may only be used in dry environments. • Use the device exclusively for measuring purposes with the BENNING IT 115, IT 130 and IT 200 installation testers. In addition, observe the operating manual of the installation tester. -
Page 12: Special Types Of Risks
Even low voltages from 30 V‑AC and 60 V‑DC on can be dangerous to human life! • Please observe relevant regulations on occupational safety and health. • If necessary, use appropriate protective equipment. BENNING TA 6 5190 / 04/2021 en... -
Page 13: Scope Of Delivery
Scope of delivery 2.5 Special types of risks Scope of delivery The scope of delivery of the device includes the following components: • 1 x BENNING TA 6 measuring adapter • 1 x operating manual 5190 / 04/2021 en BENNING TA 6... -
Page 14: Device Description

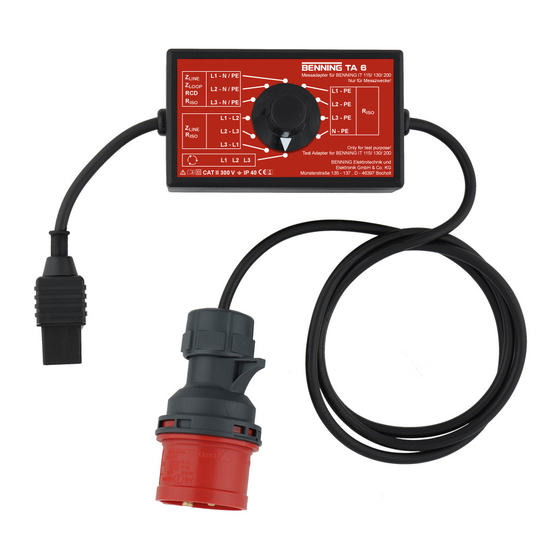

Device description 4.1 Device structure Device description Device structure Figure 1: BENNING TA 6 device structure 1 Housing 2 Rotary switch 3 Test cable 4 16 A CEE plug (3P / N / PE, 400 V, 50 Hz, 5‑pin) 5 Connecting plug 6 Connecting cable BENNING TA 6 5190 / 04/2021 en... -
Page 15: Functions
(L1‑N, L2‑N, L3‑N, L1‑L2, L2‑L3, L3‑L1) LINE • RCD testing • Phase sequence test, voltage and frequency measurements Switch positions Figure 2: Switch positions of the BENNING TA 6 1 Rotary switch 2 4 switch positions for insulating resistance measurement R (L1‑PE, L2‑PE, L3‑PE, N‑PE) 3 1 switch position for phase sequence... -
Page 16: Operation
You can perform tests with an installation tester. Testing with an installation tester Requirements • Installation tester BENNING IT 115, IT 130 or IT 200 • Please observe the operating manual of the installation tester used (especially the safety instructions and warnings contained therein). -
Page 17: Maintenance
Using the wrong cleaning agents can damage the device. • Do not use any solvents, abrasives or polishing agents. Procedure Clean the exterior of the device with a clean and dry cloth or a special cleaning cloth. 5190 / 04/2021 en BENNING TA 6... -
Page 18: Technical Data
Short-term use (no continuous operation) Max. barometric altitude 2 000 m Operating temperature 0 … 40 °C Max. relative air humidity 95 % RH (0 … 40 °C), non-condensing Storage Ambient temperature -10 … 70 °C Max. relative air humidity 90 % RH (-10 … 40 °C) 80 % RH (40 … 60 °C) 70 % RH (60 … 70 °C) Table 4: Technical data BENNING TA 6 5190 / 04/2021 en... -
Page 19: Disposal And Environmental Protection
Disposal and environmental protection 6.1 Cleaning the device Disposal and environmental protection At the end of product life, dispose of the unserviceable device via appropriate collecting facilities provided in your community. 5190 / 04/2021 en BENNING TA 6... -
Page 20: Index
Index Index Service & Support Technical support 8 Basic knowledge 6 Standards applied 9 BENNING TA 6 6 Switch positions 15 Symbols Device 10 Operating manual 10 Cleaning 17 Copyright 2 TA 6 6 Target group 6 Device Technical data 18... - Page 21 5190 / 04/2021 en BENNING TA 6...
- Page 22 BENNING Elektrotechnik und Elektronik GmbH & Co. KG Münsterstraße 135 - 137 D - 46397 Bocholt Phone: +49 2871 93-0 Fax: +49 2871 93-429 Internet: www.benning.de E-Mail: duspol@benning.de BENNING TA 6 5190 / 04/2021 en...
