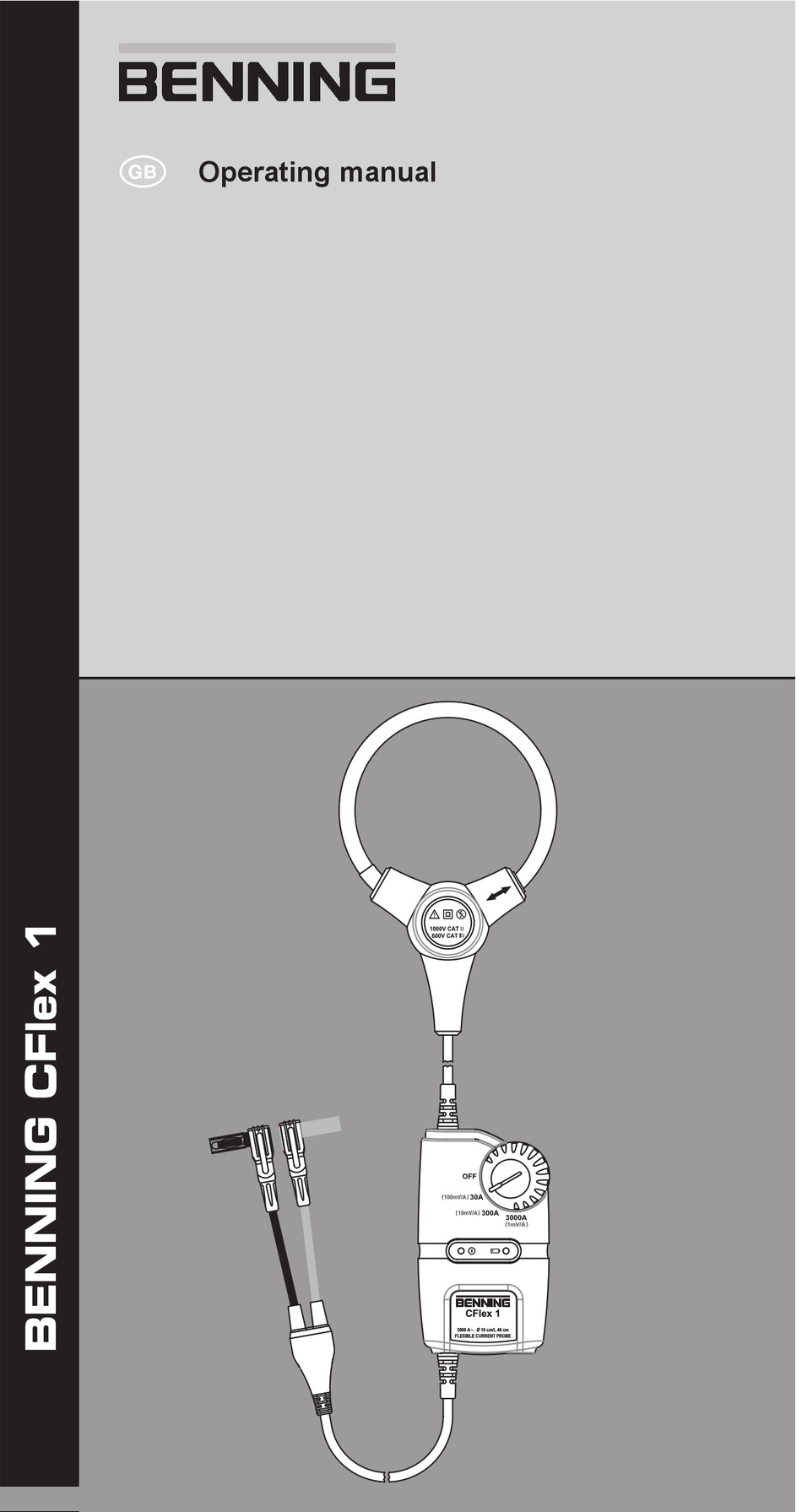

Page 1: Operating Manual
Operating manual CFlex 1 3000 A Ø 16 cm/L 46 cm FLEXIBLE CURRENT PROBE... - Page 2 Voorzijde van het apparaat Fig. 1: Partie avant de l‘appareil Rys. 1: Panel przedni przyrządu Fig. 1: Parte frontal del equipo Рис. 1: Вид спереди Obr. 1: Přední strana přístroje Resim 1: Cihaz önyüzü Σικόνα 1: Μπροστινή όψη BENNING CFlex 1 07/ 2014...
- Page 3 Pomiar prądu przemiennego Fig. 2 b: Medición de corriente alterna Рис. 2 b: Измерение величины переменного тока obr. 2 b: Měření střídavého proudu Resim 2 b: Alternatif akım ölçümü Σικόνα 2 b: Μέτρηση εναλλασσόμενης έντασης ρεύματος BENNING CFlex 1 07/ 2014...
- Page 4 Vervanging van de batterij Fig. 4: Remplacement de la pile Rys. 4: Wymiana baterii Fig. 4: Cambio de pila Рис. 4: Замена батареи Obr. 4: Výměna baterie Resim 4: Batarya değişimi Σικόνα 4: Αντικατάσταση μπαταριών BENNING CFlex 1 07/ 2014...
- Page 5 The BENNING CFlex 1 is intended for making measurements in dry environment. It must not be used in power circuits with a nominal voltage higher than 600 V AC CAT III/ 1000 V AC CAT II (More details in Section 6.
- Page 6 The rotary switch is intended for selecting the measuring ranges of 30 A, 300 A and 3000 A AC. 5.1.2 The BENNING CFlex 1 is supplied by means of two 1.5 V batteries of type AAA (IEC LR03). 5.1.3 If the battery voltage falls below the specified operating voltage of the BENNING CFlex 1, the red LED (battery indication) 6 lights.
-
Page 7: Ambient Conditions
Do not clamp a live conductor with by means of the measuring loop before the BENNING CFlex 1 is connected with a multimeter. Strong sources of interference in the vicinity of the BENNING CFlex 1 might involve unsta- BENNING CFlex 1... - Page 8 Do not exceed the maximum permitted voltage with respect to earth potential! Electrical danger! The highest voltage that may be applied to the BENNING CFlex 1 with respect to earth potential is 600 V CAT III / 1000 V CAT II.
- Page 9 Before opening the BENNING CFlex 1, make sure that it is free of voltage! Electrical danger! The BENNING CFlex 1 is supplied by means of two 1.5 V batteries of type AAA (IEC LR03). Battery replacement (see figure 4) is required, if the red LED (battery indication) 6 lights.
- Page 10 Benning Elektrotechnik & Elektronik GmbH & Co. KG Münsterstraße 135 137 D 46397 Bocholt Telefon ++49 (0) 2871 93 0 • Fax ++49 (0) 2871 93 429 www.benning.de • eMail: duspol@benning.de...
