- Page 1 NS4702-24P-4S-4X Quick Start Guide P/N 1072831 • REV 00.01 • ISS 14JUL14...
- Page 2 Copyright © 2014 United Technologies Corporation Interlogix is part of UTC Building & Industrial Systems, Inc. a unit of United Technologies Corporation. All rights reserved. Trademarks and The NS4702-24P-4S-4X name and logo are trademarks of United patents Technologies. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Table of Contents 1. PACKAGE CONTENTS ..............................4 2. REQUIREMENTS ................................5 3. TERMINAL CONNECTION ............................6 4. LOGON TO CONSOLE ..............................7 5. CONFIGURING IP ADDRESS ............................7 6. STARTING WEB MANAGEMENT ..........................10 7. SAVING CONFIGURATION ............................13 8. -
Page 4: Package Contents

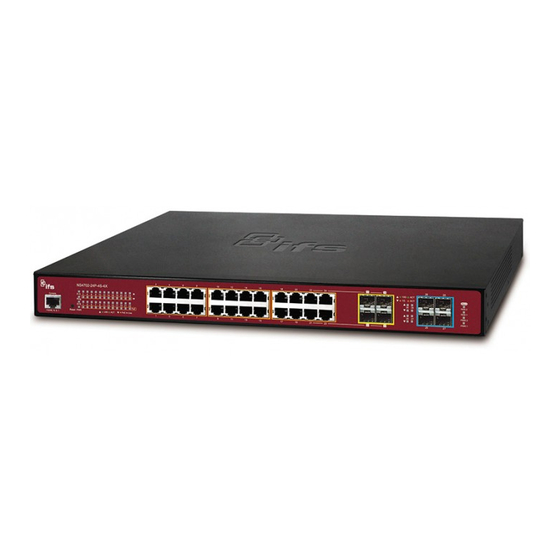

1. Package Contents Thank you for purchasing NS4702-24P-4S-4X , L2+ 24-Port 10/100/1000Mbps 802.3at PoE + 4-Port 10G SFP+ Managed Switch with Hardware Layer3 IPv4/IPv6 Static Routing, NS4702-24P-4S-4X. “Managed Switch” mentioned in this Guide refers to the NS4702-24P-4S-4X. Open the box of the Managed Switch and carefully unpack it. The box should contain the following items: ... -
Page 5: Requirements
2. Requirements • Workstations running Windows XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. • Workstations are installed with Ethernet NIC (Network Interface Card) • Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS-232 converter. ... -
Page 6: Terminal Connection
3. Terminal Connection To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ-45 type of serial (console) port of the Managed Switch. Figure 3-1 Managed Switch Console Connectivity A terminal program is required to make the software connection to the Managed Switch. Windows' Hyper Terminal program may be a good choice. -
Page 7: Logon To Console
4. Logon to Console Once the terminal is connected to the device, power on the Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks to log-in user name and password. The factory default user name and password are shown as follows and the login screen in Figure 4-1 appears. - Page 8 At the “#” prompt, enter the following command and press <Enter> as shown in Figure 5-2. NS4702-24P-4S-4X# configure terminal NS4702-24P-4S-4X(config)# interface vlan 1 NS4702-24P-4S-4X(config-if-vlan)# ip address 192.168.1.100 255.255.255. The previous command would apply the following settings for the Managed Switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0...
- Page 9 Figure 5-3: Saving Current Configuration Command Screen If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Managed Switch through the new IP address. If you are not familiar with the console command or the related parameter, enter “help”...
-
Page 10: Starting Web Management
6. Starting Web Management The following shows how to start up the Web Management of the Managed Switch. Note the Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set on the same IP subnet address. For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0. - Page 11 Logging in the Managed Switch Use Internet Explorer 8.0 or above Web browser and enter IP address http://192.168.0.100 (the factory default IP address or the one that you have just changed in console) to access the Web interface. When the following dialog box appears, please enter the default user name and password “admin” (or the password you have changed via console).
- Page 12 Figure 6-3: Web Main Screen of Managed Switch The Switch Menu on the left of the Web page let you access all the commands and statistics the Managed Switch provides. Figure 6-4: Switch Menu Note: If you are not familiar with Switch functions or the related parameter, press “Help icon”...
-
Page 13: Saving Configuration
get the help description. Now, you can use the Web management interface to continue the Switch management or manage the Switch by console interface. Please refer to the user’s manual for more. 7. Saving Configuration In the Managed Switch, the running configuration file is stored in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by executing save startup config command, so that the running configuration sequence becomes the startup configuration file, which is called configuration save. - Page 14 Press the “Save Configuration” button. - 14 -...
-
Page 15: Recovering Back To Default Configuration
To reset the IP address to the default IP Address “192.168.0.100” or reset the login password to default value, press the hardware reset button on the front panel for about 10 seconds. After the device is rebooted, you can login the management WEB interface within the same subnet of 192.168.0.xx. Figure 8-1: NS4702-24P-4S-4X Reset Button -15-... -
Page 16: Customer Support
9. Customer Support Thank you for purchasing INTERLOGIX products. You can browse our online FAQ resource on the INTERLOGIX website first to check if it could solve your issue. If you need more support information, please contact INTERLOGIX.com/support for the support team.
