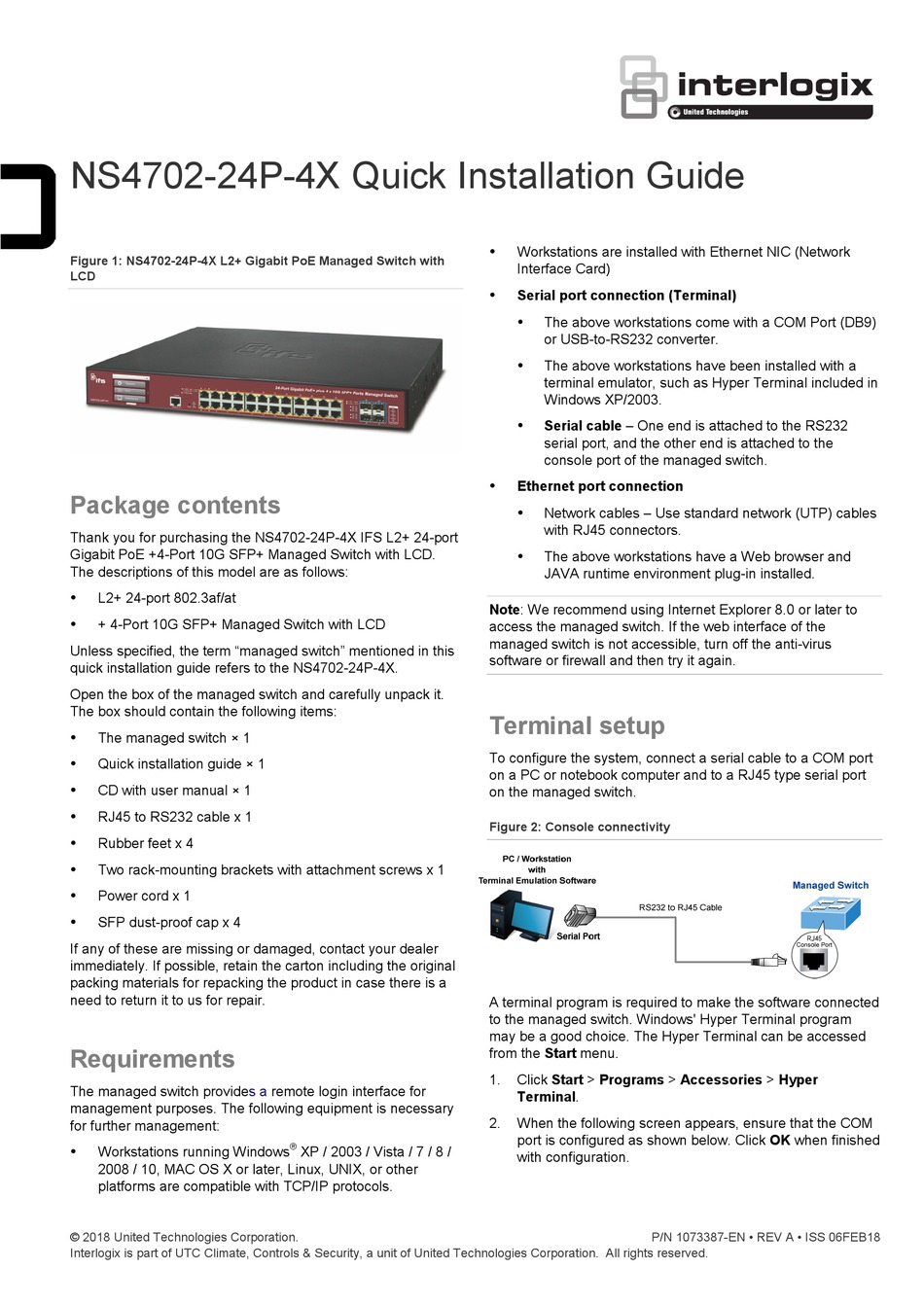

NS4702-24P-4X Quick Installation Guide
Figure 1: NS4702-24P-4X L2+ Gigabit PoE Managed Switch with
LCD

Package contents

Thank you for purchasing the NS4702-24P-4X IFS L2+ 24-port
Gigabit PoE +4-Port 10G SFP+ Managed Switch with LCD.
The descriptions of this model are as follows:
L2+ 24-port 802.3af/at

+ 4-Port 10G SFP+ Managed Switch with LCD

Unless specified, the term "managed switch" mentioned in this
quick installation guide refers to the NS4702-24P-4X.
Open the box of the managed switch and carefully unpack it.
The box should contain the following items:
The managed switch × 1

Quick installation guide × 1

CD with user manual × 1

RJ45 to RS232 cable x 1

Rubber feet x 4

Two rack-mounting brackets with attachment screws x 1

Power cord x 1

SFP dust-proof cap x 4

If any of these are missing or damaged, contact your dealer
immediately. If possible, retain the carton including the original
packing materials for repacking the product in case there is a
need to return it to us for repair.
Requirements
The managed switch provides a
management purposes. The following equipment is necessary
for further management:
Workstations running Windows

2008 / 10, MAC OS X or later, Linux, UNIX, or other
platforms are compatible with TCP/IP protocols.
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
remote login interface for
®
XP / 2003 / Vista / 7 / 8 /
Workstations are installed with Ethernet NIC (Network

Interface Card)
Serial port connection (Terminal)

The above workstations come with a COM Port (DB9)

or USB-to-RS232 converter.
The above workstations have been installed with a

terminal emulator, such as Hyper Terminal included in
Windows XP/2003.
Serial cable – One end is attached to the RS232

serial port, and the other end is attached to the
console port of the managed switch.
Ethernet port connection

Network cables – Use standard network (UTP) cables

with RJ45 connectors.
The above workstations have a Web browser and

JAVA runtime environment plug-in installed.
Note: We recommend using Internet Explorer 8.0 or later to
access the managed switch. If the web interface of the
managed switch is not accessible, turn off the anti-virus
software or firewall and then try it again.

Terminal setup

To configure the system, connect a serial cable to a COM port
on a PC or notebook computer and to a RJ45 type serial port
on the managed switch.
Figure 2: Console connectivity
A terminal program is required to make the software connected
to the managed switch. Windows' Hyper Terminal program
may be a good choice. The Hyper Terminal can be accessed
from the Start menu.
1. Click Start > Programs > Accessories > Hyper
Terminal.
2. When the following screen appears, ensure that the COM
port is configured as shown below. Click OK when finished
with configuration.
