Before operating this unit, please read these instructions completely.
Antes de utilizar esta unidad, lea compleatamente estas instrucciones y
guárdelas para referencia futura.
Avant d'utiliser cet appareil, nous vous recommandons de lire l'ensemble
de ces instructions et de les ranger dans un endroit accessible pour une
consultation ultérieure.
Operating Instructions

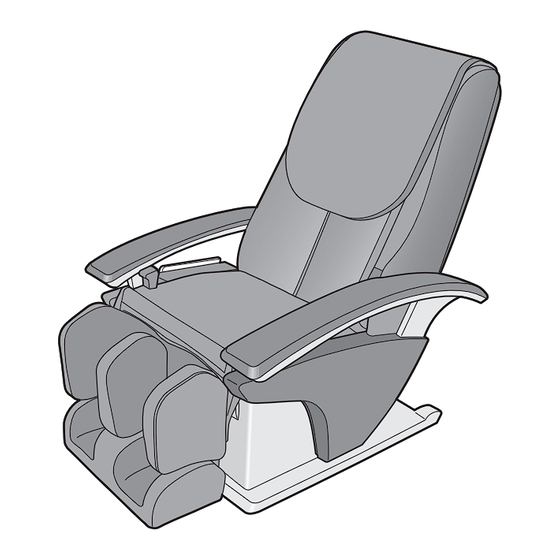

Household Massage Lounger
Sillón de Masaje Doméstico
Model No./Nº de modelo/Nº de modèle
1
S1
F1
Instrucciones de Uso
Mode d'emploi
Fauteuil vibromasseur
EP-MA20
Advertisement
Table of Contents
Related Manuals for Panasonic EP-MA20KU
Summary of Contents for Panasonic EP-MA20KU
- Page 1 English Español Français Before operating this unit, please read these instructions completely. Antes de utilizar esta unidad, lea compleatamente estas instrucciones y guárdelas para referencia futura. Avant d’utiliser cet appareil, nous vous recommandons de lire l’ensemble de ces instructions et de les ranger dans un endroit accessible pour une consultation ultérieure.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed when using an electrical unit, including the following. Please ensure that you read all instructions before using the Household Massage Lounger. DANGER – To reduce the risk of electric shock: 1. Always unplug this unit from the electrical outlet immediately after using and before cleaning. WARNING –... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS CAUTION: To avoid the risk of injury: 1. Persons with any of the conditions listed below or who are undergoing medical treatment or suffer from medical conditions should consult with their physicians before using the unit: a) Pregnant women, people who are ill, in poor physical shape. b) People suffering from back, neck, shoulder, or hip pain. -
Page 4: Operating Precautions
11. Do not sit on the chair with wet body or hair. 12. The unit must not be used in “wet rooms” (sauna, swimming pool) or outdoors. 13. Do not attempt to open or disassemble any part of the unit. Only use an authorized Panasonic servicer to fix your unit. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 6: Part Names And Functions
Part names and functions Main unit Retracted position of massage heads Pillow Back Cushion Backrest • Includes integrated massage heads. Armrest Seat Front Leg/Sole massage section • Includes air massage function. Sole Reflexology Plates • “Creepers” are provided on the back side. • Fine adjustment of position possible. • Removable. Legrest Legrest Slide Lever •... - Page 7 Back Cover Controller tray Controller • See page 7 to 8. Child Safety Decal Power Supply Box Lock Switch Power Switch Lock Switch Key Lock Switch Key Tag • For preventing children from swallowing it by accident. • Lock switch is set to “open” and power switch is set to “on” prior to leaving the factory.
- Page 8 Controller Cover closed Cover open Off/On button Program Selection buttons • See page 16. Massage intensity adjustment dial • Intensity of the massage (pressure of the massage heads pressing onto the body) can be adjusted. Region Off/On button • See page 18. User Memory Registration button See page 20. • Manual Operation Selection button •...
- Page 9 Time Remaining Display (During massage) (After finishing massage) Massage Intensity Display • Current massage intensities (pressure of the massage heads pressing onto the body) for each region are displayed in 8 steps. Display Operation Display • Current massage operation is displayed while massaging. • Currently selected operation is displayed when Manual Operation is selected.
-
Page 10: Setting Up The Massage Lounger
Setting up the massage lounger 1 Where to use the unit • Ensure there is adequate space to recline. • Do not expose the massage lounger to direct sunlight or high temperatures, such as in front of heating sources, because this can cause discoloration or hardening of the synthetic leather. •... - Page 11 Confirm that the main unit and the accessories are in the box. Main unit Accessories Armrests (Right/Left) Right/Left indication • Small holes on the inside fabric are an intentional part of the functional design. Controller Tray Attachment Screw Cap 4 pcs. Lock Switch Key • This is initially inserted in the lock switch of the power supply box prior to leaving the factory. Controller Back Cushion Pillow...
- Page 12 Assembly 1 Attaching the armrests (On both the right and left sides) Insert the armrest into the unit. • Be careful to avoid pinching your fingers. Align the position. Fit in the grooves and protrusions in the front and back of the unit and armrest simultaneously. Fasten the armrest with the attachment screws. (4 positions) How to tighten the screws Hole • Tighten loosely with your finger. (Make the screws level with the holes.) Mount the attachment screw caps. 2 Raising the backrest to the upright position Insert the power plug into the power outlet. Front Groove Protrusion Right/Left indication Main unit Attachment screw...
- Page 13 Confirm the lock switch key is set to the “open” position. Confirm the power switch is set to the “on” position. Press button on the controller twice. • Press once, and then press again approx. 1 second later. The backrest will rise to the upright position automatically. 3 Mount the controller tray on the right side • Mount it on the left side if the right side will be next to the wall or similar. If you want to mount the controller on the left side Press the button on the controller to turn on the...
- Page 14 4 Attaching the controller Fasten the cord to the groove at the bottom of tray. 5 Attaching the back cushion Attach the back cushion to the velcro fasteners on the unit. Back Cushion 6 Attaching the pillow Attach the pillow to the velcro fasteners. • See page 29 for a guide to the position of the pillow. Place the controller onto the controller tray. Velcro fasteners Pillow Velcro fasteners...
-
Page 15: Before Sitting Down
Before sitting down Check the following before using the unit 1 Check the surrounding area Make sure there are no objects, people, or pets in the vicinity of the unit. 2 Check the power cord and the power plug See Warning No. 8 on page 1. 3 Switching on the power supply Insert the power plug into an electrical outlet. Turn the lock switch key to the “open” position. Slide the power switch to the “on” position. 4 Check the unit Make sure there are no tears or rips in the fabric. See Caution No. 14 on page 3. Back cushion Fabric Backrest... - Page 16 Make sure there is no foreign matter between the unit. See Caution No. 15 on page 3. Make sure the massage heads are in the retracted position. When the massage heads are not in the retracted position Press the button twice to return the massage heads to the retracted position. See Caution No. 3 on page 2. Make sure the legrest is in the fully lowered position. To lower the legrest Make sure the legrest has fully returned to the original position by pulling the legrest slide lever, and then press the See Caution No.
-
Page 17: When You Want A Complete Massage
When you want a complete massage Auto program Characteristics of Auto program (upper body) SWEDISH Uses mainly Swedish massage to gently invigorate and promote circulation. Recommended for those experiencing fatigue and weariness. • See page 19 for an overview of the respective programs. Persons whose height is less than 55 in. (140 cm) or more than 72.8 in. (185 cm) are recommended to use the unit in the manner described below when the massage heads do not touch their shoulders. - Page 18 Body scanning will commence when the program is selected. • The body scanning will properly detect height ranges between approximately 55 and 72.8 in. (140 and 185 cm). Sit as far back in the seat as possible with your head on the pillow. Adjust the pillow height so that the bottom edge of the pillow is at ear level. See page 29. NECK (Neck) S HOULDER (Shoulder) Approximately 30 seconds after the body scanning starts, the massage heads slowly lower to the shoulder position, and a soft tapping action begins to determine your shoulder position. Massage Head Tapping action Confirm that the shoulder position has been correctly determined according to the position of the soft tapping. • When the shoulder position is incorrect, adjust the shoulder position while the soft tapping is in progress (for approximately 15 seconds), and use the POSITION button to move the massage heads up or down.
- Page 19 To customize 1 A djusting the intensity of massage for neck, shoulder, back, or lower back Intensity of the massage for current position can be adjusted by turning the dial on the controller. • For Auto program Intensity Sensor will function. Movement of the massage head is adjusted automatically so the pressure of the massage head pressing the body stays same even if the curve or position of the body shifts.
- Page 20 3 A djusting the reclining angle and legrest to massage in relaxing position To adjust the reclining angle and the legrest angle: Adjust by pressing • See pages 28 to 29 for description on how to adjust the reclining angle, the legrest, and the pillow. 4 S etting the off/on of the Leg/Sole air massage, or off/on of the Leg Stretch Open the bottom cover of the controller and: Turning the operation Off/On can be done with the (Off: button lamp off, On: button lamp on) Intensity of the air can be adjusted in 5 steps with the Contents of the Auto program Swedish Program 1) Ultra knead/ 2) Ultra knead/...
- Page 21 When you want to register the Auto program with intensity of massage adjusted to your preference User Memory Program Press the Flash Press the button you want to register from , or Settings that can be registered • Intensity for each position • Off/on of the Neck/Shoulder and Back/Lower back • Off/on and the intensity of the air massage • Off/on of the Leg Stretch * Setting at the point when registered.
- Page 22 To start the registered program Press the power. The registered button will flash. Select your favorite program. Press Massage for the registered program will start after the body scanning. To change and overwrite the registered settings Press To delete the registered settings Press the The registered button will flash. Press the button you want to delete for more than 3 seconds. Press again if only the pressed button changes to flashing. Press button to turn on the button. button to turn on the power. Press Delete is completed once the flashing stops.
-
Page 23: Manual Operation
When you want a concentrated massage of a particular body part with a specific massage mode, such as “Kneading on the Neck” or “Tapping on the Shoulder” Manual Operation Press the button to turn on the power. • The power will turn off automatically if the massage does not start within 3 minutes after turning on the power. Open the cover. Select the part of body you want to massage ( • You can select an action combined with “FULL ROLL” by pressing button. - Page 24 Body scanning for Manual Operation Neck/Shoulder/Full roll... Normal body scanning. Back/Lower back ... Simple body scanning. (The massage heads will not come up to the shoulder position.) To change an action in the middle of a massage Select your favorite one again in Steps • Press the button within approximately 30 seconds after reselecting an action in Step be cancelled automatically. To customize to 1 Adjusting the intensity of the massage...
- Page 25 3 Adding tapping actions to the current operation Press the button. • Select with steps 3 to 5 on page 22 if you only want the tapping actions to be performed. 4 Fine adjustment of the position It can be adjusted with the 5 U sing Leg/Sole air massage and/or Leg Stretch together Turning the operation Off/On can be done with the (Off: button lamp off, On: button lamp on) Intensity of the air can be adjusted in 5 steps with the Details regarding the manual operation ULTRA KNEAD SHIATSU Kneading action at small Action compressing muscle...
-
Page 26: Air Massage
When you want to perform Leg/Sole air massage and/or Leg Stretch Air Massage Press the power. • The power will turn off automatically if the massage does not start within 3 minutes after turning on the power. Open the cover. Select the operation with buttons. (Off: button lamp off, On: button lamp on) Intensity of the air can be adjusted in 5 steps with button. • Intensity of the Leg Stretch cannot be adjusted. - Page 27 Effective method for using the leg/sole massage • See page 27 for details about the operations of the Leg/Sole massage. Adjust the legrest so that your sole fits on it completely. For a person with small body dimensions • If the legrest is raised, it is easier to fit your sole on it. Press the button. It is possible to massage your leg completely by laying the sole section flat. For the sole reflexology plate The plate is removable. Opening For a person with large body dimensions •...
- Page 28 Operations of the Leg/Sole massage and Leg Stretch Operation of the Leg/Sole massage Calves will be compressed by pressure from both sides. Operations of the Leg Stretch After grasping the legs with air, the legs are stretched as the legrest is lowered approximately 10 degrees from the massage position. Lowered by approximately 10° Sole Foot will be compressed from side and bottom using the air. Once the legrest returns to the original angle, the legrest is then lowered approximately 25 degrees to stretch the legs further. While using the unit with it’s legrest slide extended, legrest can hit the floor. Lowered by approximately 25°...
- Page 29 When you want to adjust the reclining angle, legrest, and/or pillow Adjusting the reclining angle and the angle of the legrest Press the button to turn on the power. Press the or button to adjust the angle. • Movement will continue until a “beep-beep-beep” sound is heard if the buttons are held down. • The movement of the legrest may be delayed slightly. Approx. 85˚ Approx. 0˚ • Do not raise or lower the backrest and/or legrest repeatedly for any purpose other than adjusting to your preferred positions. Approx. 120˚...
- Page 30 Sliding the legrest Slide the legrest to your favorite position by pulling the legrest slide lever. [The legrest will slide approximately 4.7 in. (12 cm).] Pull the legrest slide lever back. Push with the soles of your feet to slide the legrest out. Release the legrest slide lever when it reaches your favorite position. Lever will return and lock. Adjusting the pillow for correct height during a massage Remove the pillow. Pillow Lift your soles slightly and legrest returns. Adjust the height of the pillow so that the bottom edge is at ear level. • If positioned too low, the pillow may interfere with a massage of the area around the neck.
-
Page 31: After Completing The Massage
After completing the massage Interrupting the massage Return the legrest to the original position and then press the • The massage heads move to the retracted position. • The legrest lowers and the backrest raises automatically. (The backrest will move after the massage heads retract.) Timer function The massage will complete automatically approximately 15 minutes after the start of operations. • Sole section will retract, and the legrest will be lowered automatically so you can stand up safely. - Page 32 Disconnecting the power See Danger No. 1 on page 1, Caution No. 2 on page 2, and No. 10 on page 3. Slide the power switch to the “off” position. Remove the power plug from the electrical outlet. Turn the lock switch key to the “lock” position. Power supply box The lock switch key must be stored out of the reach of children.
-
Page 33: Cleaning And Maintenance
Cleaning and Maintenance See Danger No. 1 on page 1. Areas covered with synthetic leather Wipe these areas with a soft, dry cloth. • When using the commercially available leather-care products (wipes), follow its instructions. • If the synthetic leather is particularly dirty, wipe it in the following manner. 1. Soak a soft cloth in water or a 3% to 5% solution of mild detergent and wring it out thoroughly. -
Page 34: Moving The Unit
Moving the Unit See Caution No. 16 on page 3. • When moving the unit, lift it with 2 persons, or move it with the wheels after placing a mat or something on the floor, so the floor will not be scratched. You may damage the floor by dragging or pushing the unit while it is still in a state of installment. - Page 35 Using the wheels to move the unit Move the unit by holding onto the fabric section on the underside of the legrest and using the wheels. Hold onto the fabric section on the underside of the legrest Lift it no higher than waist height Place a mat on the floor to avoid damaging the floor. To put the unit down on the floor • Put the unit down slowly and carefully watch your step. • Put down the legrest by holding it with your hands until it has been set on the floor completely. If you release your hands before the legrest is fully extended, the legrest will forcefully return to the initial position.
-
Page 36: Error Display
Error display Contents of the error will be displayed in the remaining time display area when an error occurs during the operation. Error display * P lease contact an authorized service center. Service and maintenance will be easier if the error number is communicated when contacting. Trouble Shooting Problem Cause and Remedy Motor Noises • It sounds and feels like the massage heads are straining to get over wrinkles in the cloth. • There is operational noise of kneading or tapping actions. •... - Page 37 Problem Cause and Remedy The massage heads stop during operation. (All the displays and buttons on the controller will flash and then turn off.) If excessive force is applied to the massage heads during operation, in the interests of safety the massage heads may stop moving. If all markings and buttons on the controller start to flash, which is extremely unusual, turn off the power switch, wait for approximately 10 seconds and then turn the power switch on again.
