Mounting the Device
Flush-rear (recessed) mounting
5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb
(10 cm-kg).
a. Rear brackets, short
b. Screws, 6-32 x 1/4-in., panhead Phillips

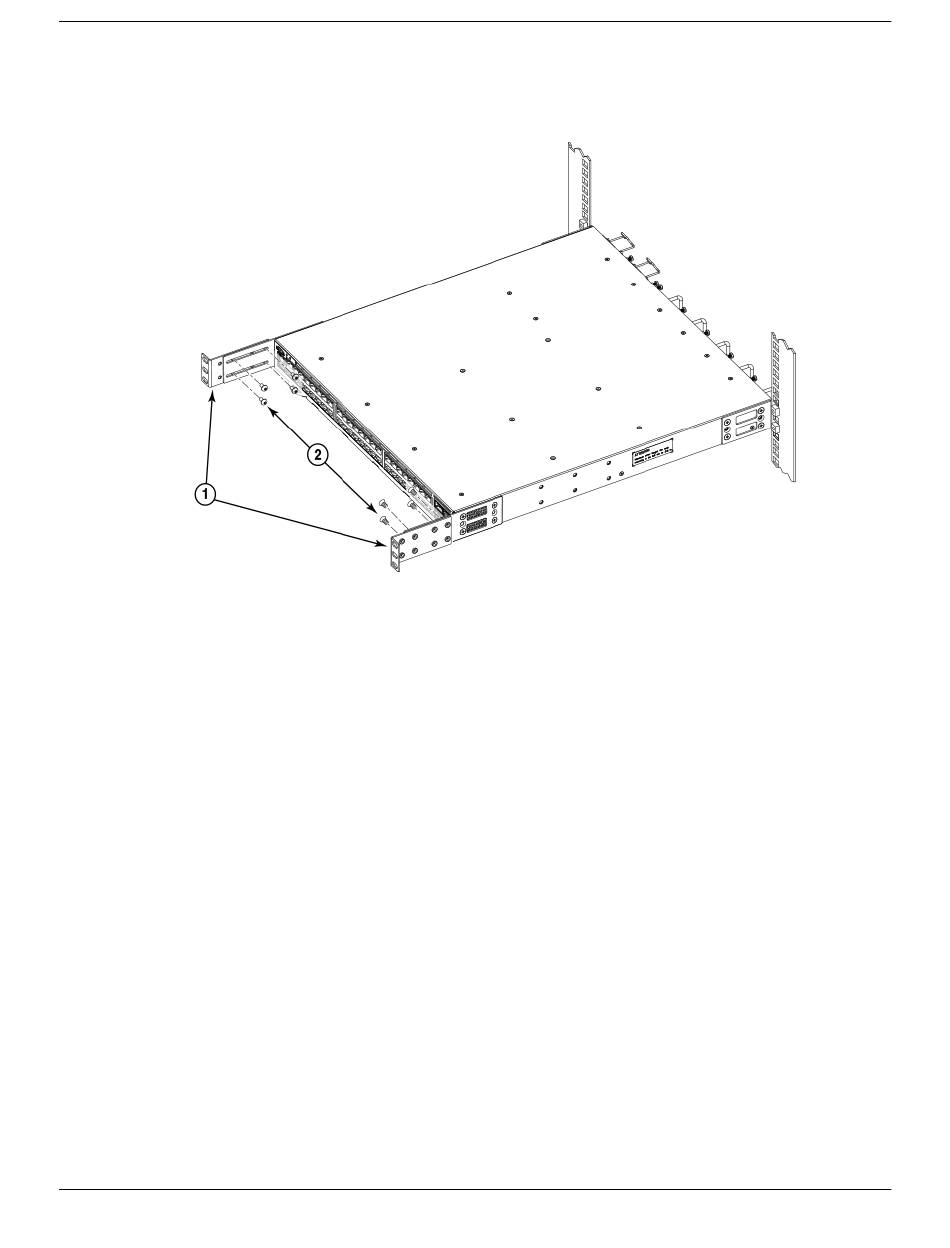

Figure 27: Attaching the rear brackets to the extensions at the front of the device
ExtremeRouting SLX 9640 Hardware Installation Guide
51
