Endress+Hauser Teqwave T Quick Manual

SD02145D/06/EN/01.17
71386262

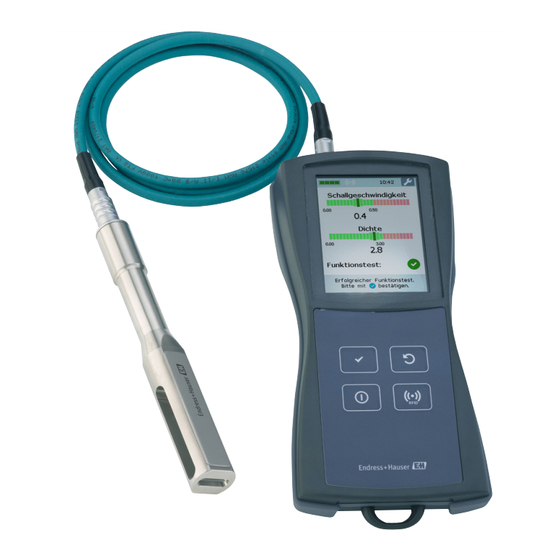

Teqwave T Quick Guide
Technical data
USB port
Connection USB socket, Type B
Supply voltage DC 5 V
Battery
Battery type Lithium ion battery
Capacity 2300 mAh
Charging time
Approx. 2.5 h
Battery life Approx. 8 h, at least 40 measured value recordings
Degree of protection
Sensor IP 68 (with sensor connected)
Sensor
IP 65
Basic safety instructions
• Read and understand the instructions in the Operating Instructions pertaining to
the device.
• Follow instructions and comply with general policies.
• Authorized qualified specialists: trained and familiar with national regulations.
• Non-designated use compromises safety.
• The manufacturer does not accept any liability for damages resulting from improper or
non-designated use.
• Operate the device only if it is in proper technical condition, free from errors and faults.
• Ensure the resistance of all fluid-wetted materials in the process.
• Stay within the specified temperature range.
• Hot fluids can present a burn hazard. Ensure appropriate touch protection at the
handheld sensor.
• Risk of injury from hot sensor when changing the fluid. Consider the flash point of the
liquid to be measured.
• Risk of injury from residue of previous liquids when changing the fluid. Remove all
residue of previous liquids.
• Only release the push-pull connection by pulling the connector out of the socket.
• Potential spread of malicious software: always use anti-virus software when connecting
to a computer.
Operation
Operating options
• Configuration via the „Teqwave Mobile Viewer" operating tool
• Operation via portable transmitter
Operating keys
On/Off Back/Repeat
I
Confirm Enable RFID (not available)
RFID
