Electronic hybrid air conditioner

Advertisement

Model
WS4-06EW-201
WS4-08EW-201
Electronic Hybrid Air Conditioner
Operating Instructions
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
6,000 BTU
8,000 BTU
4010450
V210127

Advertisement

Table of Contents
loading

Summary of Contents for Soleus Air WS4-06EW-201

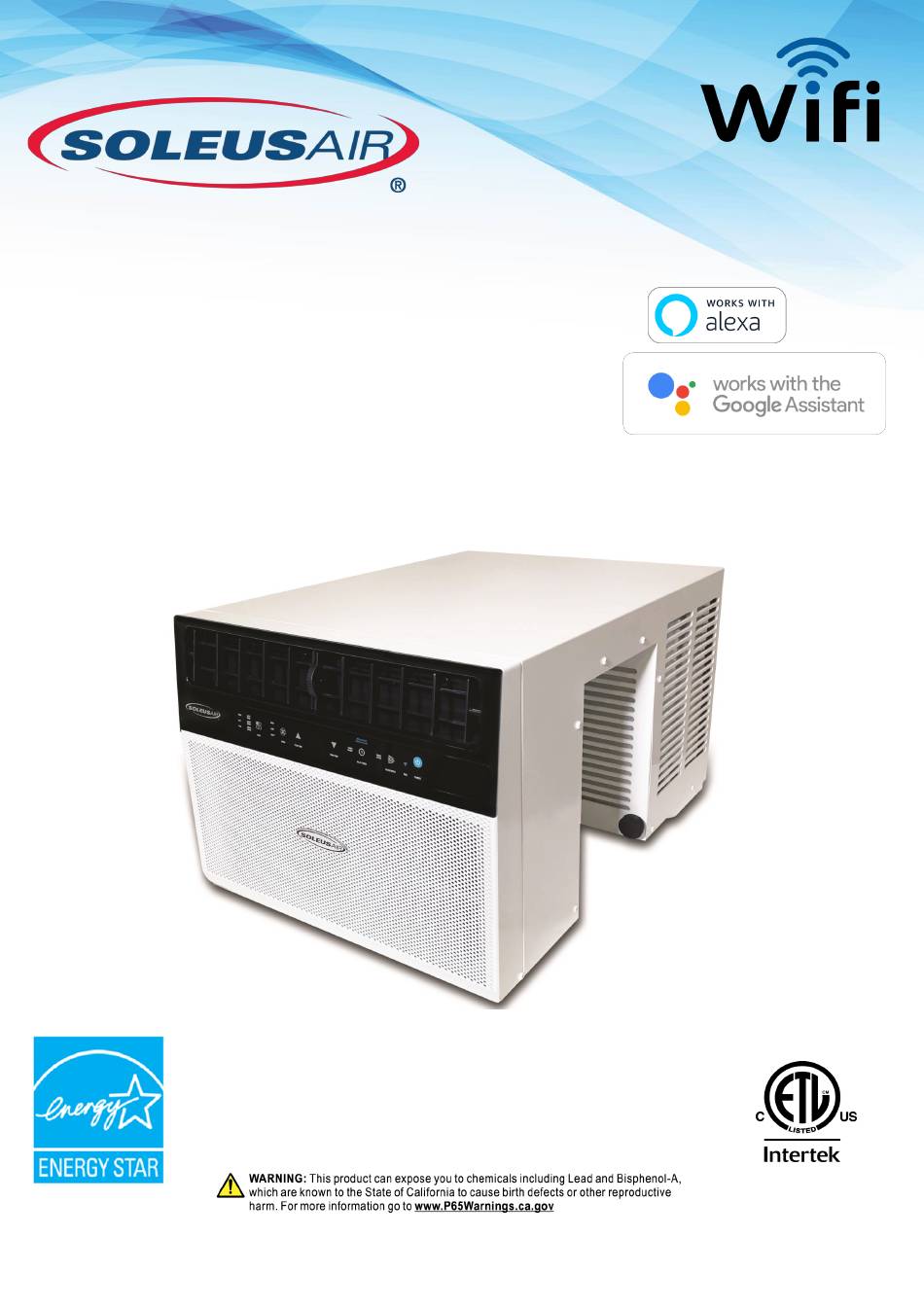

  • Page 1 Model WS4-06EW-201 6,000 BTU WS4-08EW-201 8,000 BTU Electronic Hybrid Air Conditioner Operating Instructions 4010450 V210127 Air conditioner must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.
  • Page 2: Purchase Information

    PURCHASE INFORMATION Thank you for choosing a Soleus Air Hybrid Air Conditioner. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Window Air Conditioner.
  • Page 3: Power Cord And Plug

    POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
  • Page 4: Package Contents

    PACKAGE CONTENTS Hybrid Air Conditioner (1) Pre-installed Adjustable Support Knob (2) • • Remote Control (1) Top Foam Sealer (1) • • AAA Battery (2) Bubble Level (1) • • Window Slider Foam (2) Optional Window Security Bracket • • Mounting Block (2) •...
  • Page 5: Specifications

    Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model WS4-06EW-201 WS4-08EW-201 Power Supply (Ph/V/Hz) 1/115/60...
  • Page 6: Electrical Safety

    ELECTRICAL SAFETY WARNING: grounding prong!! Power supply cord with 3-prong grounding plug and current detection device DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENATION OF THE MANUFACTURER. NEPO USA HAS NOT CONDUCTED AN INDEPENDENT TEST TO VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN.
  • Page 7: Installation

    Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit inside a standard double-hung window. Make sure the window is in good shape. If not, make repairs prior to installing the unit. Model WS4-06EW-201 WS4-08EW-201 Unit Height 15”...
  • Page 8 INSTALLATION 1. Attach Mounting Blocks on Window Frame (See Fig.1) Fig.1 1) Remove adhesive from mounting block and place mounting block on window frame. 2) Press down firmly on the mounting block to secure in place. 3) Then, remove adhesive from the other mounting block and place mounting block on window frame.
  • Page 9: Security Bracket

    INSTALLATION 4. Install Window Sliders 1) Measure the distance between the Hybrid AC and the window sash, cut window slider foams to length by using a utility knife so that it fits inside the opening. (See Fig.5) 2) Slide window slider foams into both support brackets on either side of the Hybrid Air Conditioner. (See Fig.6) Fig.5 Fig.6...
  • Page 10 WIFI APP SETUP Screenshots shown are from an Apple iOS device. Android devices may differ slightly. Step 1 Step 3 Step 2 Search and download Soleus Fill out email address and click the Get Verifi- Register for a new account Home Comfort from the App cation Code button.
  • Page 11: Control Panel

    CONTROL PANEL Electronic Control Panel & Remote Control Note: This control panel display always shows the room temperature in Fan Mode and Dry Mode except when setting the temperature and timer. Auto-On Timer: When the air conditioner is off, it can be set to automatically turn on in 1-24 Normal Operating Sounds hours at the previous set mode and fan settings.
  • Page 12: Remote Control

    REMOTE CONTROL POWER BUTTON UP ARROW (TEMP/TIMER) MODE BUTTON CHILD LOCK BUTTON MYTEMP MODE BUTTON DOWN ARROW (TEMP/TIMER) SLEEP BUTTON TIMER BUTTON FAN SPEED ENERGY SAVER BUTTON AUTO MODE BUTTON Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries.
  • Page 13 OPERATION INSTRUCTIONS 1. ON/OFF - Press the POWER button to turn the A/C on or off. When the unit is turned off, the Timer function will be cancelled. The set temperature will be saved. 2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Cool, Dry (Dehumidifier) and Fan.
  • Page 14: Energy Saver Mode

    USE THE AIR CONDITIONER Freezing Conditions: This is a cooling only air conditioner. It is not designed for freezing outdoor condi- tions. It must not be used in freezing outdoor conditions. Remote Control: To ensure proper operation when using the remote control, aim the remote directly at the signal receiver on the air conditioner.
  • Page 15: Air Filter Cleaning

    USE AND CARE CARE AND CLEANING Clean your air conditioner to keep it looking new and to minimize dust build up. Air Filter Cleaning The air filter should be checked at least once every month to see if it needs cleaning. Trapped particles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost.
  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner plug is pushed completely into the outlet. • Check the main fuse/circuit The fuse is blown/circuit breaker is tripped breaker box and replace the fuse or reset the breaker.
  • Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and humid weather • This is normal Water is dripping inside the room The air conditioner is not • For proper water drainage, make correctly tilted towards the sure the air conditioner is slightly outside tilted downward from the front of the unit to the rear.
  • Page 18: Limited Warranty

    LIMITED WARRANTY One Year Limited Warranty NEPO USA warrants the accompanying Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of One (1) year from the date of original retail purchase in the United States. If the unit exhibits a defect in normal use, NEPO USA will, at its option, either repair or replace it, free of charge within a reasona- ble time after the unit is returned during the warranty period.
