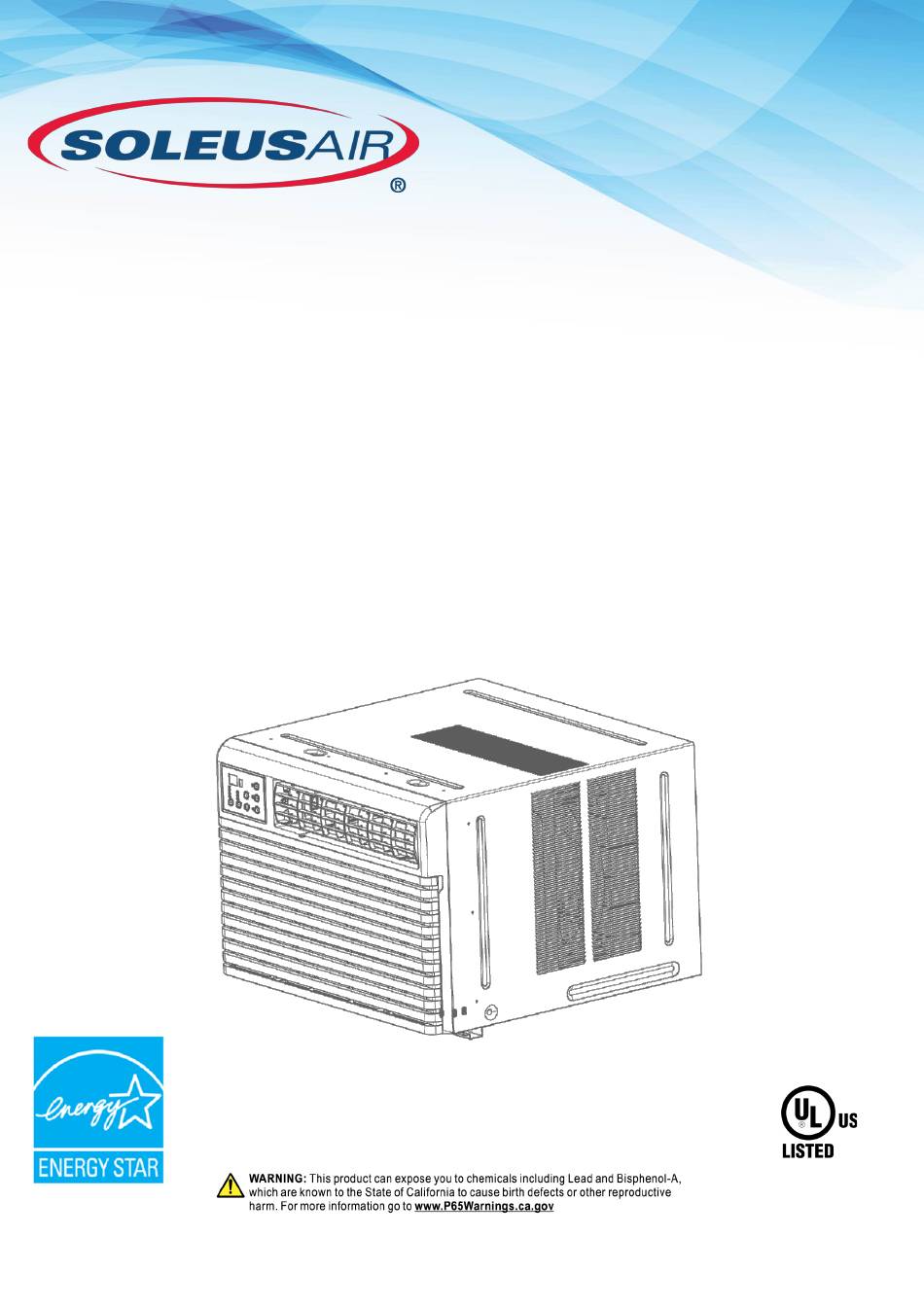

Advertisement
Quick Links
Model
WS2-15E-201
WS2-18E-201
WS2-24E-201
Electronic Window Air Conditioner
Operating Instructions
15,000 BTU
18,300 BTU
24,000 BTU
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
AIR CONDITIONER
2MF3
File No. SA 12793
V181219
Advertisement
Related Manuals for Soleus Air WS2-15E-201
Summary of Contents for Soleus Air WS2-15E-201
- Page 1 Model WS2-15E-201 15,000 BTU WS2-18E-201 18,300 BTU WS2-24E-201 24,000 BTU Electronic Window Air Conditioner Operating Instructions AIR CONDITIONER 2MF3 File No. SA 12793 V181219 Air conditioner must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.
- Page 2 PURCHASE INFORMATION Thank you for choosing a Soleus Air Window Air Conditioner. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Window Air Conditioner.
- Page 3 POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
- Page 4 PACKAGE CONTENTS • • Window Air Conditioner (1) Hardware Bag (1) • • Remote Control (1) Owner’s Manual (1) • • AAA Battery (2) Weather Insulation Board (2) • • Top Mounting Rail (1) Window Sash Seal (1) • • Foam Gasket (1) Window Support Bracket (2) •...
- Page 5 Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model WS2-15E-201 Power Supply (Ph/V/Hz) 1/115/60 Rated Cooling Capacity (BTU/h)
- Page 6 ELECTRICAL SAFETY DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENATION OF THE MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED AN INDEPENDENT TEST TO VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN.
- Page 7 Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the provided screws. If not, make repairs prior to installing the unit. Model WS2-15E-201 WS2-18E-201 / WS2-24E-201 Unit Height 17 3/4"...
- Page 8 INSTALLATION INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING REMOVE CHASSIS Pull down the front panel and remove the filter (See Fig. 3). Lift the front panel upwards to remove and place to the side. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air condi- tioner (See Fig.
- Page 9 INSTALLATION Curtain Installation Top Mounting 1. Attach the top mounting rail to Rail the unit with short screws (Fig.8). Fig. 8 Fig. 11 2. Slide the free end of the curtain into the side panel of the Weather Insulation Boards air conditioner.
- Page 10 INSTALLATION Install Support Brackets Install the Window Lock and Sash Seal Hold each support bracket flush against the outside of Trim the sash seal to fit the width of the window. Insert the window sill. Tighten each bracket to the bottom of the sash seal into space between the upper and lower the cabinet as shown below.
- Page 11 INSTALLATION Extend the Curtain Panels Installing the Chassis into the Cabinet Carefully raise the window to expose the curtain Team lift (two people) the air conditioner chassis and panel and panel frame. Extend the curtain panels to carefully slide it into the cabinet. Let the front of the air fill the window opening.
- Page 12 CONTROL PANEL Mode Button (6): Press the MODE button to Electronic Control Panel & Remote Control cycle through the various modes: Cool, Dry, Fan, Note: This control panel display always shows the Auto, Sleep, Energy Saver. room temperature in Fan Mode except when setting Timer Set (7): Use these buttons on the control the temperature and timer.
- Page 13 REMOTE CONTROL LCD Display MODE SLEEP ENERGY HIGH SAVER TIMER C/ F CHILD MYTEMP MODE LOCK Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries.
- Page 14 OPERATION INSTRUCTIONS 1. ON/OFF - Press the button to turn the A/C on or off. When the unit is turned off, the Timer func- tion will be cancelled. The set temperature will be saved. 2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Au- to, Cool/Energy Saver, Dry (Dehumidifier), and Fan.
- Page 15 USE THE AIR CONDITIONER Freezing Conditions: This is a cooling only air conditioner. It is not designed for freezing outdoor condi- tions. It must not be used in freezing outdoor conditions. Remote Control: To ensure proper operation when using the remote control, aim the remote directly at the signal receiver on the air conditioner.
- Page 16 USE AND CARE CARE AND CLEANING Clean your air conditioner to keep it looking new and to minimize dust build up. Air Filter Cleaning The air filter should be checked at least once every month to see if it needs cleaning. Trapped particles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost.
- Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner plug is pushed completely into the outlet. • Check the main fuse/circuit The fuse is blown/circuit breaker is tripped breaker box and replace the fuse or reset the breaker.
- Page 18 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Hot and humid weather Water is dripping outside • This is normal Water is dripping inside the room The air conditioner is not correctly • For proper water drainage, make tilted towards the outside sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
- Page 19 Five Year Compressor Limited Warranty Soleus N.A. warrants the accompanying Soleus Air Air Conditioner to be free of defects in material and workmanship for the appli- cations specified in its operation instruction for a period of TWO (2) years for components and FIVE (5) years for the compressor from the date of original retail purchase in the United States.
