Model
WM1-05M2-02
5,100 BTU
Window Air Conditioner
Operating Instructions
AIR CONDITIONER
2MF3
File No. SA 12793
V181029
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.

Advertisement

Table of Contents
loading

Related Manuals for Soleus Air WM1-05M2-02

Summary of Contents for Soleus Air WM1-05M2-02

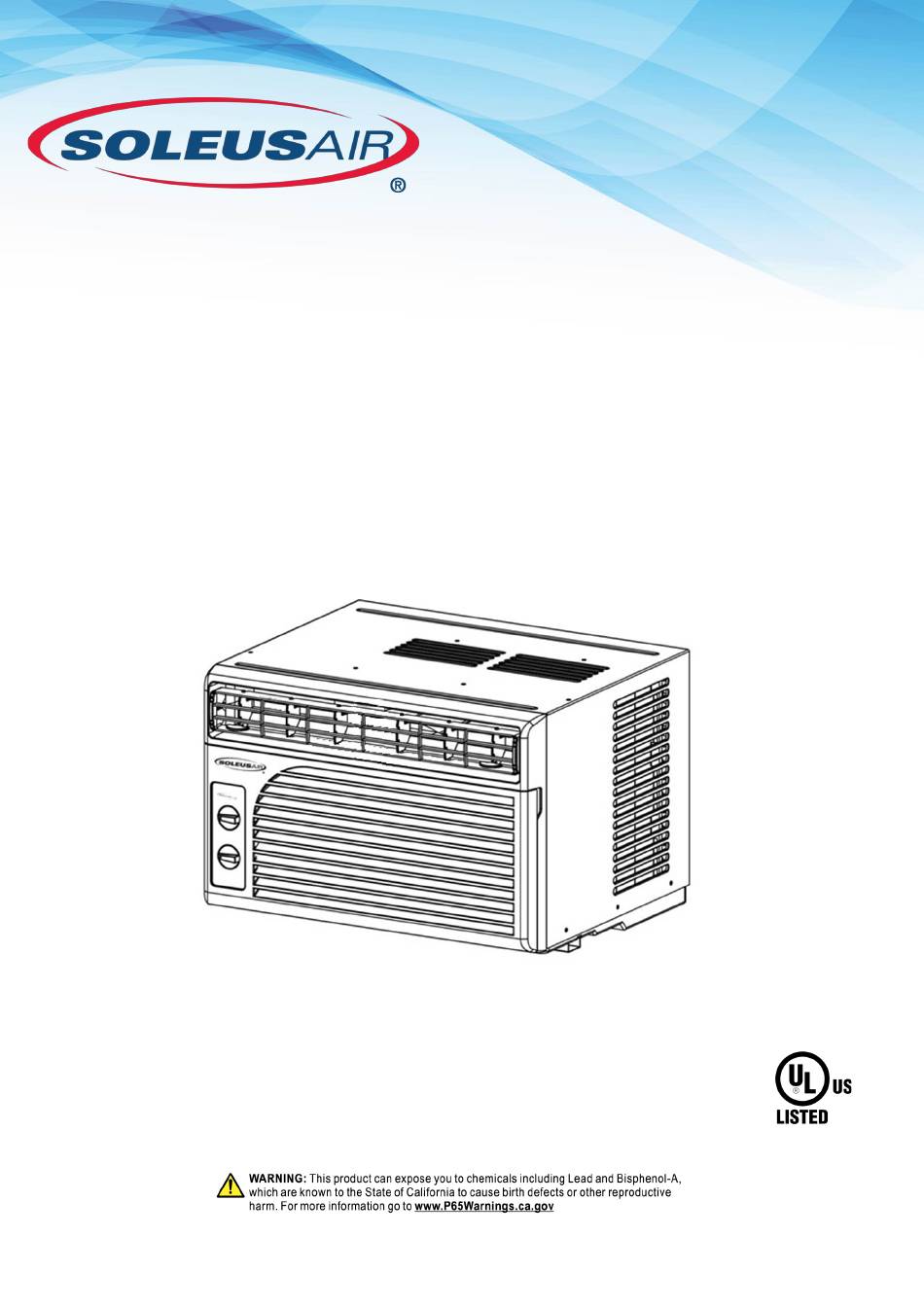

  • Page 1 Model WM1-05M2-02 5,100 BTU Window Air Conditioner Operating Instructions AIR CONDITIONER 2MF3 File No. SA 12793 V181029 Air conditioner must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.

  • Page 2: Purchase Information

    PURCHASE INFORMATION Thank you for choosing a Soleus Air Window Air Conditioner. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Window Air Conditioner.

  • Page 3: Power Cord And Plug

    POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.

  • Page 4: Package Contents

    PACKAGE CONTENTS Window Air Conditioner (1) Side Curtain (2) • • Top Mounting Rail (1) Sash Lock (2) • • Insert Strip (1) Foam Seal (1) • • Short Screw (8) Curtain Lock (2) • • Long Screw for Locking Bracket & Curtains (12) Owner’s Manual •...

  • Page 5: Specifications

    Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model Number WM1-05M2-02 Power Supply (Ph/V/Hz) 1/115/60 Rated Cooling Capacity (BTU/h)

  • Page 6: Electrical Safety

    ELECTRICAL SAFETY WARNING: grounding prong!! Power supply cord with 3-prong grounding plug and current detection device DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENATION OF THE MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED AN INDEPENDENT TEST TO VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN.

  • Page 7: Installation

    Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the provided screws. If not, make repairs prior to installing the unit. Model WM1-05M2-02 Unit Height 11 3/4" Unit Width 16 1/8"...
  • Page 8 INSTALLATION Top Rail Installation NOTE: Top Rail and the Side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained. Attach the top rail onto the top of the outer case using four short screws.
  • Page 9 INSTALLATION Remove the Air Conditioner from the Window Placing the Unit Inside a Normal Window (End of Season) 1. Set the unit in the window so that is centered. Place the unit so that front edge of the bottom rail is against the back 1.

  • Page 10: Control Panel

    CONTROL PANEL COOL MODE • Turn the MODE selector clockwise to select HIGH COOL, MED COOL or LOW COOL. • Turn the TEMPERATURE selector clockwise to select the higher cool settings or turn the selector counter-clockwise to select the lower cool settings. •...

  • Page 11: Operation

    OPERATION FREEZING CONDITIONS: This is a cooling only air conditioner. It is not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions. LOSS OF POWER PROTECTION: If power to the air conditioner is lost or interrupted, the air conditioner will automatically re-start in the setting last used prior to power loss.
  • Page 12 USE AND CARE CARE AND CLEANING: Clean your air conditioner to keep it looking new and to minimize dust build up. AIR FILTER CLEANING: The air filter should be checked at least once every month to see if it needs cleaning. Trapped parti- cles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner plug is pushed completely into the outlet. • Check the main fuse/circuit break- The fuse is blown/circuit breaker is tripped.
  • Page 14 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and humid weather • This is normal Water is dripping inside the room The air conditioner is not correctly • For proper water drainage, make tilted towards the outside sure the air conditioner is slightly tilted downward from the front of the unit to the rear.

  • Page 15: Limited Warranty

    Five Year Compressor Limited Warranty Soleus N.A. warrants the accompanying Soleus Air Air Conditioner to be free of defects in material and workmanship for the appli- cations specified in its operation instruction for a period of TWO (2) years for components and FIVE (5) years for the compressor from the date of original retail purchase in the United States.
