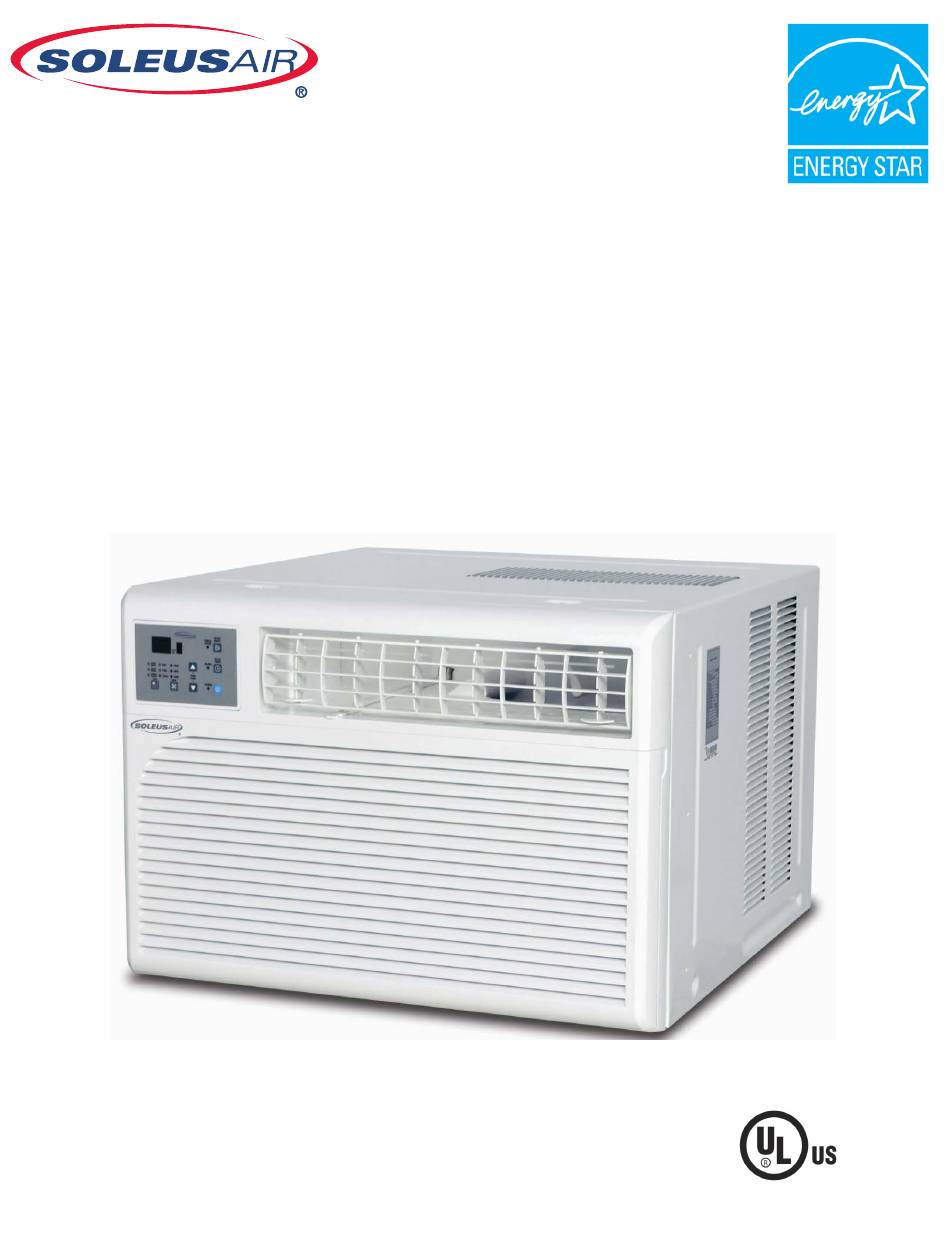

- Page 1 Models WM1-12E-01 12,600 BTU WM1-15E-01 15,400 BTU WM1-18E-01 18,300 BTU WM1-24E-01 24,700 BTU Electronic Window Air Conditioner Operating Instructions V151204...
-
Page 2: Important Safety Instructions
Thank you for choosing a Soleus Air Air Conditioner. This owner’s manual will proide you with valu- able information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 3: Lcdi Power Cord And Plug
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 4: Parts List
PARTS LIST Hardware Qty. (in plastic bag) Sash Lock Screw and Locknut WINDOW SASH SEAL Flathead Bolt and Locknut Sill Angle SASH LOCK AND SHORT SCREW Bracket TOP MOUNTING Curtain Lock FOAM GASKET RAIL SHORT SCREW Long Screws CURTAIN Short Screws CURTAIN LOCK FRAME TOOLS NEEDED... -
Page 5: Specifications
Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model WM1-12E-01 WM1-15E-01 Power Supply (Ph/V/Hz) 1/115/60... - Page 6 Avoid fire hazard or electronic shock, WARNING: DO NOT use an extension cord or an adapter plug. DO NOT remove any prong from the power cord. DO NOT under any circumstances, cut, remove, or bypass the grounding prong!! Power supply cord with 3-prong grounding plug and current detection device DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFI-...
-
Page 7: Window Preparation
Make sure the window is in good shape and able to firmly hold the needed screws. If not, make repairs prior to installing the unit. Model WM1-12E-01 / WM1-15E-01 WM1-18E-01 / WM1-24E-01 Unit Height 17 3/4"... - Page 8 INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING REMOVE CHASSIS 1. Pull down the front panel and remove the filter. (See Fig. 3) 2. Lift the front panel upwards to remove and place to the side. Fig. 3 Fig. 4 3. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air con- ditioner.
-
Page 9: Curtain Installation
ASSEMBLY & INSTALLATION (CONT.) Weather Insulation Board Installation 3. Fasten the curtains to the unit with short screws (See Fig.10) NOTE: The Weather Installation Board adds an extra layer of insulation to keep air from passing through the sides of the win- dow air conditioner. -
Page 10: Install Support Brackets
Install Support Brackets Install the Window Lock and Sash Seal 1. Hold each support bracket flush against the outside of 1. Trim the sash seal to fit the width of the window. Insert the window sill. Tighten each bracket to the bottom of the sash seal into space between the upper and lower the cabinet as shown below. - Page 11 ASSEMBLY & INSTALLATION (CONT.) Installing the Chassis into the Cabinet Extend the Curtain Panels 1. Carefully raise the window to expose the curtain panel 1. Team lift (two people) the air conditioner chassis and and panel frame. Extend the curtain panels to fill the carefully slide it into the cabinet.
-
Page 12: Using Your Air Conditioner
USING YOUR AIR CONDITIONER Electronic Control Panel & Remote Control 4. Timer Set: Use these buttons on the control Note: This control panel display always shows the room panel and remote control to set the timer. Each temperature in Fan Mode except when setting the tem- press of the▲or▼... -
Page 13: Lcd Display
OPERATING THE UNIT USING THE REMOTE CONTROL LCD Display MODE SLEEP ENERGY HIGH SAVER TIMER C/ F CHILD MYTEMP MODE LOCK Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries. * Remote Colors may differ from the image above. - Page 14 REMOTE CONTROL OPERATING INSTRUCTIONS 1. ON/OFF - Press the button to turn the A/C on or off. When the unit is turned off, the Timer function will be cancelled. The set temperature will be saved. 2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Auto, Cool, Dry (Dehumidifier), and Fan.
- Page 15 USING YOUR AIR CONDITIONER 5. Fan Only Mode: Use Fan Only mode at High, 1. Freezing Conditions: This is a cooling only air Medium, or Low fan speed to provide air circula- conditioner. It is not designed for freezing outdoor tion and filtering without cooling.
-
Page 16: Care And Cleaning
CARE AND CLEANING Cabinet Cleaning To clean the air conditioner cabinet: Clean your air conditioner to keep it looking new and to minimize dust build up. Unplug the air conditioner to prevent shock or • a fire hazard. The cabinet and front panel of Air Filter Cleaning the air conditioner may be dusted with an oil- The air filter should be checked at least once... -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner plug is pushed completely into the outl- • Check the main fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 18 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and Humid weather. • This is normal Water is dripping inside the room The air conditioner is not correctly • For proper water drainage, make tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 19: Warranty
Warranty Soleus Home Comfort warrants the accompanying Soleus Air Air Conditioner to be free of defects in mate- rial and workmanship for the applications specified in its operation instruction for the period of parts specified below. 5 YEARS FOR COMPRESSOR 2 YEAR FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance.
