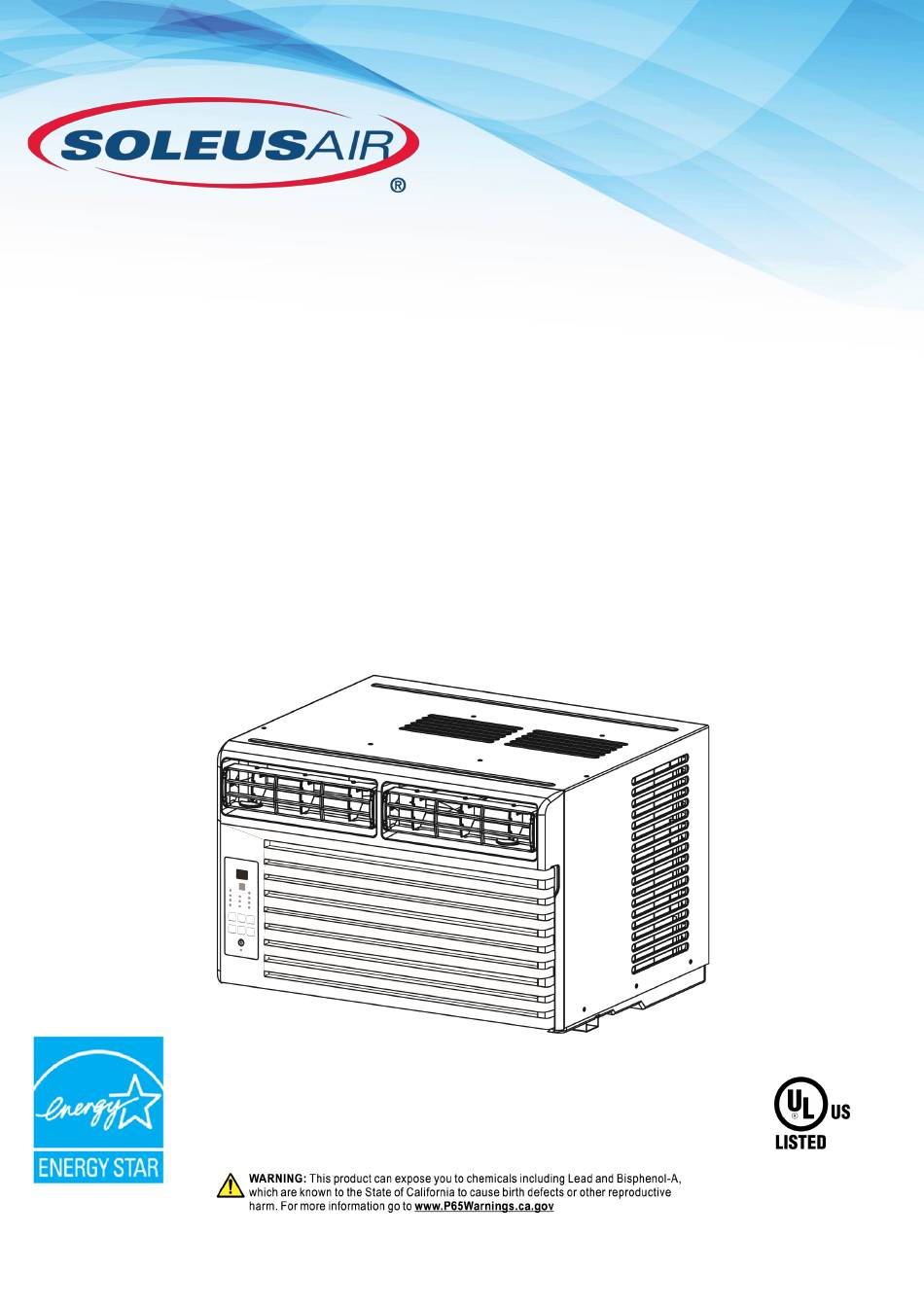

Model
WS2-06E-201
WS2-08E-201
WS2-10E-201
WS2-12E-201
Electronic Window Air Conditioner
Operating Instructions
10,200 BTU
12,000 BTU
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
6,200 BTU
8,000 BTU
AIR CONDITIONER
2MF3
File No. SA 12793
V181219
Advertisement
Table of Contents
Related Manuals for Soleus Air WS2-06E-201
Summary of Contents for Soleus Air WS2-06E-201
- Page 1 Model WS2-06E-201 6,200 BTU WS2-08E-201 8,000 BTU WS2-10E-201 10,200 BTU WS2-12E-201 12,000 BTU Electronic Window Air Conditioner Operating Instructions AIR CONDITIONER 2MF3 File No. SA 12793 V181219 Air conditioner must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.
-
Page 2: Purchase Information
PURCHASE INFORMATION Thank you for choosing a Soleus Air Window Air Conditioner. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Window Air Conditioner. -
Page 3: Power Cord And Plug
POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi- ble cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value. -
Page 4: Package Contents
PACKAGE CONTENTS Window Air Conditioner (1) Foam Seal (1) • • Remote Control (1) Long Screw for Window Locking Bracket & Cur- • • AAA Battery (2) tains (12) • Top Mounting Rail (1) Curtain Lock (2) • • Insert Strip (1) Owner’s Manual (1) •... -
Page 5: Specifications
Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model WS2-06E-201 WS2-08E-201 Power Supply (Ph/V/Hz) 1/115/60... -
Page 6: Electrical Safety
ELECTRICAL SAFETY WARNING: grounding prong!! Power supply cord with 3-prong grounding plug and current detection device DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENATION OF THE MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED AN INDEPENDENT TEST TO VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN. -
Page 7: Installation
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the provided screws. If not, make repairs prior to installing the unit. Model WS2-06E-201 WS2-08E-201/WS2-10E-201/WS2-12E-201 Unit Height 12 5/8”... -
Page 8: Top Rail Installation
INSTALLATION Top Rail Installation NOTE: Top Rail and the Side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained. Attach the top rail onto the top of the outer case using four short screws. - Page 9 INSTALLATION Weather Insulation Board Installation Placing the Unit Inside a Normal Window 1. Set the unit in the window so that is centered. Place the NOTE: The Weather Insulation Board adds an extra layer of unit so that front edge of the bottom rail is against the back insulation to keep air from passing through the sides of the window air conditioner.
-
Page 10: Control Panel
CONTROL PANEL Mode Button (6): Press the MODE button to Electronic Control Panel & Remote Control cycle through the various modes: Cool, Dry, Fan, Note: This control panel display always shows the Auto, Sleep, Energy Saver room temperature in Fan Mode except when setting Timer Set (7): Use these buttons on the control the temperature and timer. -
Page 11: Remote Control
REMOTE CONTROL LCD Display MODE SLEEP ENERGY HIGH SAVER TIMER C/ F CHILD MYTEMP MODE LOCK Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries. - Page 12 OPERATION INSTRUCTIONS 1. ON/OFF - Press the button to turn the A/C on or off. When the unit is turned off, the Timer func- tion will be cancelled. The set temperature will be saved. 2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Au- to, Cool/Energy Saver, Dry (Dehumidifier), and Fan.
-
Page 13: Energy Saver Mode
Ventilation: In order to maintain the best cooling condition, push the Fresh Air Lever to close the vent. When fresh air is necessary, pull the Fresh Air Lever to open the vent allowing fresh air being re- circulated in the room. *Fresh Air Lever is unavailable on WS2-06E-201 model. Fresh Air Lever... -
Page 14: Air Filter Cleaning
USE AND CARE CARE AND CLEANING Clean your air conditioner to keep it looking new and to minimize dust build up. Air Filter Cleaning The air filter should be checked at least once every month to see if it needs cleaning. Trapped particles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost. -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner plug is pushed completely into the outlet. • Check the main fuse/circuit The fuse is blown/circuit breaker is tripped breaker box and replace the fuse or reset the breaker. - Page 16 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Hot and humid weather Water is dripping outside • This is normal Water is dripping inside the room The air conditioner is not correctly • For proper water drainage, make tilted towards the outside sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 17: Limited Warranty
Five Year Compressor Limited Warranty Soleus N.A. warrants the accompanying Soleus Air Air Conditioner to be free of defects in material and workmanship for the appli- cations specified in its operation instruction for a period of TWO (2) years for components and FIVE (5) years for the compressor from the date of original retail purchase in the United States.
