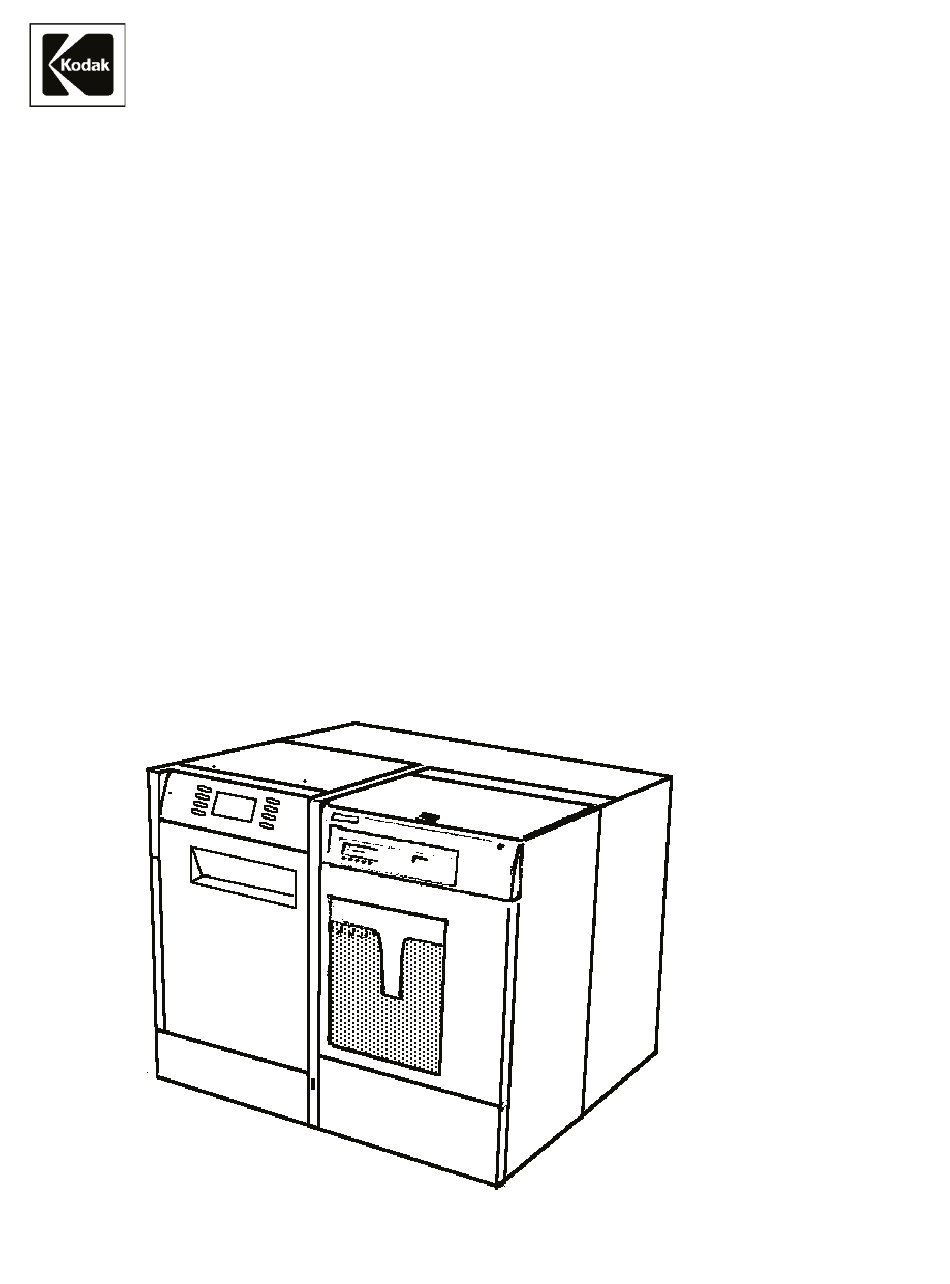

Publication No. II 3066-2
10/98
Supersedes Publications No. II 3066-1/95, II 3066-1 10/95 and II 3053-1 4/96
INSTALLATION INSTRUCTIONS
for
KODAK Multiloader 700 Side-by-Side Kit ,
KODAK Multiloader 700/700 Plus Side-by-Side Kit/5000 RA
,
KODAK Multiloader 700 Plus Side-by-Side Darkroom Kit
and for the
SEISMIC BRACKETS for the
KODAK Multiloader 700 Side-by-Side Kit
© KODAK AG STUTTGART, 1995, 1998

Advertisement

Table of Contents
loading

Related Manuals for Kodak Multiloader 700 Side-by-Side Kit

Summary of Contents for Kodak Multiloader 700 Side-by-Side Kit

  • Page 1 Publication No. II 3066-2 10/98 Supersedes Publications No. II 3066-1/95, II 3066-1 10/95 and II 3053-1 4/96 INSTALLATION INSTRUCTIONS KODAK Multiloader 700 Side-by-Side Kit , KODAK Multiloader 700/700 Plus Side-by-Side Kit/5000 RA KODAK Multiloader 700 Plus Side-by-Side Darkroom Kit and for the...
  • Page 2 PLEASE NOTE The information contained herein is based on the experience and knowledge relating to the subject matter gained by Kodak prior to publication .No patent license is granted by this information. Kodak reserves the right to change this information without notice, and makes no warranty, express or implied, with respect to this information.

  • Page 3: Table Of Contents

    DFT JUMPER ........................5-4 BRIGHTNESS CONTROL PCB ..................5-4 6. PREPARATION OF THE ML700 ................... 6-1 SOFTWARE........................6-1 HARDWARE ........................6-1 7. PROCESSOR SET-UP ......................7-1 460/480RA PROCESSOR ....................7-1 460/480 RA PROCESSOR RS 232 CONNECTOR............7-2 KODAK AG, Stuttgart 10/98...
  • Page 4 CHECK LIST........................11-1 FINAL CHECKS....................... 11-5 12. CHANGING THE SBS ORIENTATION................12-1 13. CONNECTING THE ADAPTER TO THE 5000RA PROC........... 13-1 14. KODAK MULTILOADER 700 PLUS SIDE-BY-SIDE DARKROOM KIT ........................14-1 OVERVIEW ........................14-1 PARTS LIST ........................14-2 SITE REQUIREMENTS ....................14-3 SPECIAL TOOLS ......................

  • Page 5: Sequence Of Installation

    Installation of the Installation of the Installation of the Dark Room Kit Dark Room Kit Dark Room Kit Chapter 11 Chapter 11 Chapter 11 Final Test Final Test Final Test SBS with SBS with SBS with 460/480RA 5000RA KODAK AG, Stuttgart 10/98...

  • Page 6: Introduction

    KODAK MULTILOADER 700 PLUS • KODAK X-OMAT 5000RA PROCESSOR SAFETY PRECAUTION If the electrical connection of the KODAK MULTILOADER 700 SIDE-BY-SIDE KIT is hardwired a MAIN POWER SWITCH consisting of a 2-pole switch with a solid neutral and common trip must be- •...
  • Page 7 KODAK MULTILOADER 700 PLUS is as stated in Site Specification 8B7005 • KODAK X-OMAT 5000 RA PROCESSOR is as stated in Site Specification 5B6338 If the SIDE-BY-SIDE KIT /5000 RA or the ML700, ML700 PLUS or the PROCESSOR is connected with a POWER CORD and PLUG to the mains, easily accessible and visible wall outlets close to the SIDE-BY-SIDE KIT /5000 RA must be provided.

  • Page 8: Packing List

    COVER PLATE 9261551 (not for 5000RA) ..........1 NOTE The SERVICE PLATE should be stored underneath the SBS. In case of a ML700 SERVICE it is used to make the SBS light-tight to allow film input via the DFT. SERVICE PLATE ....................1 10/98 KODAK AG, Stuttgart...

  • Page 9: Special Tools

    However this set-up can be changed in the field if necessary. This change is described in the last chapter of this publication. If an existing ML700 is upgraded with an SBS, ensure that the ML700 has an OPERATING SOFTWARE Version => 4.0. KODAK AG, Stuttgart 10/98...

  • Page 10: Site Inspection

    Check your local safety requirements if a separate PROCESSOR MAIN SWITCH at the wall is necessary. SEISMIC BRACKETS If SEISMIC BRACKETS have to be installed due to local regulations, order the SEISMIC BRACKET KIT Part Number 8B6586. 10/98 KODAK AG, Stuttgart...

  • Page 11: Unpacking The Side-By-Side Kit

    Use care to prevent bending of the SUPPORT LEGS. The SBS CARRIAGE will be inserted during the FINAL ASSEMBLY. Bottom view of the SBS Threaded holes for the 3 SUPPORT LEGS ML700 / Processor side figure 1-1 KODAK AG, Stuttgart 10/98...
  • Page 12 II 3066-2 10/98 KODAK AG, Stuttgart...

  • Page 13: Connecting The Adapter To The 460/480Ra Proc

    Screw the SBS MOUNTING BOLTS to the rear of the ADAPTER. Select the correct position for ML700 left / right. Use SCREWS M5x50. ML700 right ML700 left SBS MOUNTING BOLT ADAPTER WALL SCREW M5x50 figure 2-2 KODAK AG, Stuttgart 10/98...
  • Page 14 2-3 Mount the FILM GUIDE and fix it with 3 SCREWS (UNC). These SCREWS are packed with the PROCESSOR INSTALLATION KIT. If necessary add WASHERS from the PROCESSOR INSTALLATION KIT. MOUNTING SCREW FILM GUIDE figure 2-4 10/98 KODAK AG, Stuttgart...
  • Page 15 Route the cable out of the ADAPTER. The SENSOR - and MOTOR WIRES will be connected later to PCB A4. Fix the CONVEYER in place with 2 MOUNTING SCREWS. Use SCREWS M4x10. SCREWS M4 x 10 figure 2-6 KODAK AG, Stuttgart 10/98...
  • Page 16 Take out and discard the WIRE TIES at either side of the ADAPTER EXIT ROLLERS. They are needed during transportation only to keep the upper EXIT ROLLER in place. Set up the PROCESSOR as required. See the PROCESSOR INSTALLATION MANUAL. 10/98 KODAK AG, Stuttgart...

  • Page 17: Connecting The Adapter To The Proc. M6B

    Take out these 2 SCREWS and pull out the CONVEYER figure 3-1 Screw the SBS MOUNTING BOLTS to the rear of the ADAPTER. Use SCREWS M5x50. ML700 right ML700 left SBS MOUNTING BOLT ADAPTER WALL SCREW M5x50 figure 3-2 KODAK AG, Stuttgart 10/98...
  • Page 18 Mount the ADAPTER FRAME to the rear of the PROCESSOR. Use the existing 2 bottom screws only. If necessary add WASHERS from the PROCESSOR INSTALLATION KIT. NOTE The PROCESSOR SCREWS are UNC, the SBS and ML700 SCREWS are metric. MOUNTING SCREW figure 3-4 10/98 KODAK AG, Stuttgart...
  • Page 19 PROCESSOR INSTALLATION KIT. MOUNTING SCREW FILM GUIDE figure 3-5 Insert the CONVEYER into the ADAPTER. There are V-shaped guides on either side of the ADAPTER FRAME. They guide the CONVEYER into the correct position. V-shaped GUIDE figure 3-6 KODAK AG, Stuttgart 10/98...
  • Page 20 PIN 2 of this CONNECTOR receives +9 Volts from the M6B. If +9 Volts are applied to PIN 1 of this CONNECTOR, the OPTOCOUPLER U8 on PCB A4 (SBS) would not react to the PROCESSOR START SIGNAL. 10/98 KODAK AG, Stuttgart...

  • Page 21: Dark Room Feed Tray

    Connect the DFT SOLENOID CONNECTOR to the round CONNECTOR at the rear side of the SBS REAR WALL. Place the DFT TOP COVER onto the FEED TRAY. Mount it with 4 COUNTERSUNK SCREWS M4x20 to the rear of the SBS. KODAK AG, Stuttgart 10/98...
  • Page 22 II 3066-2 10/98 KODAK AG, Stuttgart...

  • Page 23: Sbs Setting

    120V +6 -10% 60 Hz Terminal 7 and Terminal 4 Terminal 7 and Terminal 4 100V +6 -10% 50 Hz Terminal 3 and Terminal 4 Terminal 3 and Terminal 4 TRANSFORMERS REAR SIDE OF SBS figure 5-1 KODAK AG, Stuttgart 10/98...

  • Page 24: Voltage Setting Sbs Fan

    The voltage setting for the FAN must be done on SBS-PCB A2. If the line voltage is 100/120V (+6 -10%), wire the FAN as follows: figure 5-2 If the line voltage is 220/230/240V (+6 -10%), wire the FAN as follows: figure 5-3 10/98 KODAK AG, Stuttgart...

  • Page 25: Jumper Setting

    X5/E1 Layout Version 2 EPRO M R A M A3X6 not used figure 5-4 SWITCH SETTING SWITCH S2 on SBS-PCB A4 has to be set as follows: ML700 RIGHT ML700 LEFT 460/480RA 5000RA S2-1 S2-2 S2-3 KODAK AG, Stuttgart 10/98...

  • Page 26: Fuse In The Iec Connector

    To install it, take off CONNECTOR A4X30, plug in the CONNECTOR of the BRIGHTNESS CONTROL PCB instead and plug in the CONNECTOR A4X30 to the SOCKET on the BRIGHTNESS CONTROL PCB. See the layout of PCB A4 on the next page. 10/98 KODAK AG, Stuttgart...
  • Page 27 II 3066-2 Connect the BRIGHTNESS CONTROL PCB here A4X11 A4X28 A4X23 A4X13 A4X31 A4X26 A4X33 A4X25 A4X14 A4X30 A4X241 A4X12 A4X21 A4X17 A4X32 A4X22 A4X18 A4X29 A4X10 A4X20 A4X19 A4X1 A4X2 A4X4 A4X3 figure 5-5 KODAK AG, Stuttgart 10/98...
  • Page 28 II 3066-2 10/98 KODAK AG, Stuttgart...

  • Page 29: Preparation Of The Ml700

    BUTTON on PCB A0. Then move the SERVICE SWITCH back to the left. CAUTION TAKE PROPER ESD SAFETY MEASURES. HARDWARE The TUNNEL CONNECTOR must be relocated. Take out the 2 CONNECTOR MOUNTING SCREWS and discard them. TUNNEL CONNECTOR figure 6-1 KODAK AG, Stuttgart 10/98...
  • Page 30 Fix the CONNECTOR and HARNESS with WIRE TIES so that they cannot be caught by moving parts. Route the new ADAPTER CABLE out of the ML700. new ADAPTER CABLE (CABLE TUN- NEL SENSOR short) figure 6-3 10/98 KODAK AG, Stuttgart...
  • Page 31 ADAPTER CABLE is located within the little CABLE DUCT of the SBS-PLATE. NOTE There must be a SPACER on either side between plate and ML700. SPACER SBS-PLATE MOUNTING SCREW ADAPTER CABLE SHORT CABLE DUCT figure 6-5 KODAK AG, Stuttgart 10/98...
  • Page 32 Y-ADAPTER 9170871 clamps provided with the INSTALLA- TION KIT. This al- lows the ML700 to be pulled forward without damaging DRAIN must be open the hoses. Do not kink the DRAIN HOSE! figure 6-7 10/98 KODAK AG, Stuttgart...

  • Page 33: Processor Set-Up

    PROCESSOR NOT READY PRESS BUTTON TO SELECT SETUP CYCLE PROC- OPT. LANG DONE/ RETURN Press “OPTIONS”. The DISPLAY will show: PROCESSOR NOT READY PRESS BUTTON TO SELECT REPLEN TEMP DISPLAY MORE DONE/ MODE LOCK UNITS RETURN KODAK AG, Stuttgart 10/98...

  • Page 34: 460/480 Ra Processor Rs 232 Connector

    232 CONNECTOR on the CONTROL PANEL. Turn off MAIN POWER. Remove and retain the 2 STANDOFFS from the RS 232 CONNECTOR on the CONTROL PANEL. Remove and retain the 4 SCREWS securing the CONTROL PANEL to the PROCESSOR. 10/98 KODAK AG, Stuttgart...
  • Page 35 CONTROL PANEL to check for the proper fit. Check for fit both with and without the CABLE locked into the STANDOFFS. PHONO JACK SCREW (2) CONTROL PANEL 200 BOARD SCREW (4) WASHER-PHONO JACK PLATE LOCK NUT-PHONO JACK STANDOFF (2) figure 7-1 KODAK AG, Stuttgart 10/98...

  • Page 36: M6B Processor

    WARNING BEFORE YOU REWIRE THE SAFELIGHT RECEPTACLE ENSURE THAT THE M6B PROCESSOR IS NOT CONNECTED TO THE MAINS TO AVOID AN ELECTRICAL SHOCK. Remove the RECEIVING BIN PANEL off the M6B. RECEIVING BIN PANEL figure 7-2 10/98 KODAK AG, Stuttgart...
  • Page 37 7-3 Contact 9-6 of Relay K3 has to be jumpered so that there is 120 VAC at the SAFELIGHT RECEPTACLE as long as the M6B is switched on. See figure 7-4 and 7-5. figure 7-4 KODAK AG, Stuttgart 10/98...
  • Page 38 PCB A4 (SBS). Ensure that PIN 2 of this CONNECTOR receives +9 Volts from the M6B. If +9 Volts are applied to PIN 1 of this CONNECTOR, the OPTOCOUPLER U8 on PCB A4 (SBS) would not generate the PROCESSOR START SIGNAL. 10/98 KODAK AG, Stuttgart...

  • Page 39: Processor Remote On/Off 480Ra

    To overcome this the REMOTE ACCESS has to be installed. NOTE The PROCESSOR ON/OFF can only be operated after the PROCESSOR ADAPTER COVER is taken off. KNOB PLASTIC BEARING MAIN SWITCH EXTENSION BRACKET C-RING POSITION MAIN SWITCH ACTUATOR figure 7-6 KODAK AG, Stuttgart 10/98...
  • Page 40 Engage the ACTUATOR with the horizontal part of the PROCESSOR MAIN SWITCH. Gently pull up the KNOB to test if the MAIN SWITCH is actuated. Gently press down the KNOB to switch off the PROCESSOR MAIN SWITCH. 10/98 KODAK AG, Stuttgart...

  • Page 41: Processor Remote On/Off M6B Up To Sn 20000

    Take out both SCREWS of the MAIN SWITCH PROTECTIVE COVER. With a pair of PLIERS bend the PROTECTIVE COVER up and down until it breaks off. NOTE Do not damage the MAIN SWITCH. MAIN SWITCH PROTECTIVE COVER SCREW (2) figure 7-7 KODAK AG, Stuttgart 10/98...
  • Page 42 II 3066-2 Mount the COVER PLATE (packed with the INSTALLATION KIT) with the 2 SCREWS removed in step 1. KNOB PLASTIC BEARING BRACKET COVER PLATE MAIN SWITCH EXTENSION C-RING POSITION ACTUATOR figure 7-8 10/98 7-10 KODAK AG, Stuttgart...
  • Page 43 Engage the ACTUATOR with the horizontal part of the PROCESSOR MAIN SWITCH. Gently pull up the KNOB to test if the MAIN SWITCH is actuated. Gently press down the KNOB to switch off the PROCESSOR MAIN SWITCH. KODAK AG, Stuttgart 7-11 10/98...

  • Page 44: Processor Remote On/Off M6B From Sn 20000

    Take out both SCREWS of the MAIN SWITCH PROTECTIVE COVER. With a pair of PLIERS bend the PROTECTIVE COVER up and down until it breaks off. NOTE Do not damage the MAIN SWITCH. MAIN SWITCH PROTECTIVE COVER SCREW (2) figure 7-9 10/98 7-12 KODAK AG, Stuttgart...
  • Page 45 II 3066-2 Mount the COVER PLATE (packed with the INSTALLATION KIT) with the 2 SCREWS removed in step 1. KNOB MAIN SWITCH EXTENSION PLASTIC BEARING BRACKET C-RING POSITION COVER PLATE ACTUATOR figure 7-10 KODAK AG, Stuttgart 7-13 10/98...

  • Page 46: 5000 Ra Processor

    This can be selected via the PROCESSOR OPERATOR KEYBOARD. The 5000RA CONTROL PANEL/DISPLAY should be actuated as shown in the FLOW CHART on the next page in order to be certain that the “ACCESSORY MODE” is used. NOTE Press the highlighted buttons only! 10/98 7-14 KODAK AG, Stuttgart...
  • Page 47 R E C E P T A C L E M O D E I S A C C E S S O R Y D O N E / S A F E A C C Y R E T U R N KODAK AG, Stuttgart 7-15 10/98...
  • Page 48 II 3066-2 10/98 7-16 KODAK AG, Stuttgart...

  • Page 49: System Assembly

    If a DFT is to be used, Route the RED/GREEN LED BOX through the wall opening first. Use care to pre- vent the wires from breaking as long as the LED BOX is not fixed to the wall. KODAK AG, Stuttgart 10/98...
  • Page 50 WASHER This MOUNTING HOLE is located be- hind the vertical MOUNTING HOLE BRACKET GUIDE RAIL figure 8-2 Insert the SBS CARRIAGE. See the drawing on the next page. . Move the ML700 to the SBS. 10/98 KODAK AG, Stuttgart...
  • Page 51 Turn the SBS-LOCKING SHAFT until the gap between ML700 and SBS is smallest. The SHAFT has holes to insert the HANDLE which is packed with the SBS INSTALLATION KIT. Store this TOOL inside the SBS. Stick the HANDLE into this hole LOCKING SHAFT figure 8-4 KODAK AG, Stuttgart 10/98...
  • Page 52 SOR READY CABLES To ML700 M6/M8 CONNECTOR are otherwise not light- tight. To PROCESSOR SAFE LIGHT OUTLET. For the M6B PROCESSOR with SN below 20000 an ADAPTER CABLE is required. To ML700 TUNNEL CONNECTOR figure 8-5 10/98 KODAK AG, Stuttgart...
  • Page 53 8-6 To avoid displacement of the freestanding SBS-SYSTEM turn down the LEVELLING FEET of the ML700. If a DFT is to be used, mount the RED/GREEN LED BOX to the wall. Use the VELCRO STRIP. KODAK AG, Stuttgart 10/98...
  • Page 54 II 3066-2 10/98 KODAK AG, Stuttgart...

  • Page 55: Parameters

    0 = No TUNNEL 1 = Standard ML700 Tunnel 2 = Side-By-Side Kit PROCESSOR DELAY.... PROCESSOR FLAG ....For the ML700 select on PCB A9 (top right of ML700) the position for the M8 PROCESSOR. figure 9-1 KODAK AG, Stuttgart 10/98...
  • Page 56 For the ML700 Plus select on PCB A9 the following JUMPER SETTING: JUMPER A9X14 5 to 6 JUMPER A9X15 1 to 3 JUMPER A9X15 2 to 4 A9X8 A9X1 A9X3 A9X7 A9X15 A9X2 A9X6 A9X14 A9X13 A9X5 A9X4 A9X11 A9X9 A9X12 A9X10 figure 9-2 10/98 KODAK AG, Stuttgart...

  • Page 57: Adjustments

    SENSOR B4 detects the right-hand position of the CARRIAGE. If necessary move the SENSOR MOUNT up or down, so that the CARRIAGE FLAG is midway in between. This midway position is not critical. SENSOR MOUNT SENSOR POSITION SCREW figure 10-1 KODAK AG, Stuttgart 10-1 10/98...

  • Page 58: Brightness Control

    BRIGHTNESS CONTROL NOTE Do this adjustment if a DFT is installed Turn the POTENTIOMETER on the BRIGHTNESS CONTROL PCB until the desired brightness of the RED/GREEN DFT LED is achieved. PCB A4 BRIGHTNESS POTENTIOMETER figure 10-2 10/98 10-2 KODAK AG, Stuttgart...

  • Page 59: Final Test

    A3X7 A3X1 not used GND uP PCB A3 A3X3 RESET JUMPER SETTING Layout Version 1 A3X2 does not exist for this version not used A3X4 X5/E1 Layout Version 2 EPROM A3X6 not used figure 11-1 KODAK AG, Stuttgart 11-1 10/98...
  • Page 60 II 3066-2 SBS PCB A4 SWITCH SETTING S2 ML700 RIGHT ML700 LEFT 460/480RA 5000RA S2-1 S2-2 S2-3 figure 11-2 10/98 11-2 KODAK AG, Stuttgart...
  • Page 61 480RA / 5000RA RS232 CONNECTOR to SBS • M6B PROCESSOR START CABLE to SBS PROCESSORS • PROCESSOR READY KIT must be installed • 480RA / 5000RA RECEPTACLE MODE must be set to ACCESSORY figure 11-3 KODAK AG, Stuttgart 11-3 10/98...
  • Page 62 JUMPER A9X15 1 to 3 JUMPER A9X15 2 to 4 A9X8 A9X1 A9X3 A9X7 A9X15 A9X2 A9X6 A9X14 A9X13 A9X5 A9X4 A9X11 A9X9 A9X12 A9X10 figure 11-4 PARAMETERS ML700 / ML700 Plus TUNNEL FLAG..2 PROCESSOR..1 10/98 11-4 KODAK AG, Stuttgart...

  • Page 63: Final Checks

    Light tightness of the DFT is critical. If it is not sealed correctly with foam rubber, fogged films will be the result. Not only FILMS from the DFT may then be fogged, but also FILMS from the ML700 too. KODAK AG, Stuttgart 11-5...
  • Page 64 -DFT IN USE- is displayed on the Multiloader and the CARRIAGE TRANSPORT BELTS are running. • DARKOOM LED (while DFT COVER is closed), red when Multiloader in use, green in STANDBY Test the electrical safety of the system according to your local safety rules. 10/98 11-6 KODAK AG, Stuttgart...

  • Page 65: Changing The Sbs Orientation

    Reposition the SERVICE BUTTON. Reposition the DFT COVER PLATES. DIP SWITCH SETTING. Reposition the SBS MOUNTING BOLTS. SERVICE BUTTON CLUTCH ASSY with FREE RUNNING CLUTCH SENSOR B4 SENSOR B1 GUIDE RAIL SENSOR B3 figure 12-1 KODAK AG, Stuttgart 12-1 10/98...
  • Page 66 If the CARRIAGE is on the ML700 side the BELTS must transport the FILM away from the ML700. If the CARRIAGE is on the PROCESSOR side, the BELTS must transport the FILM to the PROCESSOR. GEAR WITH FREE RUNNING CLUTCH C-RING SHAFT figure 12-2 10/98 12-2 KODAK AG, Stuttgart...
  • Page 67 If the PROCESSOR has to be right of the ML700 an EXTENTION CABLE (PN 9261311) is required. Connect it to PCB A4X15 and route it to the PROCESSOR side. Fix the CABLES with WIRE TIES and close the CABLE DUCT. KODAK AG, Stuttgart 12-3 10/98...
  • Page 68 COVER PLATE The black BORE HOLES are threaded holes in the SBS frame. They are not in the COVER PLATE. MOUNTING HOLES for the SBS SUPPORT BRACKETS MOUNTING HOLES for the DFT COVER figure 12-4 10/98 12-4 KODAK AG, Stuttgart...
  • Page 69 Switch S2-1 on PCB A4 of the SBS must be set to the correct orientation. See figure 12-7. ML700 RIGHT ML700 LEFT S2-1 REPOSITION THE SBS MOUNTING BOLTS Mount the SBS MOUNTING BOLTS to the correct position. (ML 700 left / right). See figure 12-6. KODAK AG, Stuttgart 12-5 10/98...
  • Page 70 5000 right 270 left 270 right 480 left 5000 left 480 left 5000 left 270 right 480 right 5000 right 270 left GUIDE RAIL POSITION NOTE The 6 LABELS are not drawn to scale. figure 12-5 10/98 12-6 KODAK AG, Stuttgart...
  • Page 71 II 3066-2 ML700 right ML700 left SBS MOUNTING BOLT figure 12-6 A4X23 A4X13 A4X31 A4X26 A4X25 A4X30 A4X241 A4X14 SWITCH S2 A4X21 A4X17 A4X32 A4X18 A4X20 A4X19 A4X1 A4X2 A4X4 A4X3 figure 12-7 KODAK AG, Stuttgart 12-7 10/98...
  • Page 72 II 3066-2 10/98 12-8 KODAK AG, Stuttgart...

  • Page 73: Connecting The Adapter To The 5000Ra Proc

    Screw the SBS MOUNTING BOLTS to the rear of the ADAPTER. Select the correct position for ML700 left / right. Use SCREWS M5x50. ML700 right ML700 left SCREW M5x50 MOUNTING BOLT ADAPTER WALL figure 13-2 KODAK AG, Stuttgart 13-1 10/98...
  • Page 74 Mount the UPPER EXIT GUIDE and fix it with 3 SCREWS (imperial). These SCREWS are packed with the PROCESSOR INSTALLATION KIT. If necessary add WASHERS from the PROCESSOR INSTALLATION KIT. MOUNTING SCREW (3) UPPER EXIT GUIDE LOWER EXIT GUIDE V-shaped GUIDE figure 13-4 10/98 13-2 KODAK AG, Stuttgart...
  • Page 75 Route the cable out of the ADAPTER. The SENSOR - and MOTOR WIRES will be connected later to PCB A4. Fix the CONVEYER in place with 2 MOUNTING SCREWS. Use SCREWS M4x10. SCREWS M4x10 figure 13-6 Set up the PROCESSOR as required. See the PROCESSOR INSTALLATION MANUAL. KODAK AG, Stuttgart 13-3 10/98...
  • Page 76 II 3066-2 10/98 13-4 KODAK AG, Stuttgart...

  • Page 77: Kodak Multiloader 700 Plus Side-By-Side Darkroom Kit

    14-1 OVERVIEW The KODAK Multiloader 700 Plus Side-by-Side Darkroom Kit (referred to as SBS in this chapter) is installed in the wall between the lightroom and the darkroom, so that the customer has more space available in the lightroom.

  • Page 78: Parts List

    9265236 BACK SERVICE DOOR 9265176 20 SCREWS 3.5 x 17 mm 10 SCREWS 4.0 * 35 mm 3 SCREWS 4.0 * 30 mm 4 SCREWS M4 x 20 mm 4 WASHERS 6.4 mm figure 14-2 10/98 14-2 KODAK AG, Stuttgart...

  • Page 79: Site Requirements

    1700 mm (67 in) FREE SPACE 1800 mm WALL OPENING 1580 - 1600 mm Wall WALL OPENING figure 14-3 SPECIAL TOOLS Powerdrill SCREWS and ANCHORS PREPARATION A wall opening is necessary as shown in figure 14-3. KODAK AG, Stuttgart 14-3 10/98...

  • Page 80: General

    The SCREWS and ANCHORS for attaching the panels to the wall depend on the wall type. SCREWS and ANCHORS are, therefore, not supplied. Get them locally. The KODAK Multiloader 700 Plus Side-by-Side Darkroom Kit is installed from the lightroom. Unpack it there.

  • Page 81: Installation

    Apply SILICONE to the SBS (see FIGURE 14-4). Fasten BRACKETS A with the SCREWS removed in step 2 (see FIGURE 14-4). WALL REMOVE 4 SCREWS REMOVE 4 SCREWS SILICONE 785 mm SILICONE ADJUST BRACKET A BRACKET A figure 14-4 KODAK AG, Stuttgart 14-5 10/98...
  • Page 82 Insert TOP PANEL into BRACKET B. Do not tighten it. . Move the SBS into the wall opening until the TOP PANEL gets in contact with the wall. Check for equal distances to the right and to the left. 10/98 14-6 KODAK AG, Stuttgart...
  • Page 83 SBS as follows: Push the BACK SERVICE PANEL upwards against BRACKET D, so that this will be pressed against the SBS. Then let the BACK SERVICE PANEL down again. The BRACKET D should now firmly stick to the SBS. KODAK AG, Stuttgart 14-7 10/98...
  • Page 84 BRACKET G BRACKET G FIGURE SHOWS INSTALLATION FOR PROCESSOR LEFT TOPVIEW FOOT FOOT 3x 35 mm 3x 35 mm BRACKET E BRACKET E 3x 17 mm 3x 17 mm BRACKET A BRACKET A FOOT figure 14-7 10/98 14-8 KODAK AG, Stuttgart...
  • Page 85 . Push the BRACKETS G under the SIDE PANELS. . Mount the SIDE PANELS to the BACK SERVICE PANEL using SCREWS 35 mm long (see FIGURE 14-7, TOPVIEW). . Mount the SIDE PANELS to the BRACKETS A using SCREWS 17 mm long. KODAK AG, Stuttgart 14-9 10/98...
  • Page 86 . Apply SILICONE along the WALL OPENING. . Insert TOP PANEL into BRACKET B. . Press TOP PANEL against the wall. . Screw the TOP PANEL to the wall. . Insert TOP SERVICE DOOR and close it. Close the PLASTIC COVER. 10/98 14-10 KODAK AG, Stuttgart...
  • Page 87 . Make holes for the ANCHORS at the marked positions. . Insert the ANCHORS into the holes. . Apply SILICONE along the wall opening. . Place WALL PANELS RIGHT and LEFT into BRACKETS A. . Push them up to the TOP PANEL. KODAK AG, Stuttgart 14-11 10/98...
  • Page 88 . Mount the PROCESSOR PANEL to the LONG SIDE PANEL using two SCREWS 35 mm long (see FIGURE 14-10). The figure below shows the installation of the PROCESSOR at the left side. LONG SIDEPANEL PROCESSOR PANEL figure 14-10 10/98 14-12 KODAK AG, Stuttgart...
  • Page 89 II 3066-2 . Add the WASHER from the INSTALLATION KIT under the MOUNTING BOLT for the KODAK Multiloader 700 Plus adapterplate and under the MOUNTING BOLT for the PROCESSOR ADAPTER). Insert WASHER figure 14-11 . Install the PROCESSOR according to the INSTALLATION GUIDE SBS.
  • Page 90 II 3066-2 10/98 14-14 KODAK AG, Stuttgart...

  • Page 91: Seismic Brackets

    PACKING LIST 8B6586 SEISMIC KIT, it consists of INSTALLATION INSTRUCTIONS SEISMIC BRACKET No. 1 SEISMIC BRACKET No. 2 SEISMIC BRACKET No. 3 TEMPLATE 261929 ANCHOR 188623 BOLT - STAINLESS STEEL 173824 WASHER - STAINLESS STEEL KODAK AG, Stuttgart 15-1 10/98...

  • Page 92: Introduction

    ML700 SEISMIC BRACKET No. 3 FELT PEN mark on the floor figure 15-1 Do the same procedure for the front right corner of the ML700. Disconnect the ML700 from the system and move it aside. 10/98 15-2 KODAK AG, Stuttgart...
  • Page 93 SEISMIC BRACKET No. 2 is used two places. The single oblong hole in the vertical part of SEISMIC BRACKET No. 3 fits over the SCREW HEAD of the ML700 TRANSFORMER COVER. Mark the bore holes for the 4 SEISMIC BRACKETS on the floor and remove the template. KODAK AG, Stuttgart 15-3 10/98...
  • Page 94 SEISMIC BRACKET No. 3 fits over the SCREW HEAD of the ML700 TRANSFORMER COVER Push the ML700 DRAWER back in. NOTE From now on SEISMIC BRACKETS No. 1 and 3 have to be removed, if the ML700 has to be separated from the system. 10/98 15-4 KODAK AG, Stuttgart...
  • Page 95 II 3066-2 KODAK AG, Stuttgart 15-5 10/98...
  • Page 96 Kodak AG Hedelfinger Str. 54-60 70327 Stuttgart Germany Kodak, Min-R, X-Omat and X-Omatic are trademarks...
