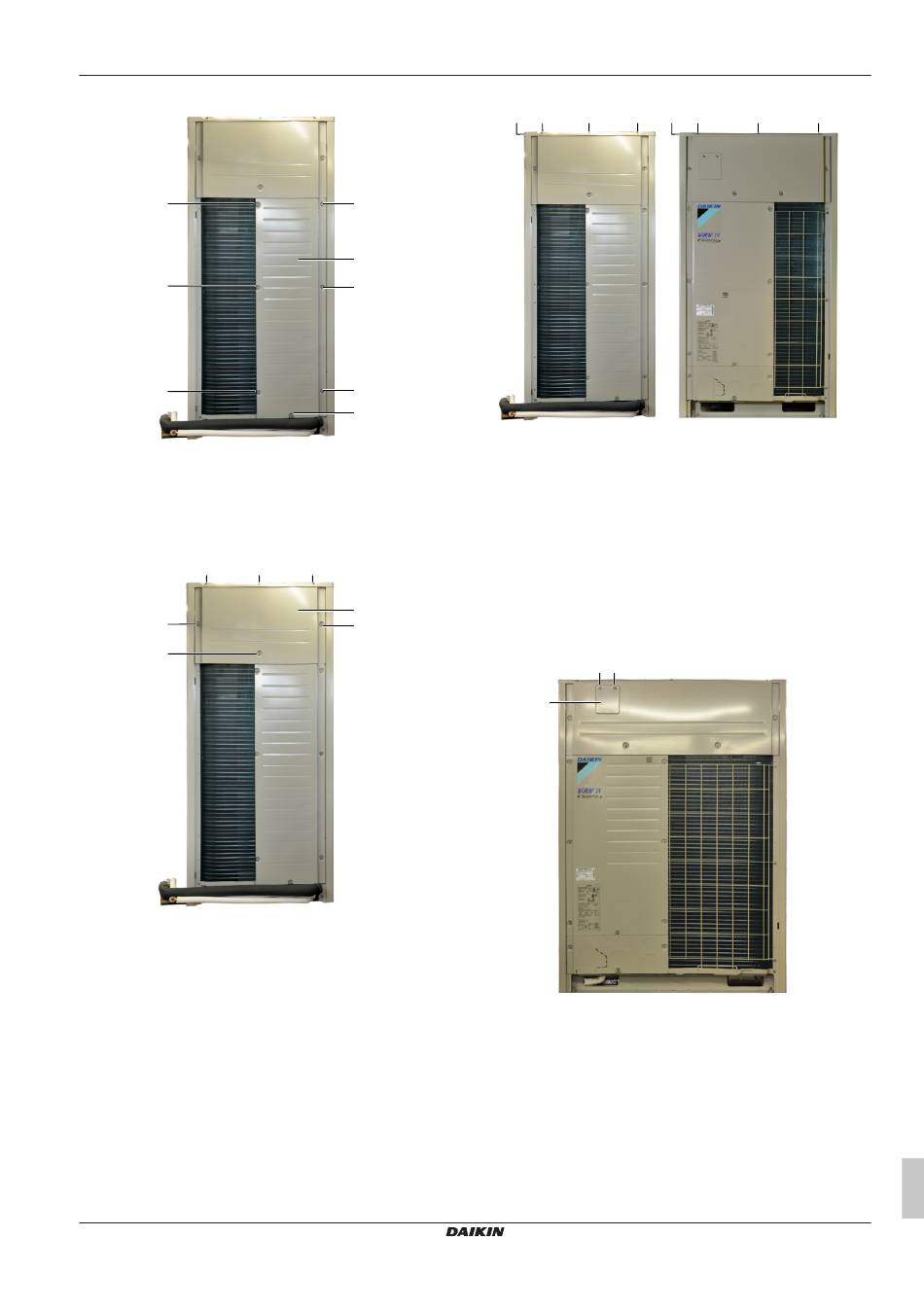

To remove the side plate
a
a
a
a Screw
b Side plate
13 Loosen and remove the 7 screws (a) that fix the side plate
assembly.
14 Lift the side plate assembly (b) and remove it from the unit.
To remove the upper side plate
a
a
a
a Screw
b Upper side plate
15 Loosen and remove the 6 screws (a) that fix the upper side
plate assembly.
16 Lift the upper side plate assembly (b) and remove it from the
unit.
RYYQ+RYMQ+RXYQ8~20U7Y1B
VRV IV+ Heat Pump
ESIE18-14 – 2019.07
a
b
a
a
a
a a
b
a
To remove the top plate
b a a a
a Screw
b Top plate
17 Loosen and remove the 12 screws (a) that fix the top plate
assembly.
18 Remove the top plate (b) from the unit.
3.13.4 To remove the plate work on double fan
units
1 Stop the unit operation (via the user interface, operation switch,
...).
2 Turn OFF the respective circuit breaker.
To remove the service plate
a a
b
a Screw
b Service plate
3 Loosen and remove the 2 screws (a) that fix the service plate
assembly.
4 Remove the service plate assembly (b) from the unit.
3 Components
b a a a
