Installation
Optional Plug Kit (PLFXSPLUG, sold separately)
1. Remove the 3 screws that hold the electrical cover plate. (Figure 5, p.10)
2. Connect the black L wire from the unit to the black wire of the plug kit.
3. Connect the white N wire from the fireplace to the white wire from the plug kit.
4. Connect green G wire from the fireplace to the green wire from the plug kit.
5. Ensure all wire connections are tight.
6. Secure the power cord's pre-installed cover plate using the screws removed when removing the electrical cover plate.
The previously removed electrical cover plate can be disposed of.
WARNING: This heater is not intended for use with an extension cord. Plug the cord directly into an ap propriate
wall receptacle.

Heater Hardware Disconnect

The fireplace heater can be permanently disabled by removing the electronic jumper on the main control board.
!
NOTE: Heater hardware disconnect will permanently disable the heater and fan. Follow these instructions only
when an installation without heat is required. Temporary disabling of the heater can be achieved through the
hidden touch controls. See "Heat Disable" in Operation section (p. 17) for instructions.
To disconnect the heater and fan permanently:

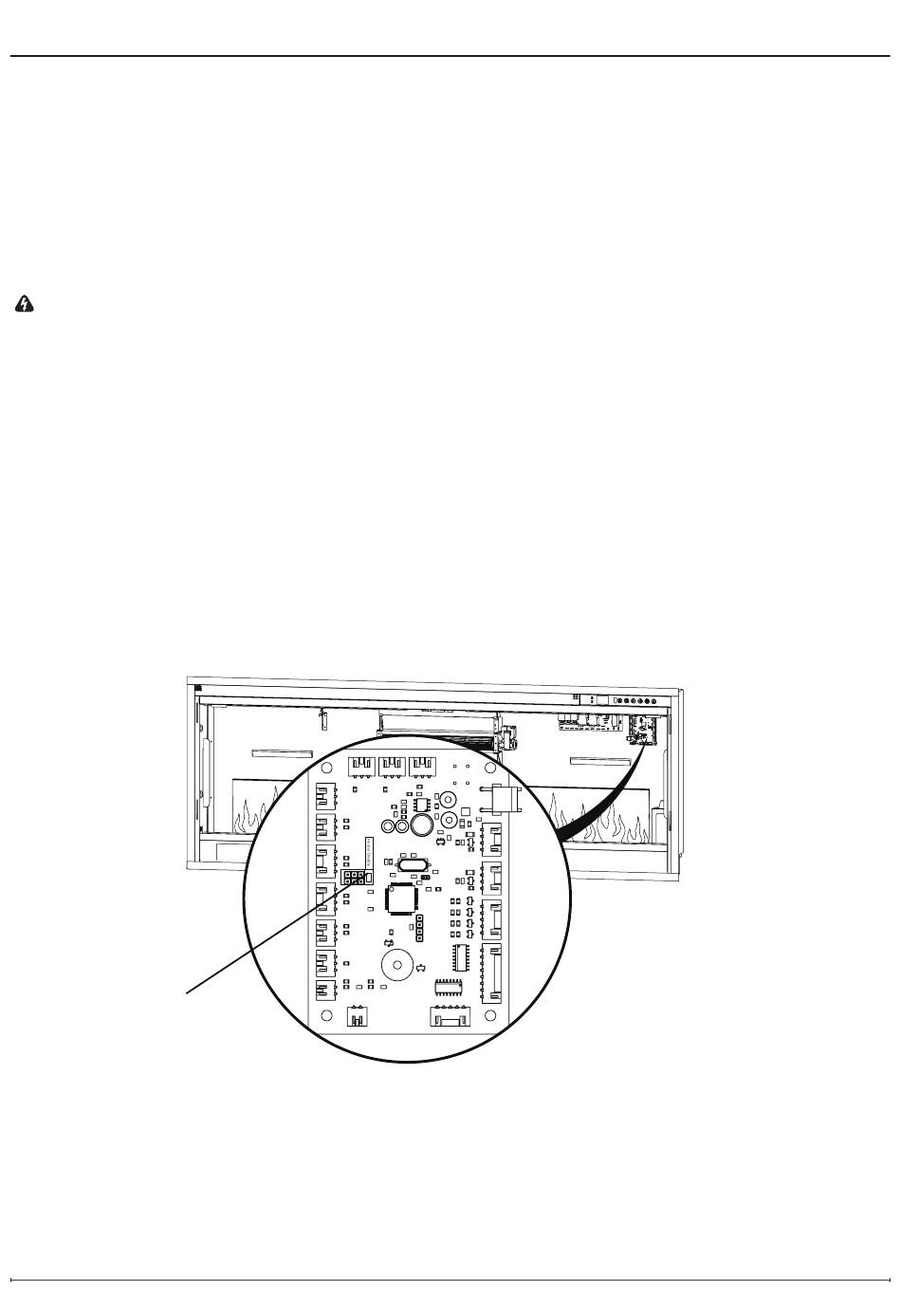

1. Locate the main control board. The heater hardware disconnect jumper location is labeled
"Heater Disable". (Figure 12).
2. Pull out the heater hardware disconnect jumper.
Heater Hardware
Disconnect Jumper
Figure 12
13
