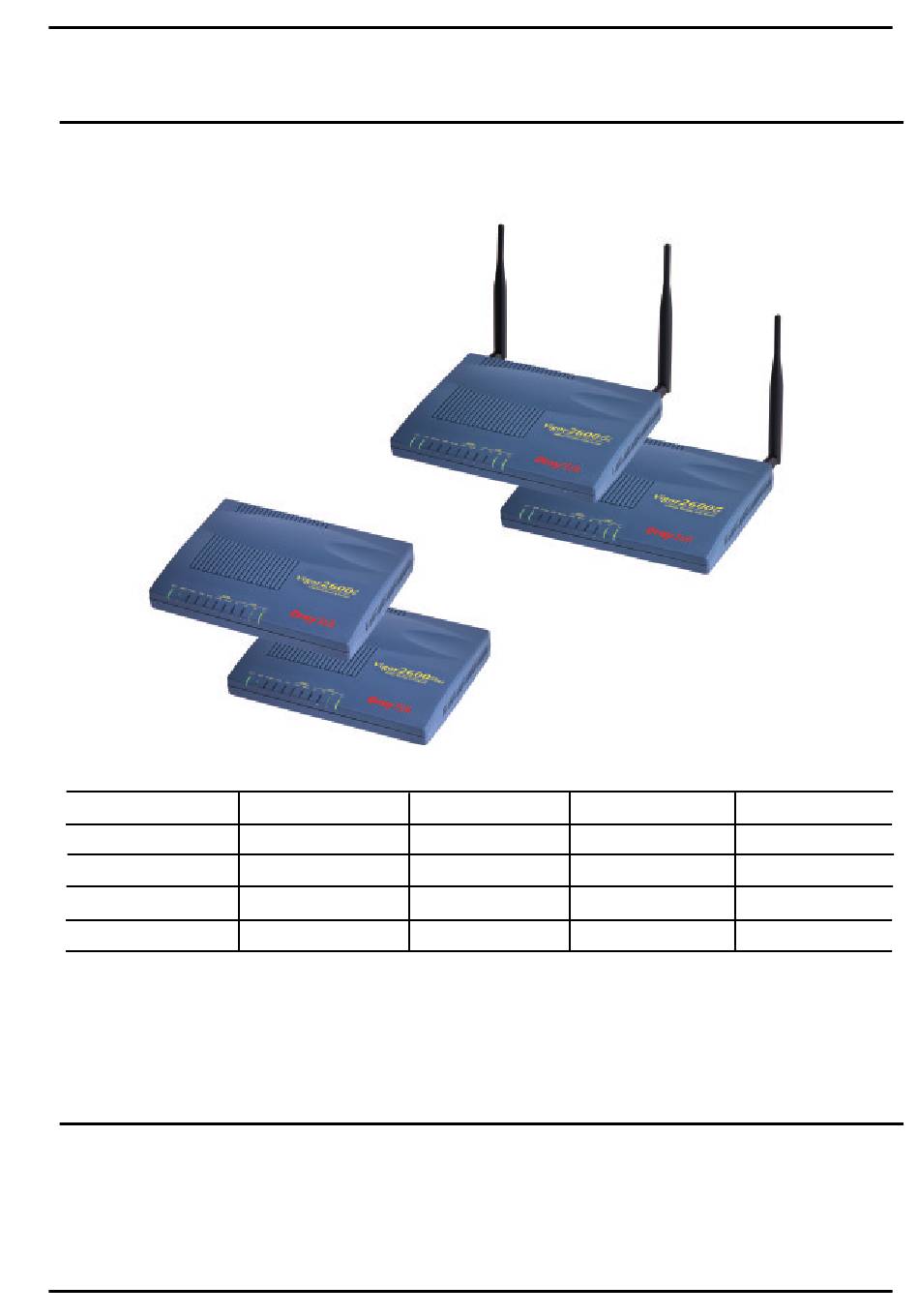

Vigor2600 plus Series introduction
ADSL Routers
Annex A / Annex B
ISDN Backup
Wireless AP
The Vigor2600 plus series is an Internet access solution for your LAN which not only provides shared web surfing
but countless other value-added features such as Firewall / Security, VPN, multimedia support, USB interface
printer server, and 54Mbps 802.11g Wireless LAN and all in a reliable one-box solution.
LED Indicators and
Back Panels
Vigor2600plus
*
* / *
_
_
Each of the Vigor2600 plus series router has different front and rear panels. Before you
begin to install, please take a moment to become more familiar with the LED indicators and
rear panels. The following sections describe the models individually.
Vigor2600G
Vigor2600i
*
* / *
*
_
1
Vigor2600Gi
*
*
* / *
* / *
_
*
*
*
Advertisement
Table of Contents
Related Manuals for Draytek Vigor2600 plus Series
Summary of Contents for Draytek Vigor2600 plus Series
- Page 1 ISDN Backup Wireless AP The Vigor2600 plus series is an Internet access solution for your LAN which not only provides shared web surfing but countless other value-added features such as Firewall / Security, VPN, multimedia support, USB interface printer server, and 54Mbps 802.11g Wireless LAN and all in a reliable one-box solution.
- Page 2 Vigor2600plus Descriptions LED Indicators ACT (Activity) Blink when power is supplied to the router and the router is running normally. ON when the QoS function is active. Printer ON when the USB interface printer is ready ON when the VPN is active. Blinking when the router suffers from the Dos(Denial of Service) attacks.
- Page 3 Vigor2600i LED Indicators Descriptions ACT (Activity) Blink when power is supplied to the router and the router is running normally. ON when the ISDN network is correctly setup. ISDN BLINKING when there is a successful remote connection on the ISDN BRI B1 / B2 channel.
- Page 4 Vigor2600G Descriptions LED Indicators ACT (Activity) Blink when power is supplied to the router and the router is running normally. ON when the QoS function is active. Printer ON when the USB interface printer is ready ON when the VPN is active. WLAN ON when the wireless LAN is ready.
- Page 5 Vigor2600Gi LED Indicators Descriptions ACT (Activity) Blink when power is supplied to the router and the router is running normally. ON when the ISDN network is correctly setup. ISDN BLINKING when there is a successful remote connection on the ISDN BRI B1 / B2 channel.
-
Page 6: Copyright Declarations
Copyright Copyright © 2003 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored Declarations in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks . -
Page 7: Be A Registered Owner
R&TTE Directive 99/5/EC. Web registration is preferred. You can register your Vigor router via http:// Be A Registered www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the Owner address found on the reverse side of the card. -
Page 8: Aim Of This Chapter
The Vigor2600 puls series all contain Annex A/Annex B models, please check if the package is suitble for your use by checking the information from bottom of Vigor2600 plus series router. Annex A : is for connecting to an analog POTS line... - Page 9 Manual UK-type power adapter EU-type power adapter USA/Taiwan-type power adapter AU/NZ-type power adapter...
- Page 10 RJ-11 to RJ-45(Annex B) Dutch/Swiss User RJ-11 to RJ-11(Annex A) RJ-45 to RJ-45 (Annex B,ISDN) RJ-45(Enternet) Antennas for G/Gi only Filter/Splitter(Optional)
-
Page 11: Dsl Parameters
DSL line Needed from Depending on the variant Vigor2600 plus series you purchased, the following DSL service must be available at your local premisses: For Annex A : A DSL service must be enabled on your POTS telephone line. For Annex B : A DSL service must be enabled on your ISDN telephone line. - Page 12 Example: VPI/VCI = 0/33 Protocol = PPPoA Encapsulation Method = VCMUX Modulation Method = G.DMT Username/Password Only for PPPoE/PPPoA mode users Fixed IP Address/ Subnet Mask/ Gateway IP Address Some ISP will use DHCP method to provide IP address for MPoA mode users, then users do not need to know the fixed IP address.
- Page 13 Connect the blue Ethernet cable between Vigor 2600 plus series ports P1/P2/ The wire installation P3/P4 and any wired PCs. Connect ADSL port to your ADSL-enabled telephone line. Remember that a Line Filter should be used for any telephones or fax machines also connected to the ADSL telephone line.
- Page 14 Install ‘ Router Tools ‘ This tool which provides “Smart StartWizard” Firmware Upgrade Program and TFTP client is in the attached CD. It supportsWindows, Mac OS 8/9 and Mac OS X. Moreover, it provides “Syslog Tool” for Windows system. For Vigor2600Gi/i models, there is vitual TA program for the usage of ISDN AP.
- Page 15 Using the Router Web Configurator Connect to router Start the web browser on a PC which is connected to the Vigor 2600 plus series router, and type http://192.168.1.1 into the address box of your browser. The following window will open. The factory default User name and password are Password null.
- Page 16 Use this function to automatically detect ATM/ DSL setting. Click the Auto detect Auto detect ATM/ ATM/DSL settings button, and follow the instructions until it asks whether you have a DSL Setting fixed IP or not. If your ISP has allocated you a fixed IP address, click to OK button. If your ISP has not allocated you a fixed IP address, click the Cancel button.
- Page 17 The Vigor2600 plus series provides up to 8 ADSL communication profiles (called Enable Multi-PVC Permanent Virtual Circuits). Click the Multi-PVCs menu option to enable one of the ADSL communication profiles. Place a tick in the Enable column of one of the channels to make the channel active, and enter the ADSL parameters according to the information provided by your ISP.
-
Page 18: Surfing Internet
For MPoA (RFC Select the Multi-PVC channel matching the enabled channel number on the Multi- 1483/2684) Users PVCs page. Enter the WAN IP address allocated by your ISP, or click Obtain an IP address automatically according to the information provided by your ISP. Click the OK button to save changes. -
Page 19: Wireless Lan Settings
MAC access control: disabled This can be convenient for initially establishing the link with wireless workstations - but DrayTek strongly recommends that you enable the built-in security as soon as practical. From the Router Web Configurators Main Menu, select Wireless LAN Setup. - Page 20 Click General Settings to configure the Service Set Identifier (SSID) and wireless General Settings channel. Mode: In Mixed(11b+11g) mode, the radio can support both IEEE802.11b and IEEE802.11g protocols simultaneously. In 11g-only mode, the radio only supports IEEE802.11g protocol. In 11b-only mode, the radio only supports IEEE802.11b protocol.
- Page 21 Security Settings Click Security Settings to configure the security options. Mode: To improve the security and privacy of your wireless data packets one of the following encryption feature can be used. - Disable:Thurn off the encryption mechanism. - WEP Only: Accepts only WEP clients and the encryption key should be entered in WEP Key.
- Page 22 WEP Encryption: Disable: Turns off the WEP encryption mechanism. n n n n n WEP 64 Bit: For 64bits WEP key, either 5 ASCII characters or n n n n n 10 hexadecimal digitals leading by 0x can be entered. For example ABCDE or 0x4142434445.
- Page 23 Enable Acces Control: Tick the Enable Access Control box to turn the MAC Address access control feature on. MAC Address: To type the specific MAC Address which could be added on, removed from or edited from the access list above. ADD: To add a MAC address on the list.
- Page 24 Trouble Shooting for “Can not get on to the Internet” This section will guide you through: What to check 1) Check that the power and LAN and telephone cables are connected correctly. 2) Check that the LAN from your PC to the router is working. 3) Check the ADSL settings (e.g.
-
Page 25: For Mac(Terminal)
Can you ping the The default gateway IP of the Router is 192.168.1.1. router from your PC? Please check that you can ping the Router correctly. For Windows Open the Command Prompt window (from the start menu, select Run... ) Enter command if you are using Windows 95, 98 or ME;... -
Page 26: For Windows Xp User
For Windows XP user 1. Enter Control Panel and double click Network Connections. 2. Right click LAN icon and choose Properties. 3. Choose TCP/IP and press Properties. 4. Select Obtain an IP address automatically. -
Page 27: For Windows 2000 User
For Windows 2000 user 1. Enter Control Panel and double click Network and Dial-up Connections. 2. Right click Local Area Connection and choose Properties. 3. Choose TCP/IP and press Properties. 4. Select Obtain an IP address automatically. - Page 28 For Windows 98/Me user 1. Enter Control Panel and double click Network. 2. Choose TCP/IP of LAN device and press Properties. 3. Choose Obtain an IP address automatically.
-
Page 29: For Mac Osx User
For Mac OS9.x user Control Panel >> TCP/IP For Mac OSX user System Preferences >> Network... - Page 30 Are DSL and ISP Connect to the router Web Configurator. (Example: Vigor2600) settings OK? Check if the DSL setting are correct. (For MPoA users, please refer to the MPoA explanation on page 18 ) >> VPI/VCI/Modulation mode: T1.413, G.Lite, G.DMT, Multimode >>Encapsulation mode: VCMUX or LLC/SNAP...
- Page 31 For PPPoE/PPPoA users, please check that the user name and password are correct, as provided by your ISP. For MPoA (RFC1483/2684) mode users, please check that the WAN IP / Gateway / Subnet mask is set correctly, or that your ISP requires using DHCP client to obtain IP address automatically.
- Page 32 If the router settings are correct, and the router still does not connect, please contact Report to ISP and your ISP technical support representative to help you for configuration. dealer technical support If the router does not work correctly, please contact your dealer for help. For any further questions, please e-mail support@draytek.com.tw.
