Summary of Contents for Draytek Vigor2600

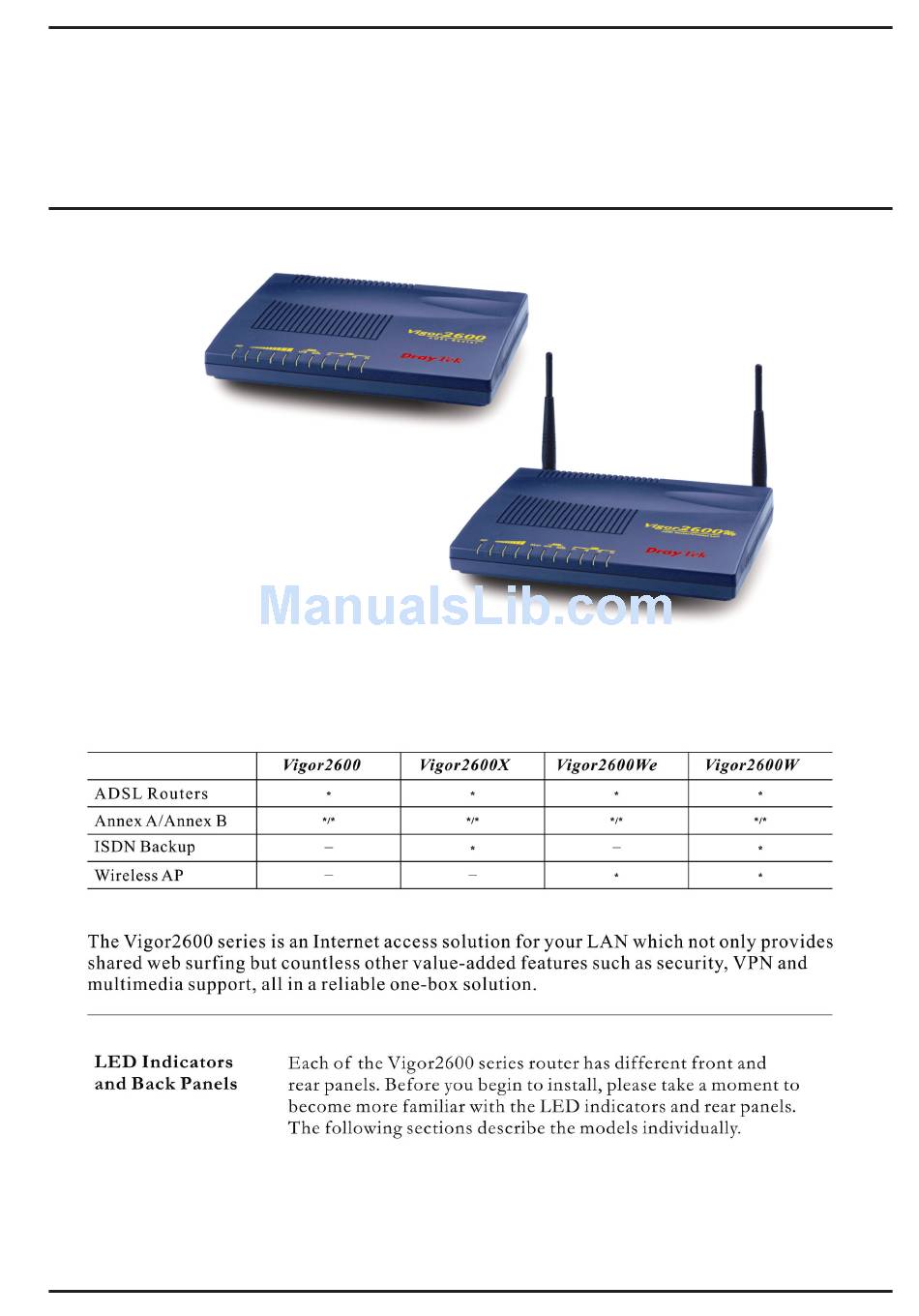

- Page 1 Vigor2600 Series Introduction...
- Page 2 Vigor2600...
- Page 3 Vigor2600X...
- Page 4 Vigor2600W...
- Page 5 Vigor2600We...
-
Page 6: Copyright Declarations
Copyright © 2002 All rights reserved. This publication contains information that is Copyright protected by copyright. No part may be reproduced, transmitted, transcribed, stored Declarations in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks . -
Page 7: Be A Registered Owner
R&TTE Directive 99/5/EC. Web registration is preferred. You can register your Vigor router via http:// Be A Registered www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the Owner address found on the reverse side of the card. -
Page 8: Aim Of This Chapter
Customer Service Department immediately. The Vigor2600 series all contain Annex A/Annex B models, please check if the package is suitble for your using. You can get the information from bottom of Vigor2600 series router. -
Page 9: Dsl Parameters
DSL line What you need from ISP Depending on the variant Vigor2600 series you purchased, the following DSL service must be available at your local premisses: ADSL/POTS : ADSL service must be enabled on your POTS telephone line. ADSL/ISDN : ADSL service must be enabled on your ISDN telephone line. -
Page 10: Local Networking
Example: VPI/VCI = 0/33 Protocol = PPPoA Encapsulation Method = VCMUX Modulation Method = G.DMT Username/Password Only for PPPoE/PPPoA mode users Fixed IP Address/ Subnet Mask/ Gateway IP Address Only for MPoA mode users. Some ISP will use DHCP method to provide IP address for MPoA mode users, then users do not need to know the fixed IP address. - Page 11 You must wire Ethernet port (between router and PC), DSL port and Power port as below:...
- Page 12 Install ‘ Router This tool which provides ‘Smart StartWizard’, ‘Firmware Upgrade Program’ Tools ‘ and ‘TFTP client’ is in the attached CD. It supportsWindows, Mac OS 8/9 and Mac OS X. Moreover, it provides “Syslog Tool” for Windows system. For Vigor2600X and Vigor2600W models, there is vitual TA program for the usage of ISDN AP.
-
Page 13: Enter Router Menu
Once past the password prompt, you will now see the router’s main menu: Enter Router Menu (Example: Vigor2600) Set DSL Parameters Click on ‘Internet Access Setup’ on the right-hand menu. You will find two items : PPPoE/PPPoA and MPoA (RFC 1483/2684). - Page 14 Enter your allocated username, password and DSL parameters according to the For PPPoE/PPPoA information provided by your ISP. Users If you want to connect to Internet all the time, you can check ‘Always On’. For MPoA (RFC Enter your allocated WAN IP address(or enabling DHCP client to get IP from 1483/2684) Users ISP) and DSL parameters according to the information provided by your ISP.
-
Page 15: Surfing Internet
Surfing Internet Once all previous steps are completed, you can surf Internet now. You can also monitor the connection condition via router management function. (Example: Vigor2600) Wireless LAN Wireless setting is for Vigor2600W and Vigor2600We only. Setting If you want to connect your wireless supported devices to Vigor2600W or... - Page 16 Wireless LAN Inter- The Vigor2600W and Vigor2600We are equipped with a wireless LAN interface face compliant with the 11Mbps IEEE 802.11b protocol. The features of wireless LAN capability enable high mobility of several simultaneous users accessing all LAN facilities just like on a wired LAN as well as Internet and WAN access. The Frequency Domain is set as Europe and the MAC address will show as above.
- Page 17 SSID (Service Set Identification): You should set the SSID same as your note book wireless card to allow the client PCs to access the network via the wireless LAN interface. The default SSID is "default". Channel: To select a wireless channel for Vigor2600W/2600We. The default channel is 6.
- Page 18 For additional security of wireless access, the Access Control allows you to restrict the Access Control of network access rights by the wireless LAN MAC address of client. Only the valid Wireless LAN Inter- MAC address which has been configured can allow to access the wireless LAN inter- face face.
-
Page 19: Trouble Shooting For ' Can Not Get On To The Internet'
Trouble Shooting for ‘ Can not get on to the Internet’ Check if the power and LAN line are connected correctly. After power is on, Check if the the ‘ ACT ‘ LED will blink once a second, and the correspondent LAN port hardware is OK? will light. - Page 20 The default gateway IP of router is 192.168.1.1. Please check if you can ping router correctly. For Windows For Mac(Terminal) If not, please check the IP address of your PC. We suggest you set ‘ get IP automatically ‘...
- Page 21 For Win98/ Me user 1. Enter “Control Panel” and double 2. Choose “TCP/IP of LAN device” and press “ click “Network”. Properties”. 3. Choose “Obtain an IP address automatically”...
- Page 22 For Win2000 user 1. Enter “Control Panel” and double click “Network and Dial-up Connections”. 4. Select “Obtain an IP address automatically” 2. Right click “Local Area Connection” and choose “Properties”. 3. Choose “TCP/IP” and press “Properties”.
- Page 23 For XP user 1. Enter “Control Panel” and double click “Network Connections”. 4. Select “Obtain an IP address automatically” 2. Right click LAN icon and choose “Properties”. 3. Choose “TCP/IP” and press “Properties”.
- Page 24 For Mac OS9.x user Control Panel —> TCP/IP System Preferences —> Network For Mac OSX user...
- Page 25 Are DSL/ ISP Connect to router Web Configurator. settings Ok? (Example: Vigor2600) Check if the setting of DSL is ok. (For MPoA users, please refer to the MPoA explanation on page 24 ) —> VPI/VCI/Modulation mode: T1.413, G.Lite, G.DMT, Mu ti-mode...
- Page 26 —>Encapsulation mode: VCMUX or LLC/SNAP For PPPoE/PPPoA user, please check if user name/ password provided by ISP are correct or not.
- Page 27 ADSL Internet connection. Please contact local still can not work ISP representatives to help you for configuration. If the router does not work correctly, please contact your dealer for help. For any further questions, please write email to support@draytek.com.tw.
