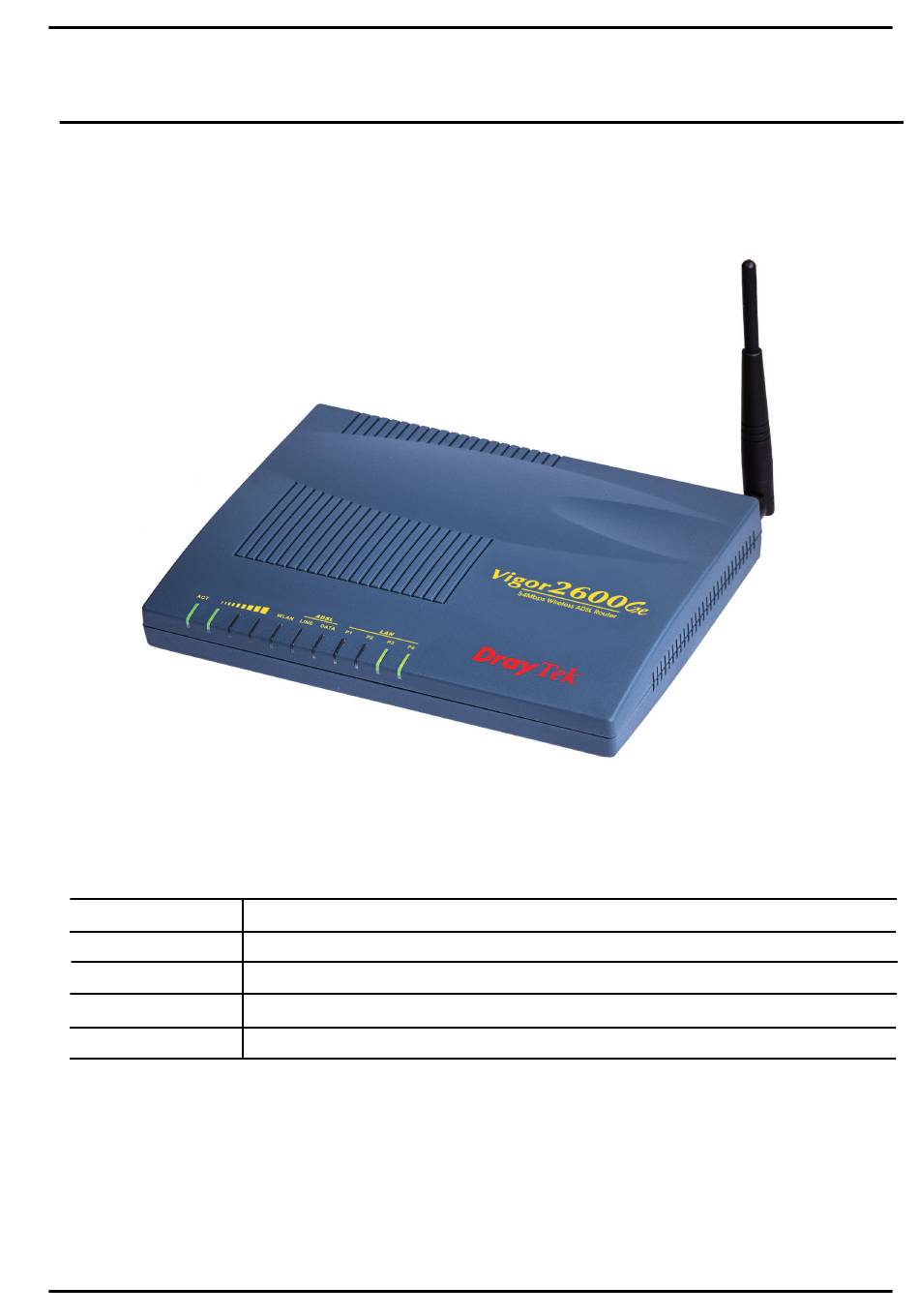

Brief Overview
ADSL Router
Annex A / Annex B
ISDN Backup
Wireless AP
The Vigor2600Ge WLAN ADSL router is an Internet access solution for your LAN which not only provides you
with shared web surfing but also countless other value-added features such as Firewall / Security, VPN, multimedia
support, and 54Mbps 802.11g Wireless LAN and all in a reliable one-box solution.
Vigor2600Ge introduction
Vigor2600Ge
*
* / *
_
*
1

Advertisement

Table of Contents
loading

Related Manuals for Draytek Vigor2600Ge

Summary of Contents for Draytek Vigor2600Ge

  • Page 1 ISDN Backup Wireless AP The Vigor2600Ge WLAN ADSL router is an Internet access solution for your LAN which not only provides you with shared web surfing but also countless other value-added features such as Firewall / Security, VPN, multimedia support, and 54Mbps 802.11g Wireless LAN and all in a reliable one-box solution.

  • Page 2: Led Indicators

    LED Indicators and Before you begin to install, please take a moment to become more familiar with the LED Back Panels indicators and rear panels. The following section describes the model. Vigor2600Ge Descriptions LED Indicators ACT (Activity) Blink when power is supplied to the router and the router is running normally.

  • Page 3: Copyright Declarations

    Copyright © Copyright 2004 All rights reserved. This publication contains information that is Declarations protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks .

  • Page 4: Be A Registered Owner

    France. Web registration is preferred. You can register your Vigor router via http:// Be A Registered www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the Owner address found on the reverse side of the card.

  • Page 5: Aim Of This Chapter

    Your router package should contain all these items. If any item is missing or damaged, contact your dealer or our Customer Service Department immediately. The Vigor2600Ge contain Annex A/Annex B models, please check if the package is suitble for your use by checking the information from bottom of Vigor2600Ge router.

  • Page 6: Package Contains

    Package Contains Manual UK-type power adapter EU-type power adapter USA/Taiwan-type power adapter AU/NZ-type power adapter...
  • Page 7 RJ-11 to RJ-45(Annex B) Dutch/Swiss User RJ-11 to RJ-11(Annex A) RJ-45 to RJ-45 (Annex B) RJ-45(Enternet) Antenna Filter/Splitter(Optional)
  • Page 8 DSL line Internet Cofiguration Requirements Depending on the variant Vigor2600Ge you purchased, the following DSL service must be available at your local premisses: For Annex A : A DSL service must be enabled on your POTS telephone line. For Annex B : A DSL service must be enabled on your ISDN telephone line.

  • Page 9: Local Networking

    Example: VPI/VCI = 0/33 Protocol = PPPoA Encapsulation Method = VCMUX Modulation Method = G.dmt Username/Password Only for PPPoE/PPPoA mode users Fixed IP Address/ Subnet Mask/ Gateway IP Address Some ISP will use DHCP method to provide IP address for MPoA mode users, then users do not need to know the fixed IP address.
  • Page 10 Connect the blue Ethernet cable between Vigor 2600Ge ports P1/P2/P3/P4 and The wire installation any wired PCs. Connect ADSL port to your ADSL-enabled telephone line. Remember that a Line Filter should be used for any telephones or fax machines also connected to the ADSL telephone line.
  • Page 11 Connecting the Router to the Internet via Quick Start Wizard DrayTek provides firmware/router tool CD with Vigor2600Ge. Please insert CD to your computer in order to run Quick Start Wizard which is an user- friendly application for setting up Internet access.
  • Page 12 The following window will open. The factory default User name and password are Password null. Press OK to continue. Enter Router Menu The router main menu is now displayed: (Example: Vigor2600Ge) Click on Internet Access Setup in the right-hand menu. Set DSL Parameters...
  • Page 13 Use this function to automatically detect ATM/ DSL setting. Click the Auto detect Auto detect ATM/ ATM/DSL settings button, and follow the instructions until it asks whether you have a DSL Setting fixed IP or not. If your ISP has allocated you a fixed IP address, click to OK button. If your ISP has not allocated you a fixed IP address, click the Cancel button.
  • Page 14 For PPPoE/PPPoA Enter the username, password and DSL parameters given by your ISP. Users To connect to Internet all the time, check Always On. Click the OK button to save changes.

  • Page 15: Surfing Internet

    Enter the WAN IP address allocated by your ISP, or click Obtain an IP address For MPoA (RFC automatically according to the information provided by your ISP. 1483/2684) Users Click the OK button to save changes. You should be able to surf the Internet now from all PCs connected to the Vigor 2600 Surfing Internet You can also monitor the connection condition via the router Online Status option from the main Menu.

  • Page 16: Wireless Lan Settings

    Wireless LAN settings Wireless LAN Inter- The Vigor2600Ge is equipped with a wireless LAN interface compliant with the face 54Mbps IEEE 802.11g protocol. The features of wireless LAN capability enable high mobility of several simultaneous users accessing all LAN facilities Default Wireless As supplied, the Vigor2600Ge wireless LAN is enabled, but without any security.
  • Page 17 SSID can be any text numbers and various special characters. The default SSID is "default". Channel: Select a wireless channel for Vigor2600Ge. The default channel is 6. Hide SSID: Check to hide the SSID from wireless sniffers, and so make it...
  • Page 18 Security Settings Click Security Settings to configure the security options. Mode: To improve the security and privacy of your wireless data packets one of the following encryption feature can be used. - Disable:Thurn off the encryption mechanism. - WEP Only: Accepts only WEP clients and the encryption key should be entered in WEP Key.
  • Page 19 WEP Encryption: n n n n n Disable: Turns off the WEP encryption mechanism. n n n n n WEP 64 Bit: For 64bits WEP key, either 5 ASCII characters or 10 hexadecimal digitals leading by 0x can be entered. For example ABCDE or 0x4142434445.
  • Page 20 Enable Acces Control: Tick the Enable Access Control box to turn the MAC Address access control feature on. MAC Address: To type the specific MAC Address which could be added on, removed from or edited from the access list above. ADD: To add a MAC address on the list.
  • Page 21 Trouble Shooting for “Can not get on to the Internet” This section will guide you through: What to check 1) Check that the power and LAN and telephone cables are connected correctly. 2) Check that the LAN from your PC to the router is working. 3) Check the ADSL settings (e.g.

  • Page 22: For Mac(Terminal)

    Can you ping the The default gateway IP of the Router is 192.168.1.1. router from your PC? Please check that you can ping the Router correctly. For Windows Open the Command Prompt window (from the start menu, select Run... ) Enter command if you are using Windows 95, 98 or ME;...
  • Page 23 For Windows XP user 1. Go to Control Panel and then double-click 3. Select on Internet Protocol (TCP/IP) and click on Network Connections. Properties. 2. Right-click on Local Area Connection and Double- 4. Select Obtain an IP address automatically and click on Properties.
  • Page 24 For Windows 2000 user 3. Select Internet Protocol (TCP/IP) and 1.Go to Control Panel and then double-click click Properties. on Network and Dial-up Connections. 2. Right-click on Local Area Connection and 4. Select Obtain an IP address automatically and double-click on Properties. Obtain DNS server address automatically.
  • Page 25 For Windows 98/Me user 3. Click on the IP Address tab and select Obtain 1. Go to Control Panel and double-click on an IP address automatically. Network. 2. Select TCP/IP of LAN device and click the Properties.
  • Page 26 For Mac OS9.x user Control Panel >> TCP/IP For Mac OSX user System Preferences >> Network...
  • Page 27 Are DSL and ISP Connect to the router Web Configurator. settings OK? Check if the DSL setting are correct.(For MPoA user, please refer to the MPoA explanation on page 15) >> VPI/VCI/Modulation mode: T1.413, G.Lite, G.DMT, Multimode >>Encapsulation mode: VCMUX or LLC/SNAP...
  • Page 28 For PPPoE/PPPoA users, please check that the user name and password are correct, as provided by your ISP. For MPoA (RFC1483/2684) mode users, please check that the WAN IP / Gateway / Subnet mask is set correctly, or that your ISP requires using DHCP client to obtain IP address automatically.
  • Page 29 If the router settings are correct, and the router still does not connect, please contact Report to ISP and your ISP technical support representative to help you for configuration. dealer technical support If the router does not work correctly, please contact your dealer for help. For any further questions, please e-mail support@draytek.com.tw.
