Vigor2600 V Series introduction
ADSL Routers
Annex A / Annex B
ISDN Backup
Wireless AP
VoIP
The Vigor2600 V series is an Internet access solution for your LAN which not only provides shared web surfing
but countless other value-added features such as Firewall / Security, VPN, multimedia support, USB interface
printer server, and 54Mbps 802.11g Wireless LAN and VoIP all in a reliable one-box solution.
LED Indicators and
Back Panels

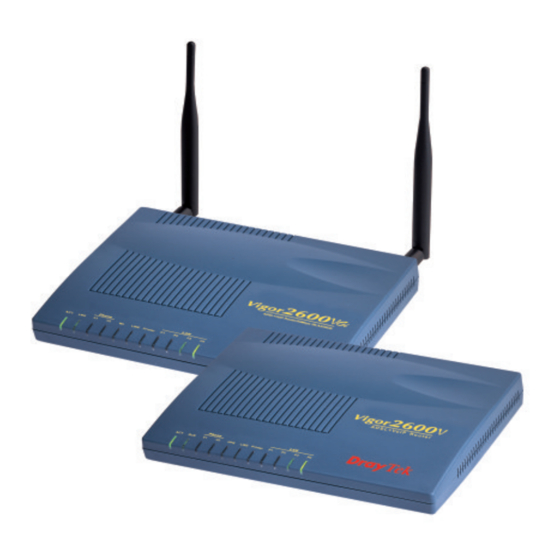

Vigor2600 V
*
* / *
_
_
*
Each of the Vigor2600 V series router has different front and rear panels. Before you begin
to install, please take a moment to become more familiar with the LED indicators and rear
panels. The following sections describe the models individually.
Vigor2600VGi
Vigor2600VG
*
* / *
_
*
*
1
Vigor2600Vi
*
*
* / *
* / *
*
_
*
*
*
*
Advertisement
Table of Contents
Related Manuals for Draytek Vigor2600VG
Summary of Contents for Draytek Vigor2600VG
- Page 1 Vigor2600 V Series introduction Vigor2600VGi Vigor2600Vi Vigor2600VG Vigor2600 V ADSL Routers Annex A / Annex B * / * * / * * / * * / * ISDN Backup Wireless AP VoIP The Vigor2600 V series is an Internet access solution for your LAN which not only provides shared web surfing but countless other value-added features such as Firewall / Security, VPN, multimedia support, USB interface printer server, and 54Mbps 802.11g Wireless LAN and VoIP all in a reliable one-box solution.
-
Page 2: Led Indicators
Vigor2600V LED Indicators Descriptions Blink when power is supplied to the router and the router is running normally. ACT (Activity) ON when the QoS function is active. ON when you off hook the phone Phone(V1, V2) Blink when a phone call coming ON when the VPN is active. - Page 3 Vigor2600VG Descriptions LED Indicators ACT (Activity) Blink when power is supplied to the router and the router is running normally. ON when the QoS function is active. ON when you off hook the phone Phone(V1, V2) Blink when a phone call coming ON when the wireless LAN is ready ON when the ADSL line is showtime.
- Page 4 Vigor2600VGi Descriptions LED Indicators ACT (Activity) Blink when power is supplied to the router and the router is running normally. Blinking when thre is a successful remote connection on the ISDN BRI B1 / B2 channel. ON when the ISDN network is correctly setup. ON when you off hook the phone Phone(V1, V2) Blink when a phone call coming...
- Page 5 Vigor2600Vi LED Indicators Descriptions ACT (Activity) Blink when power is supplied to the router and the router is running normally. Blinking when thre is a successful remote connection on the ISDN BRI B1 / B2 channel. ON when the ISDN network is correctly setup. ON when you off hook the phone Phone(V1, V2) Blink when a phone call coming...
-
Page 6: Copyright Declarations
Copyright Copyright © 2003 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored Declarations in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks . -
Page 7: Be A Registered Owner
R&TTE Directive 99/5/EC. Web registration is preferred. You can register your Vigor router via http:// Be A Registered www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the Owner address found on the reverse side of the card. -
Page 8: Aim Of This Chapter
Vigor2600 V Series Quick Start Guide Aim of this Quickly connect your router to the Internet chapter Delivery check Check your router package for the following items : The Router 1 printed Quick Start Guide with warranty/ registration card 1 CD includes detailed User Manual in electronic form, released firmware and utilities 1 AC power supply adapter (black) 1 Ethernet LAN cable (blue) for connection to a computer or hub... - Page 9 Manual UK-type power adapter EU-type power adapter USA/Taiwan-type power adapter AU/NZ-type power adapter...
- Page 10 RJ-11 to RJ-45(Annex B) Dutch/Swiss User RJ-11 to RJ-11(Annex A) RJ-45 to RJ-45 (Annex B,ISDN) RJ-45(Enternet) Filter/Splitter(Optional) Antennas for VG/VGi only...
-
Page 11: Dsl Parameters
DSL line What you need from ISP Depending on the variant Vigor2600V series you purchased, the following DSL service must be available at your local premisses: ADSL over POTS [Annex A] ADSL service must be enabled on your POTS telephone line. ADSL over ISDN [Annex B] ADSL service must be enabled on your ISDN telephone line. -
Page 12: Local Networking
Example: VPI/VCI = 0/33 Protocol = PPPoA Encapsulation Method = VCMUX Modulation Method = G.DMT Username/Password Only for PPPoE/PPPoA mode users Fixed IP Address/ Subnet Mask/ Gateway IP Address Only for MPoA mode users. Some ISP will use DHCP method to provide IP address for MPoA mode users, then users do not need to know the fixed IP address. - Page 13 The wire installation Ethernet port (between router and PC), DSL port and Power port as below:...
- Page 14 Install ‘ Router Tools ‘ This tool which provides “Smart StartWizard” Firmware Upgrade Program and FTP client is in the attached CD. It supports Windows, Mac OS 8/9 and Mac OS X. Moreover, it provides “Syslog Tool” for Windows system. For Vigor2600Vi / VGi models, there is virtual TA program for the usage of ISDN AP.
-
Page 15: Enter Router Menu
The default password is null. You can press “OK” to skip it. Password Enter Router Menu Once past the password prompt, you will now see the router’s main menu: (Example: Vigor2600V) Set DSL Parameters Click on ‘Internet Access Setup’ on the right-hand menu. You will find three items : PPPoE/PPPoA ,MPoA (RFC 1483/2684), and Multi- PVCs. - Page 16 Then click Multi-PVCs to Enter your DSL parameters according to the information provided by your ISP. Please select "UBR" QoS Type if your ISP only support one PVC channel on ADSL line. Then you can continually enter setting menu according to the protocol which ISP assigns.
- Page 17 For MPoA (RFC Select your active PVC channel by Multi-PVC channel item. 1483/2684) Users Enter your allocated WAN IP address(or enabling DHCP client to get IP from ISP) and DSL parameters according to the information provided by your ISP. Auto detect ATM/ You can also use this function to detect ATM/ DSL setting.
- Page 18 Example for PPPoA: It should now have detected the settings: You can set/edit these manually when adding your ISP account details. Type in the ISP name as well as the Username/Password provided by them. Also, you probably want to tick the "Always On" box as there's no reason to disconnect the router when you're not using the Internet.
-
Page 19: Surfing Internet
Once all previous steps are completed, you can surf Internet now. You can also monitor the connection condition via router management function. (Example: Vigor2600V) Wireless LAN If you want to connect your wireless supported devices to Vigor2600VGi or Setting Vigor2600VG, you need to configure the router before you start to use it. -
Page 20: Wireless Lan Interface
Wireless LAN The Vigor2600VGi and Vigor2600VG are equipped with a wireless LAN interface Interface compliant with the 54Mbps IEEE 802.11g protocol. They are also interoperable with 802.11b compliant wireless devices. The features of wireless LAN capability enable high mobility of several simultaneous users accessing all LAN facilities just like on a wired LAN as well as Internet and WAN access. - Page 21 SSID(Service Set Identification): You should set the SSID same as your note book wireless card to allow the client PCs to access the network via the wireless LAN interface. The default SSID is "default". Channel: To select a wireless channel for Vigor2600Gi / Vigor2600G. The default channel is 6.
- Page 22 For additional security of wireless access, the Access Control allows your to restrict the Access Control of network access rights by the wireless LAN MAC address of client. Only the valid MAC Wireless LAN address which has been configured can allow to access the wireless LAN interface. Interface Enable Access Control: To check the Enable Access Control to enable the MAC Address access control feature.
- Page 23 VoIP Settings After you click VoIP Settings link, you will enter the page like following: Fig. 1 The VoIP setting page DialPlan Setup Click the Dial-Plan Setup, you can setup speed dial phone book up to sixty entries. Fig. 2 DialPlan setup page...
- Page 24 Click each index number to edit fields. Fig. 3 DialPlan edit page Enable: to enable this entry for mapping phone number when you dial the keypad on the phone. Phone Number: a speed dial number.you can choose any number from 0~9 and* Name: This field can fill with name(when using SIP protocol) or number.The number or name you filled must be the same as called party’s setting.
- Page 25 Sip related function setup Fig. 4 SIP Related Function Setup Page SIP Port: The port number used to send/receive sip message for build a session. The default value is 5060, you can change to other number but it needs other party also change to the same number.
- Page 26 Name: You can enter a name or a number in this field. this field is the name part of sip url. Password: enter the password when you use a sip registrar server which needs password. Expire Time: The time duration that sip registrar server keep your registration record.
- Page 27 Packet Size: the amount of data contains in a single packets. The default value is 20 ms, it means the data packet will contains 20 ms voice information. The more data contains in a single packet the less overhead it create but may increase . DTMF InBand: Choose this one then the 2600V will send the DTMF tone as audio directly when you press the keypad on the phone DTMF OutBand: Choose this one then the 2600V will capture the keypad number...
- Page 28 Calling scenario There are two people ,say Kevin and Aaron. They both have 2600V in hand, so here’s their settings in order to call each other. Kevin’s IP address is :214.61.172.53 Aaron’s IP address is : 203.69.175.19 1. Kevin’s setting: 1-1 DialPlan index 1 Phone Number: 1234 (any number you like) Name: aaron...
-
Page 29: Trouble Shooting For Can Not Get On To The Internet
Trouble Shooting for Can not get on to the Internet’ Check if the power and LAN line are connected correctly. After power is on, Check if the the ‘ACT‘ LED will blink once a second, and the correspondent LAN port hardware is OK? will light. -
Page 30: For Windows
The default gateway IP of router is 192.168.1.1. Please check if you can ping router correctly. For Windows For Mac(Terminal) If not, please check the IP address of your PC. We suggest you set ‘ get IP automatically ‘... - Page 31 For Windows 98/Me user 1. Enter “Control Panel” and double 2. Choose “TCP/IP of LAN device” and press “ click “Network”. Properties”. 3. Choose “Obtain an IP address automatically”...
- Page 32 For Windows 2000 user 1. Enter “Control Panel” and double click “Network and Dial-up Connections”. 4. Select ‘Obtain an IP address automatically’ 2. Right click “Local Area Connection” and choose “Properties”. 3. Choose “TCP/IP” and press “Properties”.
- Page 33 For Windows XP user 1. Enter “Control Panel” and double click “Network Connections”. 4. Select “Obtain an IP address automatically” 2. Right click LAN icon and choose “Properties”. 3. Choose “TCP/IP” and press “Properties”.
- Page 34 For Mac OS9.x user Control Panel —> TCP/IP For Mac OSX user System Preferences —> Network...
- Page 35 Are DSL/ ISP Connect to router Web Configurator. settings Ok? (Example: Vigor2600) Check if the setting of DSL is OK. (For MPoA users, please refer to the MPoA explanation on page 12 ) —> VPI/VCI/Modulation mode: T1.413, G.Lite, G.DMT, Multimode...
- Page 36 —>Encapsulation mode: VCMUX or LLC/SNAP For PPPoE/PPPoA user, please check if user name/ password provided by ISP are correct or not.
- Page 37 ADSL Internet connection. Please contact local still can not work ISP representatives to help you for configuration. If the router does not work correctly, please contact your dealer for help. For any further questions, please write email to support@draytek.com.tw.
