- Page 2 We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from a DrayTek authorized dealer in the UK/Ireland.
- Page 3 The outside of the product’s box will state the region compatibility (e.g. “Applied Region: UK”). If you are unsure, check with DrayTek or your supplier. The use of unofficial components (e.g. PSUs) or adapting interfaces or the use of unauthorized software/firmware may cause malfunction, product damage or personal danger and invalidates your warranty and access to support services.
- Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2620 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.draytek.com.tw/ftp/Vigor2620/Document/CE/ Manufacturer: DrayTek Corp. Address: No.
-
Page 5: Table Of Contents
Table of Contents 1. Introduction ......................1 2. Package Contents ....................2 3. Panel Explanation ....................3 3.1 Vigor2620L ..........................3 3.2 Vigor2620Ln ..........................5 4. Installing your Vigor 2620 router ................. 7 4.1 Network Connection via LTE ...................... 7 4.2 Network Connection via ADSL/VDSL.................. -
Page 6: Introduction

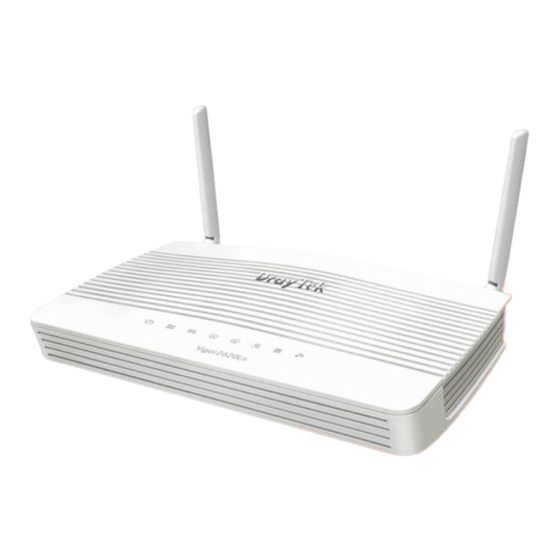

The Vigor2620 LTE series is an LTE, ADSL/VDSL2 or Ethernet router / firewall with multi-subnet capability. Each WAN type can be used as the main Internet connection or as a backup. If the router’s Internet connection goes offline, the backup interface is activated to resume Internet connectivity. Use the integrated 3G/4G LTE modem with dual SIM slots (SIM1 main &... -
Page 7: Package Contents
DrayTek Vigor 2620 Series Router LTE Antenna RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Connects to your PC or Switch) (Connects to your DSL line) Quick Start Guide UK Power Adapter Important Remove the protective film from the router before use to ensure Note ventilation. -
Page 8: Panel Explanation
Status Explanation The router is powered off Blinking The router is powered on and running normally The router is ready to access Internet The router is not ready to access Internet Blinking Slowly: DSL not currently synchronizing or not detected Quickly: DSL connection is synchronizing DSL connection synchronised Blinking... - Page 9 Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press gently and hold for more than 5 seconds. When the ACT LED blinks rapidly, release the button and the router will restart with its factory default configuration.
-
Page 10: Vigor2620Ln
Status Explanation The router is powered off Blinking The router is powered on and running normally The router is ready to access Internet The router is not ready to access Internet Blinking Slowly: DSL not currently synchronizing or not detected Quickly: DSL connection is synchronizing DSL connection synchronised Blinking... - Page 11 Interface Description Wireless LAN WLAN On - Press the button and release it within 2 seconds. ON/OFF/WPS When the wireless function is enabled, the green LED will be WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.
-
Page 12: Installing Your Vigor 2620 Router
Before installing the SIM cards, turn the router off. Do not attempt installation Unscrew the SIM card cover plate and keep it while the router is powered on. aside for reinstallation. When installing SIM cards, ensure that the SIM card contacts are facing downwards, with the notch on the left side: The SIM card slots are designed for Standard size SIM cards only, fitting a Mini or Micro SIM without a Standard size SIM card adapter could result in damage to the... -
Page 13: Network Connection Via Adsl/Vdsl
Power Supply: Connect the power adapter to the Vigor 2620’s PWR socket on the rear and plug the power adapter into a suitable mains socket. Turn the Vigor 2620 on using its power switch. The router will start up. After completing the system test, the ACT LED will light up and start blinking once per second to indicate that it is ready for use. -
Page 14: Wall-Mounted Installation
Modem/DSL Modem/Media Converter to the WAN port of the router with Ethernet cable (RJ-45). DrayTek Vigor 2620 series routers have keyhole type mounting slots on the underside to hang the router on, using screws attached to a wall or other surface. -
Page 15: Setup & Configuration
If the instructions in this quick start guide do not allow you to get online with your ISP or type of Internet connection, there are additional Support Articles available from www.draytek.co.uk Note To access the router, your PC will need to either get its IP address using DHCP or have an IP address in the 192.168.1.x range. - Page 16 This is from Microsoft Edge: Most other browsers will present equivalent warnings. In each case, following the prompts/links will allow you to access the router's web interface. It is still encrypted with SSL/TLS. Note This warning appears because the router's default certificate is 'self-signed' rather than issued to you by a certificate authority who has verified your identity.
- Page 17 Note If you cannot access the web interface, please go to the “Trouble Shooting” section in the User Guide to determine the cause of and solve your problem. Upon successful login, the router will display the Dashboard, which shows a summary of the router model, WAN status, front panel port status and other information: Note...
-
Page 18: Wan1 - Adsl And Vdsl2 Connection Setup
The WAN1 interface of the Vigor 2620 router can connect to either an ADSL / ADSL2+ connection or a VDSL2 connection. If your Internet connection uses VDSL2 and your ISP has supplied you with a Username and Password to connect to the Internet, go to section 5.2.1 PPPoE connection with FTTC VDSL2 If your Internet connection uses VDSL2 and your ISP does not supply or require a Username and Password to connect to the Internet, go to section... - Page 19 Openreach VDSL2 network, if your ISP operates on a different VDSL2 network, this tag value may differ; please check with your ISP or the DrayTek UK Knowledgebase for ISP specific guides. Click OK on that page to apply the changes.
- Page 20 3. Go to [WAN] > [Internet Access] Firstly set the WAN1 Access Mode to PPPoE / PPPoA, then click the Details Page button to proceed: 4. On the PPPoE / PPPoA settings tab: Select the Enable radio button at the top of the page to ensure that the PPPoE interface is enabled.
- Page 21 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. 5. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and PPP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully: Note If the WAN 1 IP address displayed begins with 172.16.x.x, it’s...
- Page 22 Please note that this value is correct for ISPs that operate over the Openreach VDSL2 network, if your ISP operates on a different VDSL2 network, this tag value may differ; please check with your ISP or the DrayTek UK Knowledgebase for ISP specific guides.
- Page 23 Click OK on that page to apply the changes. 3. Go to [WAN] > [Internet Access] Firstly set the WAN1 Access Mode to MPoA / Static or Dynamic IP, then click the Details Page button to proceed: 4. In the MPoA / Static or Dynamic IP settings: Select the Enable option and select Obtain an IP address automatically which will obtain an IP from the ISP...
-
Page 24: Pppoa Connection With Adsl / Adsl2
5. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and DHCP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully: 1. Go to [WAN] > [Internet Access] Firstly set the WAN1 Access Mode to PPPoE / PPPoA, then click the Details Page button to proceed:... - Page 25 2. On the PPPoE / PPPoA settings tab: The details for the VPI and VCI settings for ADSL should be correct for UK usage, with 0 and 38 being the defaults. In most cases, it will not be necessary to change these. ...
-
Page 26: Wan2 - Ethernet Connection Setup
Note If the WAN 1 IP address displayed begins with 172.16.x.x, it’s possible that the ISP has not accepted the supplied Username and Password for the Internet connection. Check that the ISP Access Setup - Username and Password match the details supplied by your ISP. –... -
Page 27: Enabling The Ethernet Wan Port
The Vigor 2620 router uses the P2 port to connect to an Ethernet based Internet connection. In its default state, the P2 port operates as a standard LAN port and the WAN2 (Ethernet WAN) options cannot be selected in the router’s web interface. To enable the router’s Ethernet WAN port on port P2 instead of LAN mode: 1. - Page 28 Once the router has restarted, the WAN2 – Ethernet WAN interface can be configured on the router, which is demonstrated in the following two sections. Note To reconfigure the P2 port for LAN use, go to [WAN] > [General Setup] > [WAN2] and set the Enable option to No. Once the router has been restarted to apply the change, the port will operate in LAN mode.
-
Page 29: Pppoe
This connection method will typically be used with a modem such as the Vigor 130 VDSL2 modem, which passes through the PPPoE connection from the ISP to the router. 1. Go to [WAN] > [Internet Access] Firstly set the WAN2 Access Mode to PPPoE, then click the Details Page button to proceed: 2. -
Page 30: Static Or Dynamic Ip
Once the router has restarted, log back into the web interface and select [Online Status] > [Physical connection], if it has connected, the relevant WAN Interface status text will be in green along with an IP address which indicates that the connection is active and ready for use. - Page 31 Click OK on this page to apply the changes and the router will then prompt to restart. Click to restart the router. Once the router has restarted, log back into the web interface and select [Online Status] > [Physical connection], if it has connected, the relevant WAN Interface status text will be in green along with an IP address which indicates that the connection is active and ready for use.
-
Page 32: Lte Wan Configuration
The LTE WAN interface of the Vigor 2620Ln router can connect directly to a mobile broadband network and operate as either a main internet connection or a backup internet connection. The modem is integrated into the router instead of using a separate USB modem and requires a SIM card to connect to the mobile broadband network required. - Page 33 If the 4G / LTE internet connection will be used as the primary connection, set the Active Mode to Always On If the connection will be used as a backup internet connection to the DSL / Ethernet connection, set the Active Mode to Failover Click OK to save those changes.
- Page 34 Set the 3G/4G USB Modem(DHCP mode) setting to Enable Set the SIM PIN code only if there is a PIN configured on the sim, otherwise leave this field blank Network Mode defaults to 4G/3G which will auto-select the network type to connect to and will use whichever mode the base station recommends.
- Page 35 [Online Status] > [Physical Connection] displays active connection details for the LTE WAN interface. If the details are displayed in red text, the LTE internet connection is down. When the LTE details text shows in green, the router will be able to use that WAN interface for internet access.
- Page 36 Additional details on the LTE modem status can be found under [LTE] > [Status]:...
-
Page 37: Getting Further Help
These are covered in the main user manual (available on the Downloads page) and also the online knowledgebase. Now that you have your DrayTek product, you should keep up to date with product updates (firmware), security advisories and other product news, advice or special offers. -
Page 38: Firmware Updates
- simple mistakes which could then be exploited by others. We've produced our free guide "Router Best Practice" which contains essential information for anyone installing, configuring or using a broadband router or wireless LAN. Available to download: https://www.draytek.co.uk/best...
