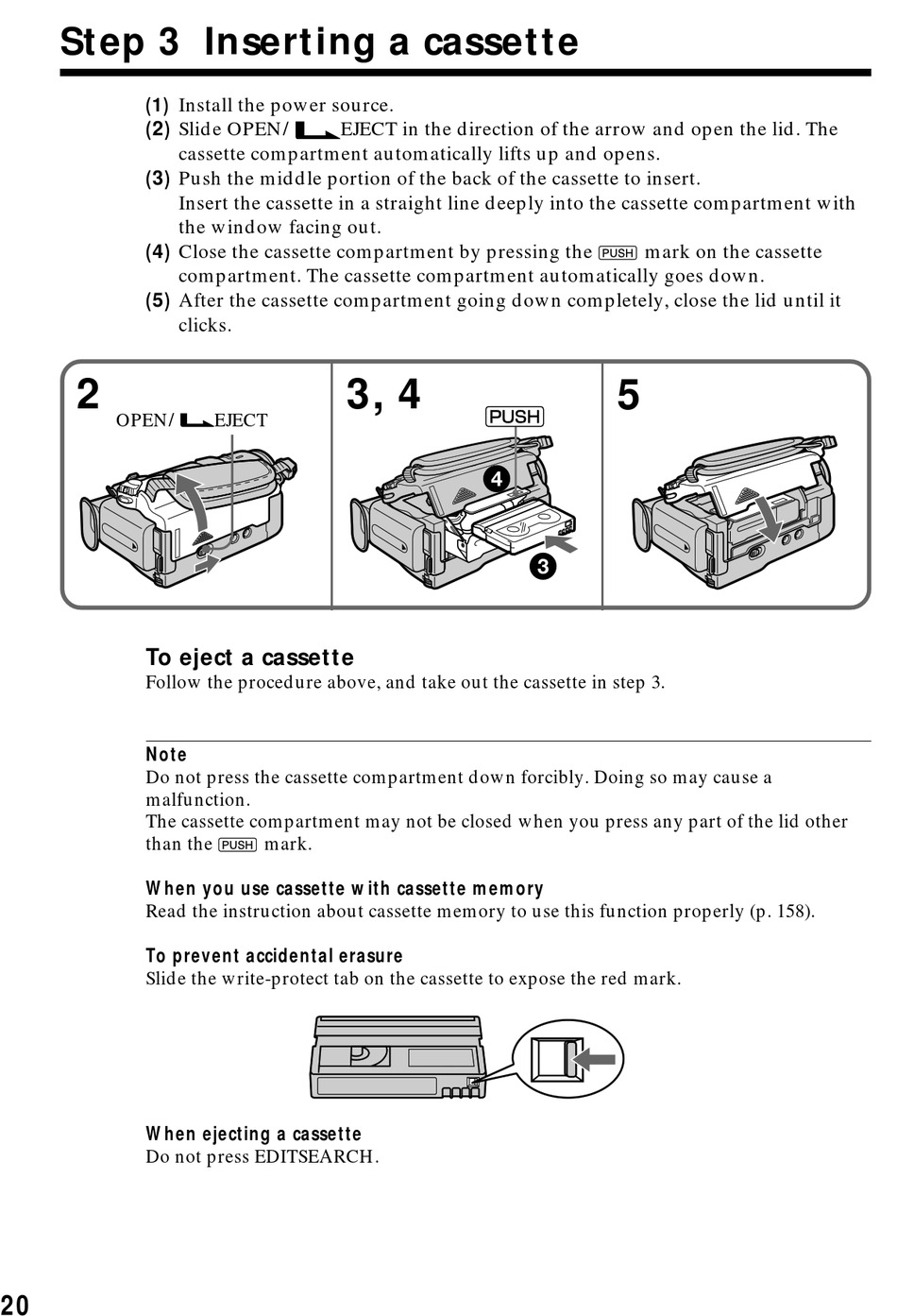

Step 3 Inserting a cassette

(1)
(2) Slide OPEN/
(3) Push the middle portion of the back of the cassette to insert.
(4) Close the cassette compartment by pressing the
(5) After the cassette compartment going down completely, close the lid until it
2
OPEN/
To eject a cassette
Follow the procedure above, and take out the cassette in step 3.
Note
Do not press the cassette compartment down forcibly. Doing so may cause a
malfunction.
The cassette compartment may not be closed when you press any part of the lid other
than the
When you use cassette with cassette memory
Read the instruction about cassette memory to use this function properly (p. 158).
To prevent accidental erasure
Slide the write-protect tab on the cassette to expose the red mark.
When ejecting a cassette
Do not press EDITSEARCH.
20
Install the power source.
EJECT in the direction of the arrow and open the lid. The
cassette compartment automatically lifts up and opens.
Insert the cassette in a straight line deeply into the cassette compartment with
the window facing out.
compartment. The cassette compartment automatically goes down.
clicks.
3, 4
EJECT
mark.
mark on the cassette
5
4
3
