FEIYUTECH SPG Instruction Manual

Instruction Manual

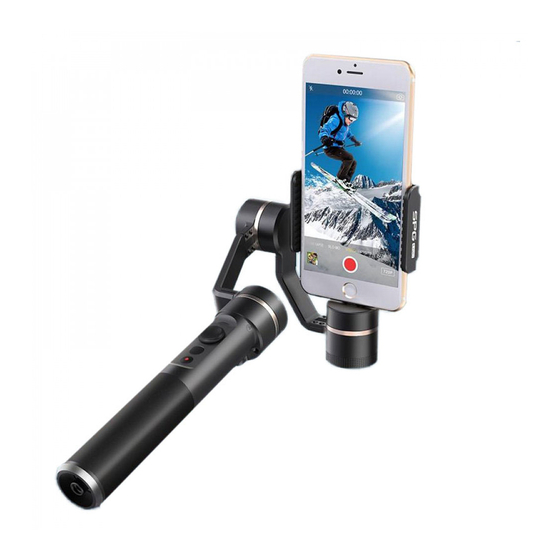

3-Axis Video Stabilized Handheld Gimbal for iPhone
iPhone 6s Plus / 6s / 6 Plus / 6
iPhone SE / 5s / 5c / 5
GuiLin FeiYu Technology Incorporated Company

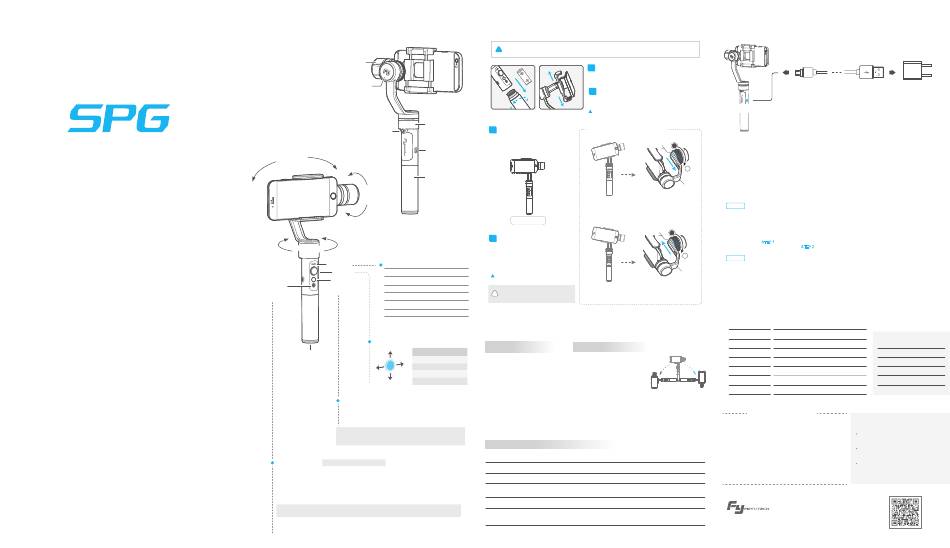

1. Product Overview
* The showing smartphone is only
for reference
Tilting axis
Rolling axis
Panning axis
1/4 inch
screw hole
USB port
Rolling
Handle
Tilting
Panning
360°
Indicator
Indicator Status
Joystick
Blue light flashes once
Function
Blue light flashes twice
Bluetooth
button
shutter Blue light flashes for three times
(ON / OFF)
Blue light constant on
Blue light keeps flashing
Red light flashes three times
Red light keeps flashing
Joystick
Joystick
1/4 inch screw hole
Up
Down
Left
Right
Function Button
You can using the function button to switch the working mode, power
on or power off the gimbal.
Please refer to "Modes / Functions".
ON: Long press Function Button and release it until the green light is on.
OFF：Long press Function Botton and release it until the red light changes
from quick flashing to constant.
Bluetooth Shutter Bluetooth name: FY_SPG
Tips: Make sure the volume "+" key of your iPhone can control the shooting.
After connecting with bluetooth , the button can be used as shutter function and the gimbal indicator will
blinks a green light every 10 seconds.
Connecting steps:
(1)Turn on the bluetooth of your iPhone. (2) Connect your iPhone with "FY_SPG".
(3) It can act as a mobile phone camera shutter after a successful connection.
When you change your iPhone, please first shutdown Bluetooth of the previous one, then start Bluetooth
pairing for the new one. 10 pieces of pairing info can be stored in this product.
Bluetooth pairing information clear: In boot-up state, long press the Bluetooth Shutter of the gimbal
until the red light is on to clear all the bluetooth pairing info. After clearing, iPhone paired previously need
to ignore "FY_SPG" first, then shutdown the Bluetooth of iPhone and reopen it to pair anew.
2. User Guide
(1) Please install the iPhone before powering on the gimbal
Attention !
!
(2) Please turn off the power when the gimbal is not in use, then remove the iPhone
Install the battery
1
Remove the handle and insert one 22650 battery into it.
Install the iPhone
2
Attach the iPhone by the quick-release adapter, and ensure it
is secure.
1 2
Tips: Please take off the protective casing of the iPhone
before installation.
How to balance adjustment
3 Balance Adjustment
In order to achieve in a better performance of
the gimbal, please try to adjust the iPhone
installation to the best balance.
If the iPhone tilted to the right,
the cross arm to the left, try to adjust to the best balance then
tight it.
Best balance
4 Power on / off
Power on： Long press Function Button and
release it until the green light is on.
Power off：Long press Function Botton and
release it until the red light changes from quick
Mode / Status
flashing to constant.
Panning mode
Attention: Turn the gimbal on after ensuring
Panning and
the iPhone is secure.
Tilting mode
If the battery power is too low, the red light will If the iPhone tilted to the left,
Standby
!
flash 3 times every 5 seconds. Please shut
the cross arm to the right, try to adjust to the best balance then
down the gimbal in time, and recharge or
Lock mode / Initializing
tight it.
replace the battery.
Initialization failure /
Malfunction
Low battery
Entering standby /
Entering power off
3. Modes / Functions
Working Modes
Other Functions
Camera lens
Panning Mode Panorama
Down
The phone can move to left or right smoothly Convenient for the iPhone users to
Up
along with the handheld moving. The tilting shot panorama photo.
Left
and rolling directions fixed.
As shown, roll the gimbal slowly to the
* Boot default mode: Panning mode
Right right (or left) 90°, the rolling axis
automatically follow to the right (or left)
Panning and Tilting Mode
is rotated by 90°.
The phone can move to left or right and tilt up
Reset
and down smoothly along with the handheld
moving. The rolling directions fixed.
Reset the tilting axis of the gimbal to initial orientation and initial mode.
Lock Mode Standby
The phone stays in its current orientation. In standby mode, keep the gimbal in power-up state, the motor
The panning, tilting and rolling direction are stops working, the indicator light flashes for three times, and single
all fixed. tap again the function botton to wake up the gimbal.
Mode / Function Operation Instructions
Function Button Function Explanation
Single tap Panning Mode / Lock Mode Single tap to switch between panning mode and lock mode
Double tap Panning and Tilting Mode Under panning and tilting mode, single tap to switch to lock mode
It is possible to switch to other modes under inversion mode, triple tap
Triple tap Inversion Mode
again to exit inversion mode and reset
Quadruple tap Reset Reset the tilting axis of the gimbal to initial orientation and initial mode
Long press until
the red light Standby Single tap again to awake the gimbal, or triple tap to initialize the gimbal
flashes quickly
4. Charging
Micro-USB
USB Port
After power off, connect the USB cable to USB port, and connect with 5V USB power adapter
by USB cable (equipped by user).
Or take out the battery, and use the corresponding charger to charge the battery (equipped by user).
The red indicator light is on during charging, and green light is on after the battery is fully charged.
T=Tight
L=Loose
Knob ring
T
5. Gimbal Horizontal Angle Adjustment
The horizontal angle needs to be adjusted whenever the following situations happen to the gimbal,
L
user can adjust the horizontal angle by gimbal initialization and joystick.
（1）The tilt angle is not leveled with the horizontal surface.
（2）The roll angle is not parallel to the horizontal surface.
Cross arm
（3）Under lock mode, the panning angle drifts.
Adjusting steps:
then loose the knob ring，move
STEP 1 Initialize the gimbal
（1） In boot-up state, long press the Function Botton until the red light flashes quickly to enter standby status, the blue
light will flash 3 times periodically.
（2） Lay the gimbal on a static flat surface and triple tap the Function Botton. Initialization is successful when the blue
light changes from constant on to flashing 3 times periodically.
Knob ring
T
When the initialization failed, the LED indicator will flash quickly, repeat step (2) to reinitialize.
After finished the , the rolling angle still not parallel to the horizontal surface, you can use the joystick
STEP 1
to adjust the rolling angle according to STEP 2
L
Rolling angle adjustment
STEP 2
May sure the gimbal is power on, tap function button for six times for rolling angle adjustment, the tilting and rolling angle
restore to the horizontal status.
Move the joystick to the left or to the right to adjust the rolling angle, after calibrate, single tap the Function Botton to save
Cross arm
the setting and exit to standby status.
The adjustment is an accurate operation, the speed is slow, users can resort to some horizontal tool or reference object
then loose the knob ring，move
to execute accurate adjustment.
6. Parameters
Titling Angle 320°
Rolling Angle 320°
Panning Angle 360°
Titling Increments 2°/s ~ 75°/s
Panning Increments 3°/s ~ 150°/s
Usage time 8 Hours
Adaption iPhone 6s Plus / 6s / 6 Plus / 6 / SE / 5c / 5s / 5
Weight 350g（not including battery and iPhone）
D I S C L A I M E R
Prohibit any user for any illegal purpose. Users will be responsible for
all behaviors of purchase and use products.
The Company assumes no liability for any risks related to or resulting
from the debug and use of this product (including the direct, indirect or
third-party losses).
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may
cause changes in function descriptions in this user manual, please
read the instructions carefully before upgrading the firmware and use
the corresponding user manual.
You can get the latest user manual from the official website:
www.feiyu-tech.com
Feiyu Tech reserves the right to amend this manual and the terms
and conditions of use the product at any time.
For more information, please visit our official website
www.feiyu-tech.com
Support Email: service@feiyu-tech.com
USB cable
5V USB power adapter
( Equipped by user )
Package List
Product model Quantity
SPG 1
Batteries (Type:22650) 1
USB cable 1
User manual 1
Warranty card 1
Attention
Please correctly assemble the gimbal in
accordance with the diagram.
Please install the iPhone before powering
on the gimbal.
When the gimbal is not in use or placed on
the table, please ensure it is powered off.
www.feiyu-tech.com
