- Page 1 3-Axis Stabilized Handheld Gimbal Guilin Feiyu Technology Incorporated Company U s e r M a n u a l V 1 . 0...
-
Page 2: Product Overview

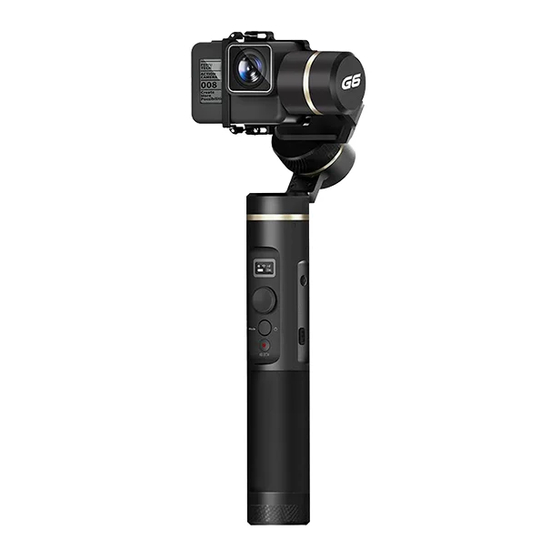

1. Product Overview The showing sports camera is not included in the package Accessories Thumb Screw Mounting Plate Tilt Axis Cross Arm Retainer Bar Knob Ring Micro USB cable Roll Axis Vertical Arm Pan Axis Horizontal Adjustment Button Display Setting Button Trigger Joystick Positioning Pin... -
Page 3: Install Battery
2. Quick Start Guide Put the camera on Please mount the camera before power on the gimbal. Install Battery When not in use, turn off the gimbal and then remove the camera. Take the GoPro HERO 5 camera for example. Please fully charge the battery before power on the gimbal for Put the camera on mounting plate,then tighten the camera the first time. -
Page 4: Balance The Gimbal
Balance the Gimbal ( Before power on ) If camera tilts to the left, loosen the knob ring , pull cross arm out to the right until camera is horizontal. Knob ring Cross arm Best balance Left-tilting If camera tilts to the right, loosen the knob ring , push cross arm in to the left until camera is horizontal. - Page 5 3. Charging Charging for Gimbal Charging icons on display screen Charging Charging Option 1: Charging with Micro USB cable. Completes Micro USB Port USB Port Micro USB Cable USB Port (Equipped by user) Input： 5V / 2A Option 2: Remove the battery and charge the battery with charger (equipped by user). Camera power- Camera power- Charging for Camera...
- Page 6 Functions Instructions of Button Function Button Function Explanation Single tap Panning Mode / Lock Mode Single tap to switch between panning mode and lock mode Under follow mode, control the pan axis by moving the joystick to the left Double tap Follow mode or right Triple tap...
- Page 7 Setting Button Operation Display Description Single tap on the setting button can switch the camera Display modes. The current mode or status of the gimbal can be Main interface of Setting Button identified by the display Camera mode the display screen Time-lapse Joystick Display Icons...
- Page 8 Auto-rotation Mode The G6 gimbal can easily create constant speed movements in the auto-rotation mode. This mode can be used for recording both regular video and motion timelapse photography. For better performance, attach gimbal to the FeiyuTech tripod, or other tripod, to keep it completely still.
- Page 9 Tilt Function Button Function Button ( 2 ) Enter auto-rotation mode ( 3 ) Set rotation start position Enter auto-rotation mode by quadruple tapping the function Record the first position (rotation start position) by manually moving button. camera to desired position. Hold in position for half a second. Single tap the function button to record rotation start position.
-
Page 10: Download And Install
5. Download and connect App Download and install “Feiyu ON” App (2) Android version: (1) iOS version: Feiyu ON Feiyu ON Feiyu ON Feiyu ON Download Download App Store GuiLin FeiYu Technology Incorporated Company GuiLin FeiYu Technology Incorporated Company Google play * Scan QR codes to automatically link to App download page. -
Page 11: Connecting To Camera
6. Connecting to Camera 7. Firmware Upgrade Connect the gimbal to the Feiyu ON G6 gimbal can connect to the camera by Feiyu ON App. App, to upgrade the firmware through the App. Operations available after connecting to the camera:... -
Page 12: Gimbal Initialization
8. Gimbal Initialization Display You can initialize your gimbal when: Initing Success （1） When camera is not level （2） If not used for a long period of time （3） In case of extreme temperature variations Place the gimbal on the table unmoved, and the gimbal automatically detect whether or not it is placed on a static flat surface, and then its initializing will start automatically showing "Initing"... -
Page 13: Technical Specifications
9. Technical Specifications (Unit:mm) Max. Tilting Range 360° Max. Rolling Range 320° Max. Panning Range 360° Tilting Speed Min: 2°/s - Max: 75°/s Panning Speed Min: 3°/s - Max: 150°/s Operation Time 12 Hours GoPro HERO6 / HERO5 and other cameras with the same size, replace the optional RX0 adapter Adaption Camera plate to be compatible with RX0 camera Weight... - Page 14 You can get the latest user manual from the official website: www.feiyu-tech.com FeiyuTech reserves the right to amend this manual and the terms and conditions of use the gimbal at any time. Please correctly assemble the gimbal in accordance with the diagram.
- Page 15 Guilin Feiyu Technology Incorporated Company +86(0)773 2320865 Due to software and hardware improvements, your actual product might differ from the descriptions and pictures in this user manual. You can get the latest user manual from the official website. For more information, please visit our official website...
