Summary of Contents for FEIYUTECH VLOG pocket2

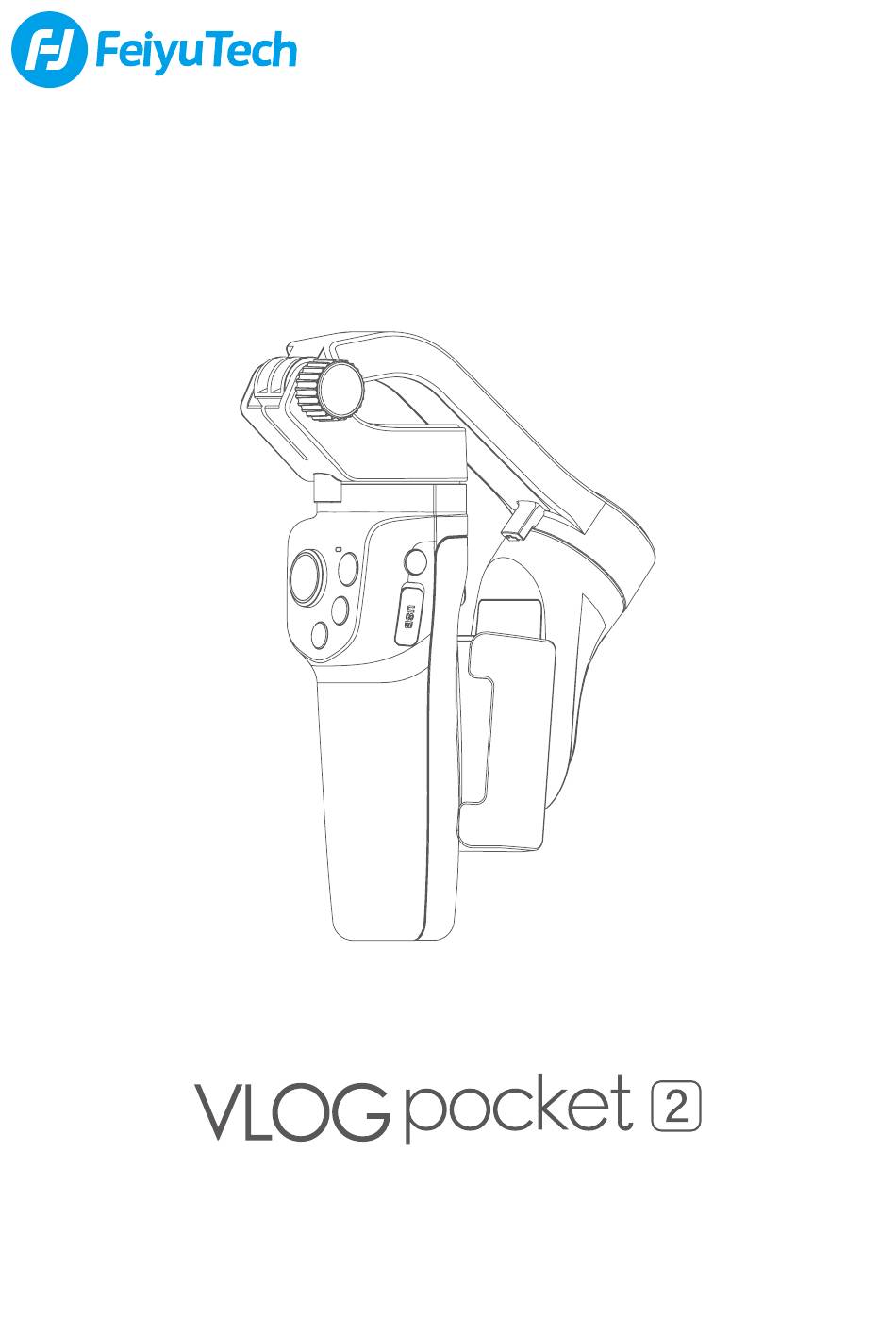

- Page 1 Foldable Smartphone Gimbal Instructions EN V1.0...
-
Page 2: Table Of Contents
Catalogue 1.Overview …………………………………………………………………………………………… 2 2.Accessories ………………………………………………………………………………………… 2 3.Start to Use ………………………………………………………………………………………… 3 3.1Unlock / Lock the clamp ………………………………………………………………………………… 3 3.2. Fold and unfold …………………………………………………………………………………………… 3 3.3 Charging …………………………………………………………………………………………………… 4 3.4 Smartphone installation ………………………………………………………………………………… 4 3.5 Power on / off ……………………………………………………………………………………………… 4 3.6 Landscape Switching ……………………………………………………………………………………... - Page 3 VLOG pocket2 is a three-axis handheld gimbal suitable for mobile phones. It is small and foldable which can be folded into a pocket. The gimbal supports landscape and portrait shooting, which can also control phone shooting. Suggestion Vlog pocket2 includes below information, please read the information before using the gimbal.
-
Page 4: Overview
1.Overview 1. Smartphone holder 7. Status indicator 13. Power button 19. Pan axis 2. Joystick 8. Video button 14. Type-C port 20. Trigger button 3. Focus button 9. Photo taking button 15.Cross arm 21. Handle (Built-in battery) 4. 1/4 inch thread hole 10. -
Page 5: Start To Use
3.Start to Use TIPS (1) Unlock the three-axis clamp before powering on the gimbal. (2) Please fully charge the battery before powering on the gimbal for the first time. (3) Landscape to mount smartphone. (4) If the power is too low, the red light will flash three times every five seconds that indicating you should charge it immediately. -
Page 6: Charging
3.3 Charging Connect the USB cable to charge. The indicator light is red when charging, and green when fully charged. Charging Charge complete 3.4 Smartphone installation *It is recommended to remove the smartphone case before installation Pull the smartphone holder and put your smartphone in, keep the holder in the center of the smartphone. If the phone tilts to left or right, please hold the roll arm ,slightly move the smarpthone to oppsite side until paralleling to the ground. -
Page 7: Landscape Switching
3.6 Landscape Switching Hold the gimbal normally and turn the handle left or right to invert. The inverted holding can be used for low angle shooting. Double click the trigger button to recenter the gimbal. 4.Function Operation 4.1 Function / Modes Introduction Pan Mode（Default mode）... -
Page 8: Button Operation
4.2Button operation Power button Long press: Power ON/OFF Single tap: Enter/ quit shortcut menu ① （Need to connect Feiyu ON App） Double tap: Switch between Photo/ Video（Need to connect Feiyu ON App） Function button（M Key） Single tap: Switch Power-on default mode/ M key shortcut mode ①... - Page 9 Video button Single tap: Start/ stop recording（Bluetooth connectivity is needed） Joystick Control the rotation of the gimbal (in normal working state) Setting options (when set on the App shortcut menu page) Trigger button Press and hold: Lock (Release it to quit) Double tap: Reset Triple tap: Switch front and rear camera（Need to connect Feiyu ON App）...
-
Page 10: Landscape And Portrait Shot Switching
4.3Landscape and portrait shot switching Double click the function button or manually rotate the smartphone holder (according to the picture below) to switch between landscape and portrait mode. Kindly Reminder： Do not make anti-clockwise rotation in landscape mode,Do not make clockwise rotation in portrait mode. 4.4 Light Indicator Indicator Instruction... -
Page 11: Gimbal Initialization
5.Gimbal Initialization You can initialize your gimbal when: (1)When smartphone is not level (2)If not used for a long period of time (3)In case of extreme temperature variations Steps (1) Click the function button five times. The motors will stop working. Status indicator turns solid blue. (2) Place the gimbal on a flat, horizontal surface. -
Page 12: Bluetooth Connection
6.2 Bluetooth Connection Turn on the gimbal. Method one: Download and install Feiyu ON App, run the App, follow the prompts to turn on and connect with the bluetooth. Method two: Turn on the smartphone bluetooth, Connect the gimbal bluetooth in the setting of phone, e.g. FY_ PocketV2_XX. -
Page 13: Specifications
7.Specifications Tilt Range 165° Roll Range 323° Pan Range 330° Standby Time 9Hours Weight 272g Payload 250g (After Balanced) Adapter smartphones iPhone and Android phones ( The width of the phone is between 41~89mm ) - Page 14 Disclaimer Thanks for using FeiyuTech product. The information in this document affects your safety and your legal rights and responsibilities. Read the entire document carefully to ensure proper configuration before use, Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, or damage to your products or damage to other objects in the vicinity.
- Page 15 Guilin Feiyu Technology Incorporated Company www.feiyu-tech.com E-mail: service@feiyu-tech.com Tel: +86 773 2320865...
