- Page 1 Foldable Smartphone Gimbal I n s t r u c t i o n s EN V 1.2...
-
Page 2: Table Of Contents

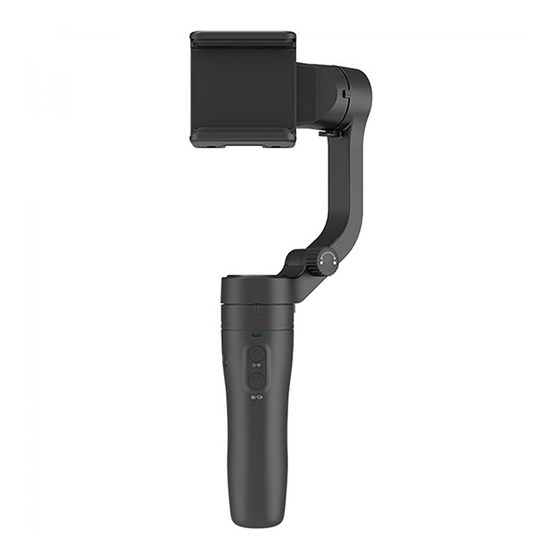

Catalogue 1. Overview 2. Start to Use 2.1 Fold and Unfold 2.2 Charging 2.3 Smartphone Installation 2.4 Power on / off 2.5 Landscape Switching 3. Function Operation 3.1 Function / Modes Introduction 3.2 Function Button Operation 3.3 Shutter Button Operation 3.4 Trigger Button Operation 3.5. - Page 3 VLOG pocket is a three-axis handheld gimbal suitable for mobile phones. It is small and foldable which can be folded into a pocket. The gimbal supports landscape and portrait shooting, which can also control phone shooting. Suggestion Vlog pocket includes below information, please read the information before using the gimbal 1.
-
Page 4: Overview
1. Overview *This product does not include the smartphone 1. Function button 7. Cross arm 13. Pan axis clamp 2. Shutter button 8. Vertical arm 14. Micro-USB port 3. Trigger button 9. Folding knob 15. Handle 4. Roll axis 10. Smartphone holder 16. -
Page 5: Start To Use
2. Start to Use TIPS (1) Please fully charge the battery before powering on the gimbal for the first time. (2) If the power is too low, the red light will flash three times every five seconds that indicating you should charge it immediately. (3) When not in use, power off... -
Page 6: Charging
2.2 Charging Connect the USB cable to charge. The indicator light is red when charging, and green when fully charged. Charging Charge complete 2.3 Smartphone Installation It is recommended to remove the smartphone case before installation and keep the logo of the smartphone holder upward. -
Page 7: Power On / Off
2.4 Power on / off Unlock the three axis clamp before powering on the gimbal. Turn on the smartphone only after it is installed securely. Power on Long time press the function button and release it when you hear the tone. (Green light will change to blue) Power off... -
Page 8: Function Operation
3. Function Operation 3.1 Function / Modes Introduction Panning Mode（Default mode） The roll and tilt direction are fixed, and the smartphone moves according to the left-right movements of the user's hand. Lock Mode The orientation of the camera is fixed. Follow Mode The roll direction is fixed, and the smartphone moves according to the left-right movements, up-down movements of the user's hand. -
Page 9: Function Button Operation
3.2 Function Button Operation Function Status Indicator Function button Click once Panning Mode Single click Click again Lock Mode Double click Landscape and portrait shot switching Keep current status Gimbal Initialization Five click ( Single click the function button to wake up ) Power on Long time Power on / off... -
Page 10: Shutter Button Operation
（1）Power on VLOG pocket, open smartphone bluetooth. （2）Choose below Bluetooth connection way: a. Choose VLOG pocket Bluetooth to connect like FY_PocketV_xx. b. Open Feiyu ON app, logon or register via tips to connect. （3）After Bluetooth connecting successful, the shutter button is activated. -
Page 11: Trigger Button Operation
3.4 Trigger Button Operation Trigger Function Status Indicator Button Enter follow mode Press and hold ( Release trigger button enter into previous mode ) Reset Double click Trigger Button 3.5 Landscape and Portrait Shot Switching Double click the function button to switch modes between landscape and portrait. -
Page 12: Light Indicator
3.6 Light Indicator Indicator Instruction Blue light flashes once Panning mode / Reset Constant blue light Lock mode / Initialization Blue light flash two times Follow mode Green light flashes once Photo / Video Green light flashed once in Bluetooth connected 5 seconds While other indicator status Green light change to... -
Page 13: Gimbal Initialization
4. Gimbal Initialization You can initialize your gimbal when: When smartphone is not level If not used for a long period of time In case of extreme temperature variations Steps (1) Click the function button five times. The motors will stop working. Status indicator turns solid blue. -
Page 14: Download And Connect App
5. Connect and Use Feiyu ON App 5.1 Download the App Feiyu ON Timer Photo/Video Zooming Path time-lapse photography Light tracking Ultra-wide angle Object tracking Face locking photography panorama Overlapping Slow motion Filter Beauty images Landscape and Firmware ..Video editing portrait switching upgrade Please download Feiyu ON at your smartphone app store or scan the QR code below. -
Page 15: Shooting / Control Interface
5.3 Shooting / control interface Shooting interface Control interface Face/object Setting - Advanced tracking Upgrade settings Back Tutorial Remote Control Album Gimbal information FY_PocketV_xx Reset Virtual Joystick Switch between Camera setting photo/ recording mode Choose photo Shutter Switch between Lock mode Panning mode modes front and rear camera... -
Page 16: Specifications
6. Specifications 91 mm 108.5 mm Product Name VLOG pocket Foldable Smartphone Gimbal Max. Tilting Range 165° Max. Rolling Range 240° Max. Panning Range 330° Operation Time 8 Hours Standby Time 14 Hours 272g ( Not including the smartphone ) - Page 17 You agree to use this product only for purposes that are proper and in accordance with all applicable laws, rules, and regulations, and all terms, precautions, practices, policies and guideline FeiyuTech has made and may make available. FeiyuTech accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of product.
