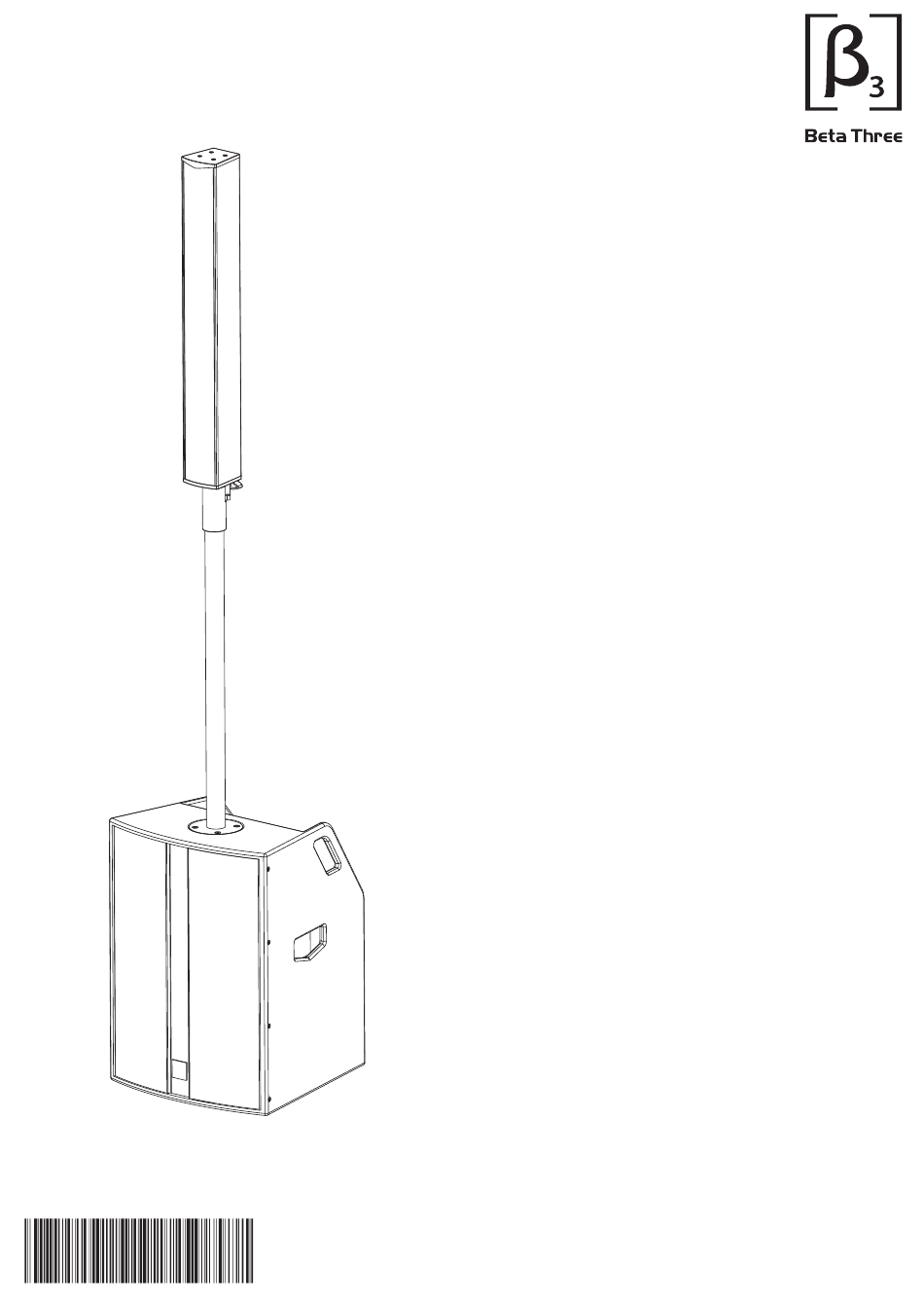

- Page 1 BT1500 Professional Active Performance System User Manual U M - B T 1 5 0 0 - 2 0 1 8 0 8 2 1 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
BT1500 CONTENT Professional ActivePerformance System CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response Curve and THD Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.beta3pro.com for the latest updates. -
Page 4: Introduction

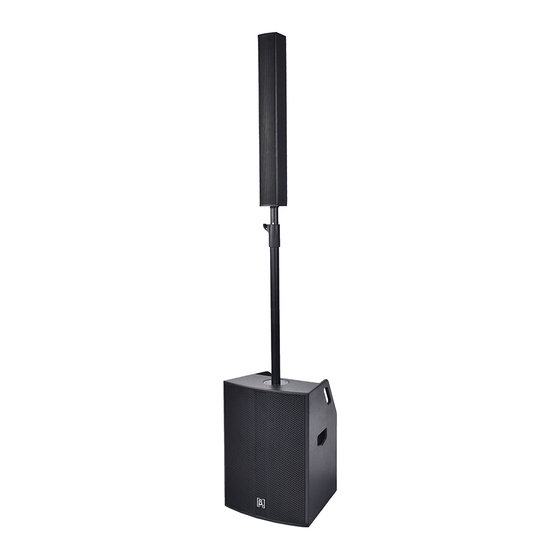

BT1500 INTRODUCTION Professional ActivePerformance System BT1500 Professional Active Performance System Features Compact,small and high SPL Specially designed for small touring performance Portable and easy installation design Max.SPL 117dB (peak) Bi-amp module of CLASS D Bluetooth connection available Description β3 BT1500 is an active two-way 9-unit inverting full-range speaker, specially designed for small touring performance. -
Page 5: Amplifier Module
BT1500 AMPLIFIER MODULE Professional ActivePerformance System Amplifier Module 1、MAIN VOL KNOB: The master volume control , MIN is the minimum volume, MAX is the volume maximum. 2、SUB VOL KNOB: The master volume control , MIN is the minimum volume, MAX is the volume maximum. -
Page 6: Installation
BT1500 INSTALLATION Professional ActivePerformance System Installation Accessories Installation Reference 1.Full Frequency Speaker BAG: 101.05.0007.00087 1. Quick Installation Following instruction allow to install , turn it clockwise to fix it. 2.Support Rod: 101.06.0036.00090 Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during installation . -
Page 7: Technical Specification
BT1500 TECHNICAL SPECIFICATION Professional ActivePerformance System Specification Frequency response(-3dB): 60Hz-18kHz Max.SPL: 111dB/117dB(PEAK) Dispersion(H×V): 120 ×40 Transducer: 1× 15" Woofer 6× 2.75"+2×1" Mid-high units Amplifier Power: 800W Rated impedance: 4 Ohms XLS、RCA、6.35 MIC INPUT 、Mixed male output Connector: Input: Three channel balanced input XLR/ 6.35、TRS、RCA Input impedance(line): 20kohm balanced input, 10kohm unbalanced input Input impedance(MIC):... -
Page 8: 2D Dimension
BT1500 TECHNICAL SPECIFICATION Professional ActivePerformance System 2D Dimension Front view Side view Back view BT15100 EXT: Top view Front view Side view Back view Top view (subwoofer) 73mm (2.87in) 102mm (4.02in) 96mm (3.78in) 438mm (17.24in) Bottom view... - Page 9 Notes:...
