Environment-resistive Terminals (IP66)

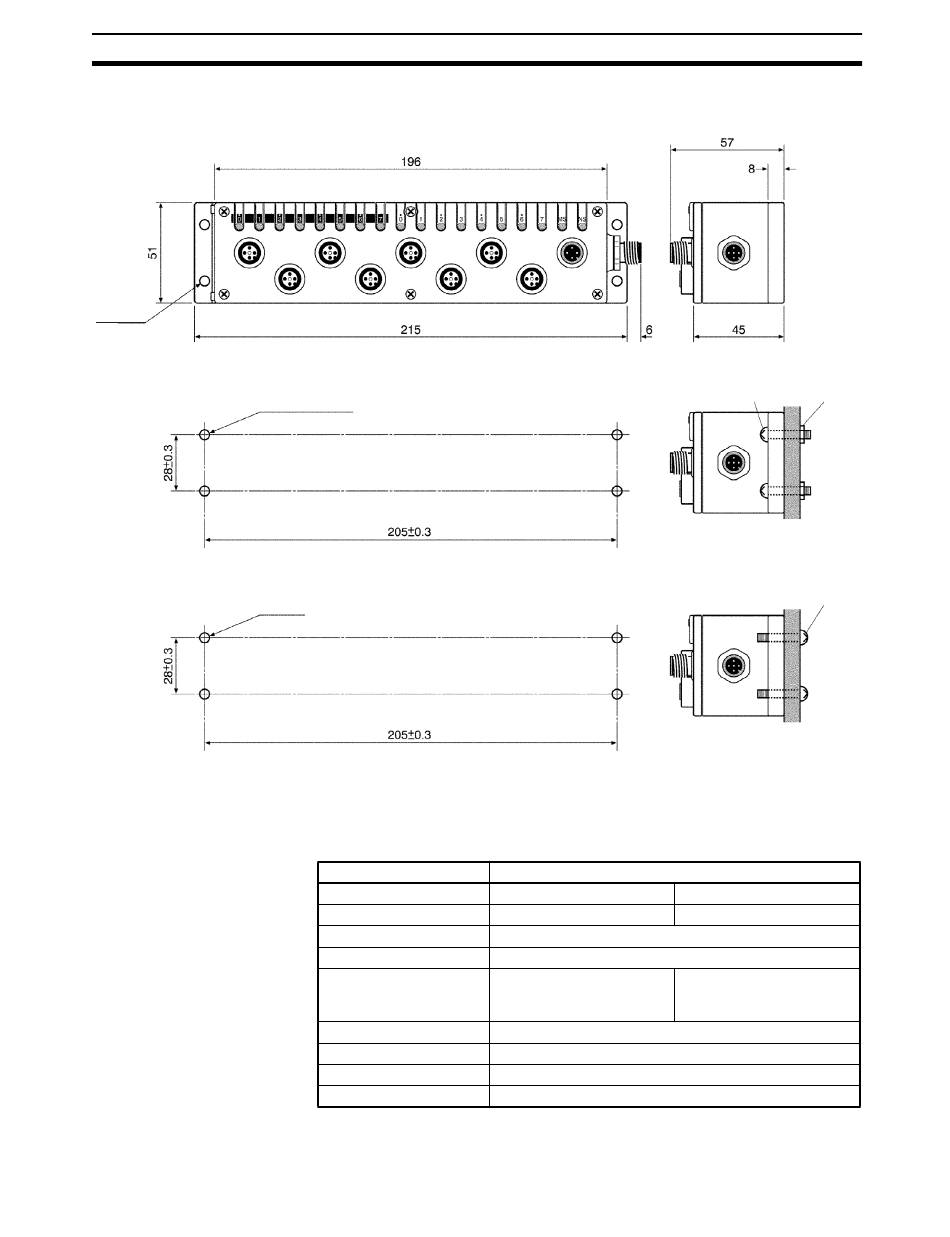

Dimensions
Four, M5
Mounting Holes
When screw mounting
Four, 4.2 dia. or M4
from the front
When screw mounting
from the rear
Four, 5.4 dia.
5-3-5 Environment-resistive Terminal (IP66) with 16 Transistor Outputs:
DRT1-WD16C (NPN) and DRT1-WD16C-1 (PNP)
Output Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
The following diagram shows the dimensions for the DRT1-OD08C Environ-
ment-resistive Terminal. All dimensions are in mm.
Item
Model DRT1-WD16C
Internal I/O common NPN
Output points 16 points
Rated output current 0.3 A/point, 2.4 A/common
Residual voltage 1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
Section 5-3
Mounting screw
Specification
DRT1-WD16C-1
PNP
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
Nut
Mounting
screw
189
