4.3 INLET FITTING OR EXTEND-A-GUN INSTALLATION

The Typhoon Monitor is available with various inlet fittings. When the inlet fittings are used, see Section 3.5.1 - 3.5.4 for the addition
to overall height.
The Typhoon Monitor also connects directly to TFT's Extend-A-Gun RC3 or RC4. The fittings and Extend-A-Gun RC are attached to
the monitor by means of a threaded joint with an O-ring seal.

4.4 TWO PIECE CLAMP ROTATIONAL LOCK INSTALLATION

STEP 1
Apply VSA-125 blue Loctite to threads on both
Cylinder Nuts.
STEP 2
Align grooves in heads of Cylinder Nuts with top
sides of Clamps.
Slide Screws through Washers and Clamps.
Loosely thread Screws into Cylinder Nuts.
STEP 3
Place Clamp assembly over male threads of
outlet.
Cylinder Nut heads MUST be on top side of
Clamps.
©Copyright Task Force Tips LLC 2004-2020

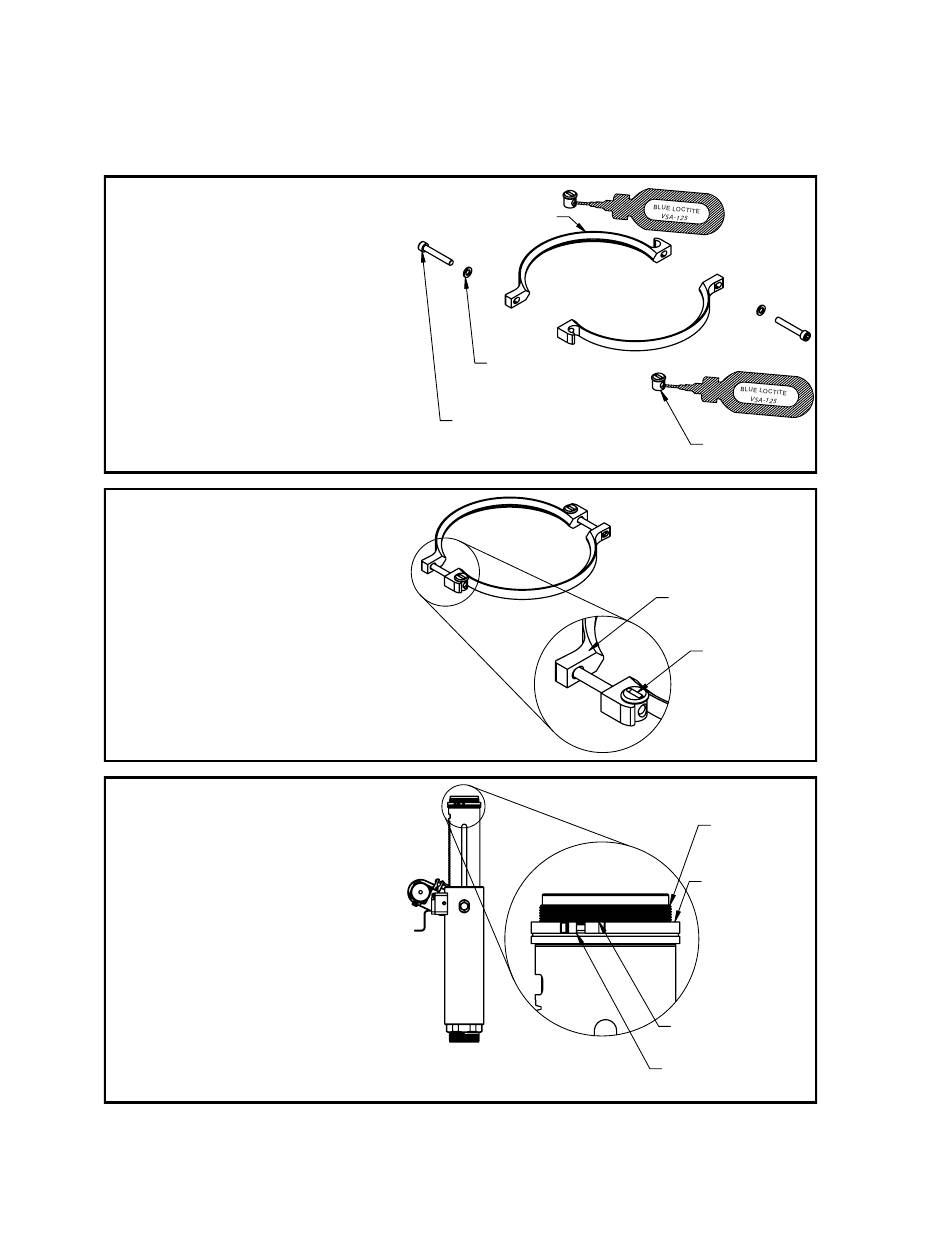

MONITOR BASE CLAMP
Y4435
WASHER
VW360x200-04
SOCKET HEAD SCREW
10-32 X 1-1/4 LONG
VT10-32SH1.2
Figure 4.4A
14
CYLINDER NUT
Y4437
TOP SIDE OF CLAMP
CYLINDER NUT
HEAD GROOVE
EXTEND-A-GUN
MALE OUTLET
THREADS
TOP SIDE
OF CLAMPS
CYLINDER
NUT HEAD
LOOSE CLAMP
ASSEMBLY
