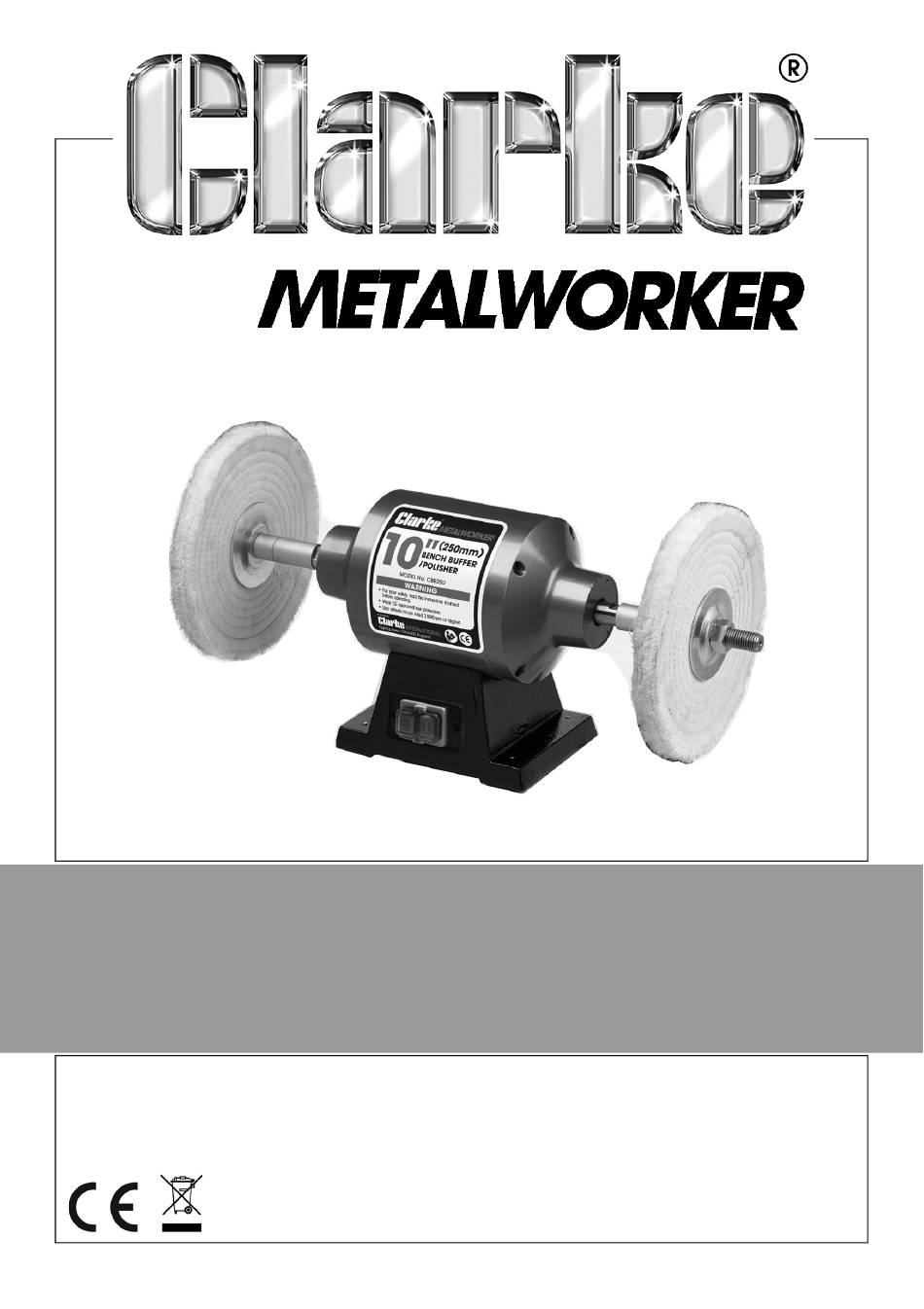

- Page 1 250MM BUFFER/POLISHER MODEL NO: CBB250 PART NO: 6500491 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1120 -ISS 1...
-
Page 2: Technical Specifications
INTRODUCTION Thank you for purchasing this CLARKE buffer/polisher. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Power Tool Safety Warnings
POWER TOOL SAFETY WARNINGS WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 4 4. Remove any wrench before turning the power tool on. A wrench left attached to a rotating part may result in personal injury. 5. DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 6.
-
Page 5: Safety Symbols & Pictograms
2. DO NOT switch the buffer/polisher on whilst the mop is in contact with the workpiece. 3. Avoid polishing dissimilar metals with the same buffing mop; galvanic corrosion may occur. 4. DO NOT touch the workpiece immediately after polishing as it may be hot. 5. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. -
Page 7: Mounting The Machine
ASSEMBLY MOUNTING THE MACHINE 1. Bolt the buffer/polisher to a workbench using the securing holes shown. • DO NOT block the ventilation paths through the base. • Check that the installation is secure before turning the buffer on. FITTING BUFFING/POLISHING PADS 1. -
Page 8: Maintenance
USING YOUR BUFFER/POLISHER WARNING: BEFORE COMMENCING WORK, ENSURE YOU HAVE READ AND UNDERSTOOD ALL OF THE SAFETY INSTRUCTIONS 1. Plug the buffer/polisher into the mains power supply. 2. Switch the buffer/polisher on 3. Slowly bring the workpiece into contact with the polishing mop. •... -
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Component Parts
COMPONENT PARTS Nut M20 (Left-hand tread) Phillips screw M4 x 16 Retaining disc Cable Gland Buffing wheel Cable Retainer Spacer bush 1 Base Spacer bush 2 Bolt M8x25& spring washer assy Phillips screw M6 & washer assy Capacitor End cap Capacitor support bracket Corrugated retainer Baseplate... - Page 11 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
