Summary of Contents for Clarke METALWORKER CBB200E

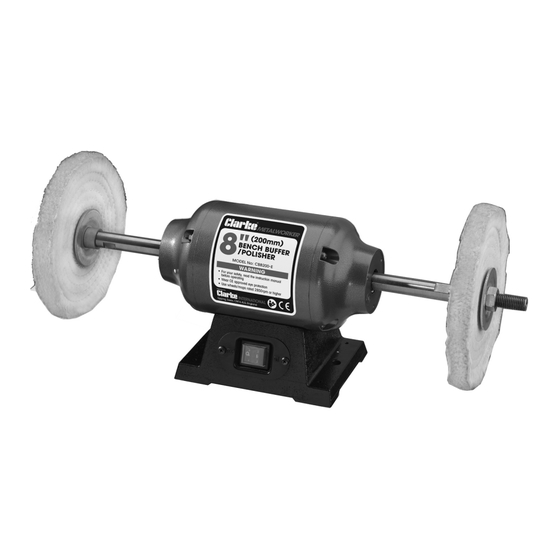

- Page 1 550W BUFFER/POLISHER MODEL NO: CBB200E PART NO: 6500560 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC06/23...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE buffer/polisher. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Power Tool Safety Warnings
POWER TOOL SAFETY WARNINGS WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 4 5. DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations. 6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 5: Safety Symbols
3. Avoid polishing dissimilar metals with the same buffing wheel; galvanic corrosion may occur. 4. DO NOT touch the workpiece immediately after polishing as it may be very hot. 5. DO NOT touch the buffing wheel whilst operating or whilst plugged into the mains power. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. -
Page 7: Mounting The Machine
ASSEMBLY MOUNTING THE MACHINE 1. Bolt the buffer/polisher to a workbench using the securing holes shown. • Check that all assembly nuts and bolts are secure before turning the machine on. FITTING BUFFING/POLISHING PADS 1. Place the spacer over the shaft. 2. -
Page 8: Maintenance
USING YOUR BUFFER/POLISHER WARNING: BEFORE COMMENCING WORK, ENSURE YOU HAVE READ AND UNDERSTOOD ALL OF THE SAFETY INSTRUCTIONS 1. Plug the buffer/polisher into the mains power supply. 2. Switch the buffer/polisher on 3. Slowly bring the workpiece into contact with the polishing mop. •... -
Page 9: Component Parts
Switch Cable joint plate Switch baseboard REPLACEMENT POLISHING MOPS TYPE PART NUMBER 200 mm REPLACEMENT POLISHING MOP OPEN 6500495 STITCHED 6500496 Replacement mops are available from your CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 10 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
