6.5. DC Power Page

NOTE:
Sections 6.5, 6.5.1, 6.5.2, 6.5.3, 6.5.4 and 6.5.5 are not compatible with web browsers
using Java Plug-In version 7 update 51 and above.
When the "DC Power" tab is clicked, the following web page opens. This page, and it's sub-menus, allow
you to operate the power supply and adjust it's output settings.
6.5.1. DC Power ➞ Output Page

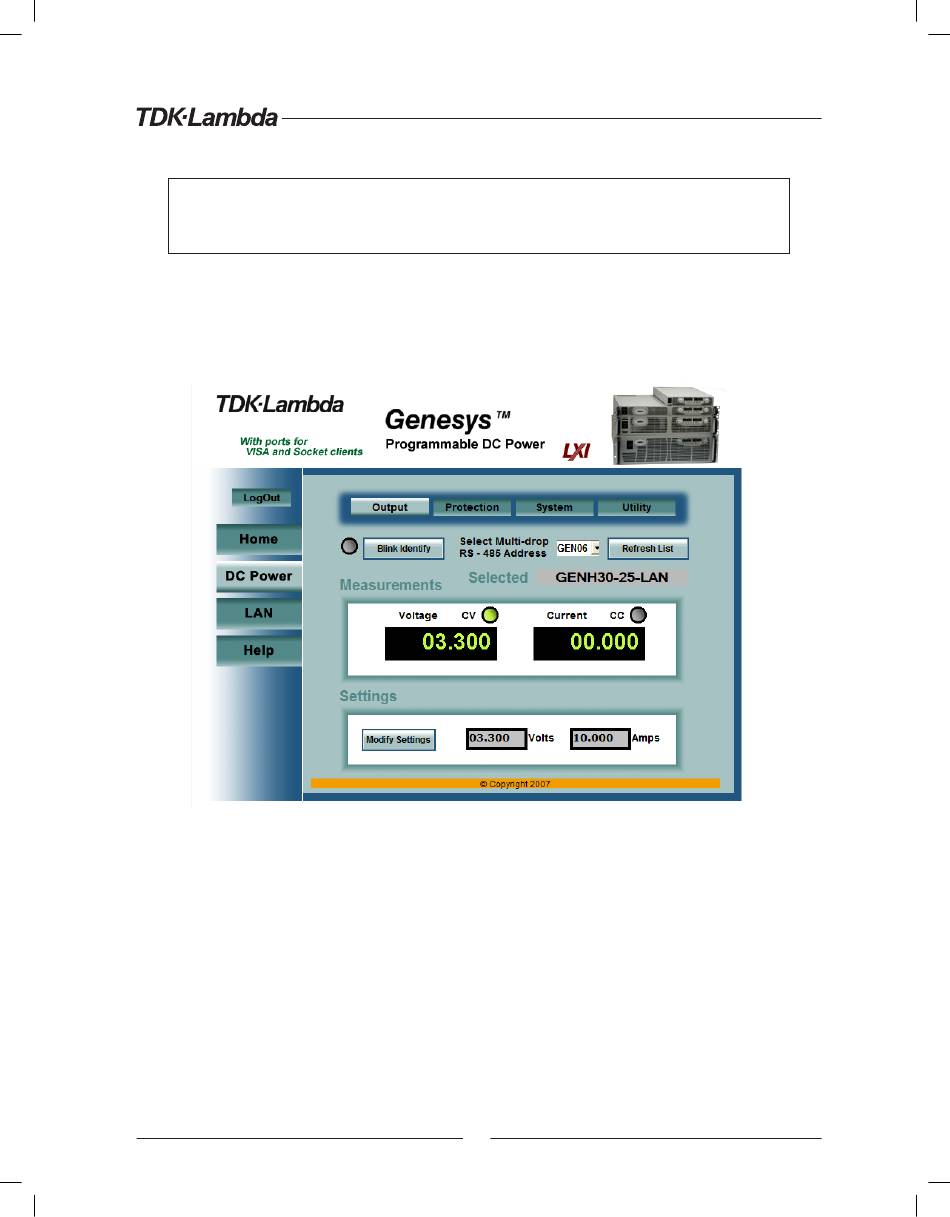

When the "DC Power" tab is selected, the "Output" soft front panel (GUI) loads first.
First, select the desired power supply with:
- Refresh List: When this button is clicked, the web page will scan to find connected Multi-drop power
supplies and put the discovered addresses into the listbox. This button only applies to a multi-drop
chain as described in section 12.
Select RS-485 Multi-drop Address: This address is described in section 12.2.2. This address only applies
to a multi-drop chain of RS-485 supplies. If there is no multi-drop, only the address from the single LAN
supply is available
After the desired power supply is selected, the web page shows:
- Blink Identify: When this button is clicked ON, the web page LED blinks, the selected power supply
front panel blinks and the rear panel LAN LED blinks. This function allows you to quickly identify which
power supply is being communicated to in a rack of instruments. In a multi-drop chain, only the master
LAN power supply will blink
- The blink identify is turned OFF by clicking this button again or by operating any knob or button on
the power supply front panel
