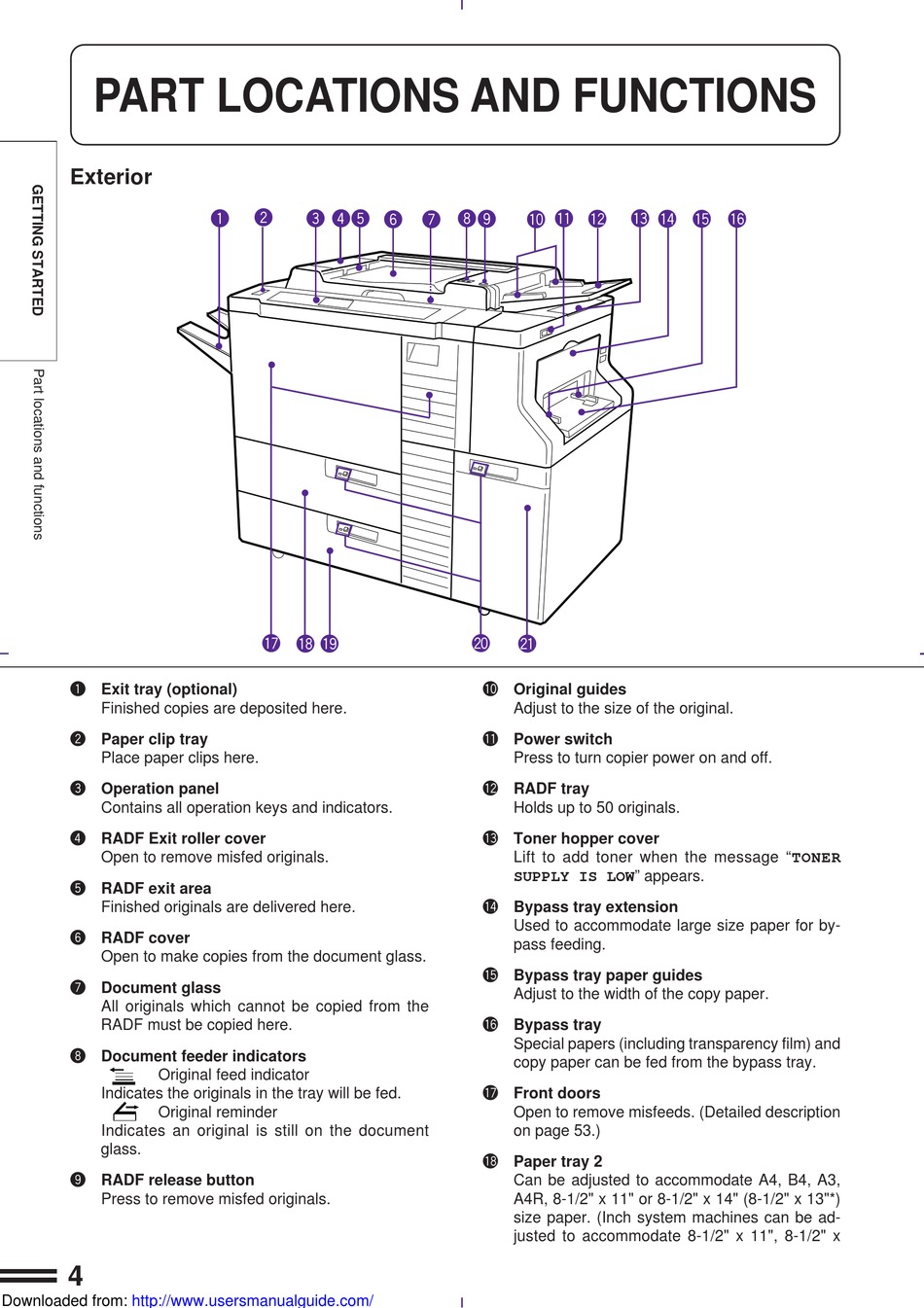

PART LOCATIONS AND FUNCTIONS
Exterior
q Exit tray (optional)
Finished copies are deposited here.
w Paper clip tray
Place paper clips here.
e Operation panel
Contains all operation keys and indicators.
r RADF Exit roller cover
Open to remove misfed originals.
t RADF exit area
Finished originals are delivered here.
y RADF cover
Open to make copies from the document glass.
u Document glass
All originals which cannot be copied from the
RADF must be copied here.
i Document feeder indicators
Original feed indicator
Indicates the originals in the tray will be fed.
Original reminder
Indicates an original is still on the document
glass.
o RADF release button
Press to remove misfed originals.
4
Downloaded from:
http://www.usersmanualguide.com/
w
q
e r
t
y
!7 !8
!9
I
I
u i
o
! 1
!2
!0
@0
@1
!0 Original guides
Adjust to the size of the original.
!1 Power switch
Press to turn copier power on and off.
!2 RADF tray
Holds up to 50 originals.
!3 Toner hopper cover
Lift to add toner when the message "TONER
SUPPLY IS LOW" appears.
!4 Bypass tray extension
Used to accommodate large size paper for by-
pass feeding.
!5 Bypass tray paper guides
Adjust to the width of the copy paper.
!6 Bypass tray
Special papers (including transparency film) and
copy paper can be fed from the bypass tray.
!7 Front doors
Open to remove misfeeds. (Detailed description
on page 53.)
!8 Paper tray 2
Can be adjusted to accommodate A4, B4, A3,
A4R, 8-1/2" x 11" or 8-1/2" x 14" (8-1/2" x 13"*)
size paper. (Inch system machines can be ad-
justed to accommodate 8-1/2" x 11", 8-1/2" x
I
I
!3
!4 !5
!6
