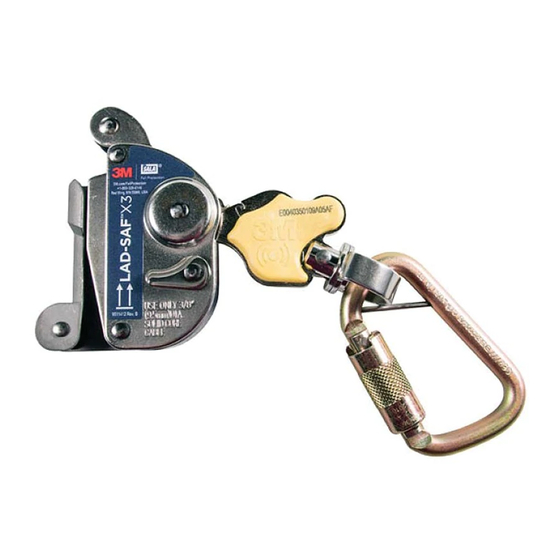

3M DBI SALA LAD-SAF X3 User Instructions

Vertical cable safety sleeve and system
Hide thumbs Also See for DBI SALA LAD-SAF X3:
Table of Contents

Advertisement

Quick Links

Download this manual

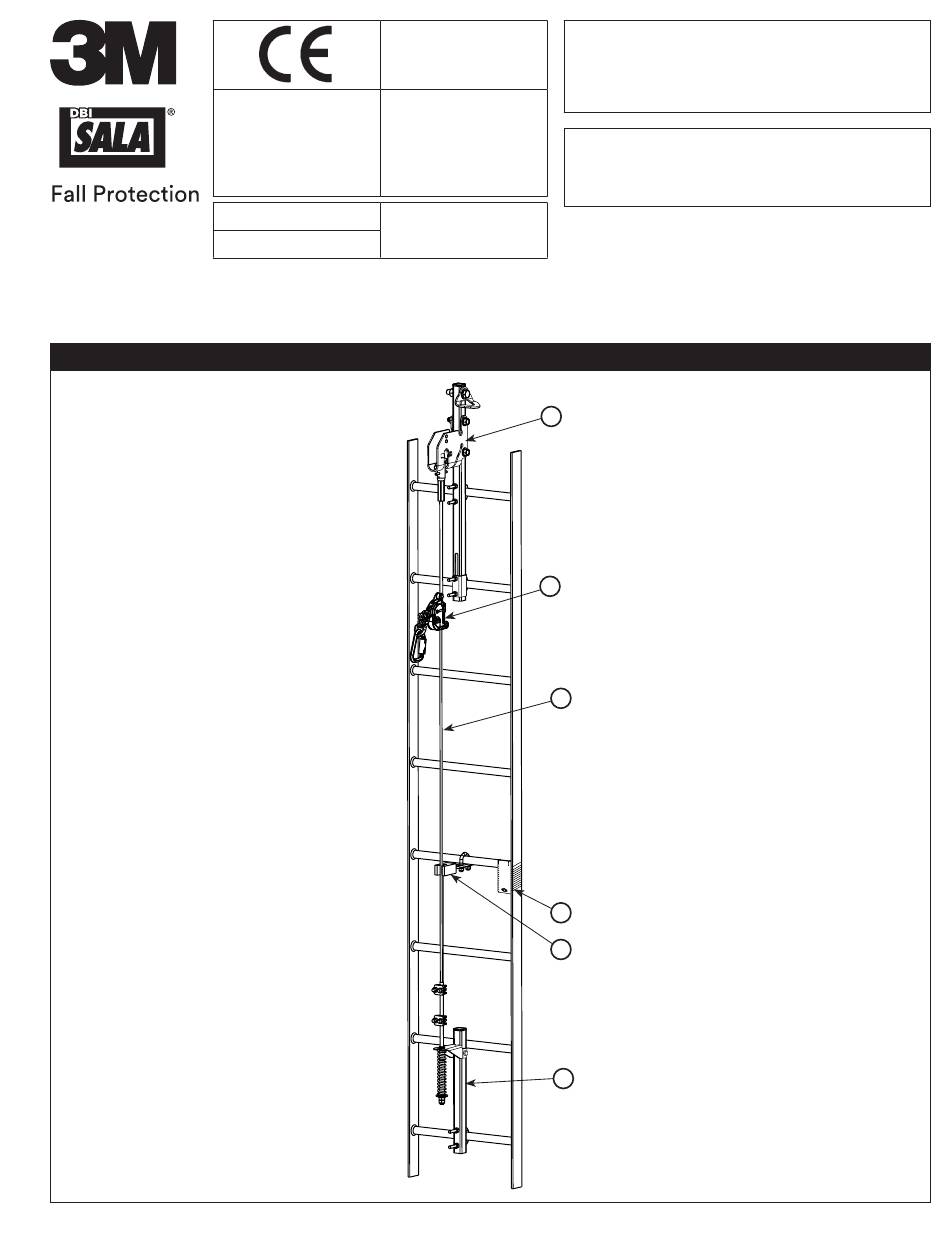

Lad-Saf X3
EN 353-1:2014+A1:2017
VERTICaL CaBLE SafETY SLEEVE
aNd SYSTEM
CE Type Test
CE Product Quality Control
No. 2797
No. 2777
BSI
Satra Technology Europe Ltd
The Netherlands B.V.
Bracetown Business Park
Say Building
USER INSTRUCTIONS
Clonee,
John M. Keynesplein 9
Dublin
1066 EP
D15 YN2P
Amsterdam
Ireland
5908556 Rev. G
Netherlands
ANSI Z359.16
OSHA 1926.1053
OSHA 1910.29
CSA Z259.2.5
1
A
C
B
E
D
F
© 3M 2019

Advertisement

Table of Contents
loading

Related Manuals for 3M DBI SALA LAD-SAF X3

Summary of Contents for 3M DBI SALA LAD-SAF X3

  • Page 1 Satra Technology Europe Ltd The Netherlands B.V. Bracetown Business Park Say Building USER INSTRUCTIONS Clonee, John M. Keynesplein 9 Dublin 1066 EP D15 YN2P Amsterdam Ireland 5908556 Rev. G Netherlands ANSI Z359.16 OSHA 1926.1053 OSHA 1910.29 CSA Z259.2.5 © 3M 2019...
  • Page 4 . 6160054 MODEL NO XXXXXXX SERIAL NO. CSA Z259.2.5 9514023 Rev. B ANSI Z359.16 9" MAX (23cm)
  • Page 5 ü A ≥ 0.20 in (5mm) û...

  • Page 6: Safety Information

    Avoid surfaces and objects that can damage the user or equipment. Ensure there is adequate fall clearance when working at height. Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the equipment.

  • Page 7: Product Description

    Prior to installation and use of this equipment, record the product identification information from the ID label in the Inspection and Maintenance Log (Table 2) at the back of this manual. Always ensure you are using the latest revision of your 3M instruction manual. Visit the 3M website or contact 3M Technical Services for updated instruction manuals.
  • Page 8 Table 1 – Specifications Component Specifications: Lad-Saf Ladder Safety System: Figure 1 Reference Component Materials Top Bracket Galvanized Steel or Stainless Steel Cable Galvanized Steel or Stainless Steel Cable Sleeve Stainless Steel Cable Guide Urethane System Tag Stainless Steel Bottom Bracket Galvanized Steel or Stainless Steel Lad-Saf Cable Sleeve: Figure 2...

  • Page 9: Product Application

    (CLFAS), including the Lad-Saf Vertical Lifeline System and Lad-Saf X2, X3 or X3+ Detachable Cable Sleeves, unless the PCA has been verified by 3M as being compatible with 3M’s CLFAS. Failure to comply with this warning could result in a user’s fall not being safely arrested in the event of a fall from height while using incompatible PCA and CLFAS systems.
  • Page 10 3M connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. See Figure 5 for examples of inappropriate connections. Do not connect snap hooks and carabiners: To a D-ring to which another connector is attached.

  • Page 11: Installation

    CONNECTING THE CABLE SLEEVE TO THE CARRIER CABLE: The Lad-Saf X3 Vertical Cable Safety Sleeve must be connected to a 3M Lad-Saf Ladder Safety System to be used. See Figure 7 for reference. To connect the Lad-Saf X3 Cable Sleeve to the carrier cable of the Lad-Saf System: Position the sleeve so that the the “up”...
  • Page 12 Lad-Saf System from service immediately and clearly mark “DO NOT USE”. The Lad-Saf Vertical Cable Safety Sleeve and System must then be destroyed or sent to 3M for replacement. Do not attempt to repair the system. PRODUCT LIFE: The functional life of the Lad-Saf System is determined by work conditions and maintenance. As long as the product passes inspection criteria, it may remain in service.

  • Page 13: Labels And Markings

    ID/Lot Number (YYMMWWTT): YY = last two digits of year of manufacture. MM = month of manufacture. WW = week of year of manufacture. TT = internal 3M use only. 1) Installation Date 2) Installed By 3) Anchorage Requirements 4) Maximum Number of Users per System 5) System Length 6) Date of Manufacture 7) Date Inspected 8) Serial Number 9) System Warnings 10) Cable type and sleeve compatibility matrix along with standards certification.
  • Page 14 Inspect the entire unit for signs of corrosion. Top Bracket Inspect for proper installation per Lad-Saf™ Flexible Cable Vertical Safety Systems Installation Instructions, 3M Fall Protection manual 5908282 or (Figure 11.2) 5903435. Check for visible damage or corrosion. Look for cracks, bends or wear that could affect the strength and operation of the system.
  • Page 15 Table 2 – Inspection and Maintenance Log Inspection Date: Inspected By: Component: Inspection: User Competent (See Section 2 for Inspection Frequency) Person Cable Guides Check cable guides for damage. Look for wear or damage to black urethane. Cable guides should restrain the cable and prevent cable (Figure 1) contact with the ladder/structure.
  • Page 16 3M comme souffrant d’un défaut de fabrication en usine ou de matériaux. 3M se réserve le droit d’exiger défaut de fabrication en usine ou de matériaux, tel que déterminé par 3M. 3M se réserve le droit d’exiger le que le produit lui soit retourné pour une évaluation de la réclamation au titre de la garantie. Cette garantie retour du produit dans ses installations afi...
  • Page 17 Distributed by Engineered Fall Protection Sales@EngineeredFallProtection.com www.EngineeredFallProtection.com Tel: (314) 492-4422 I S O EU DECLARATION OF CONFORMITY: 9 0 0 1 3M.com/FallProtection/DOC FM534873...
