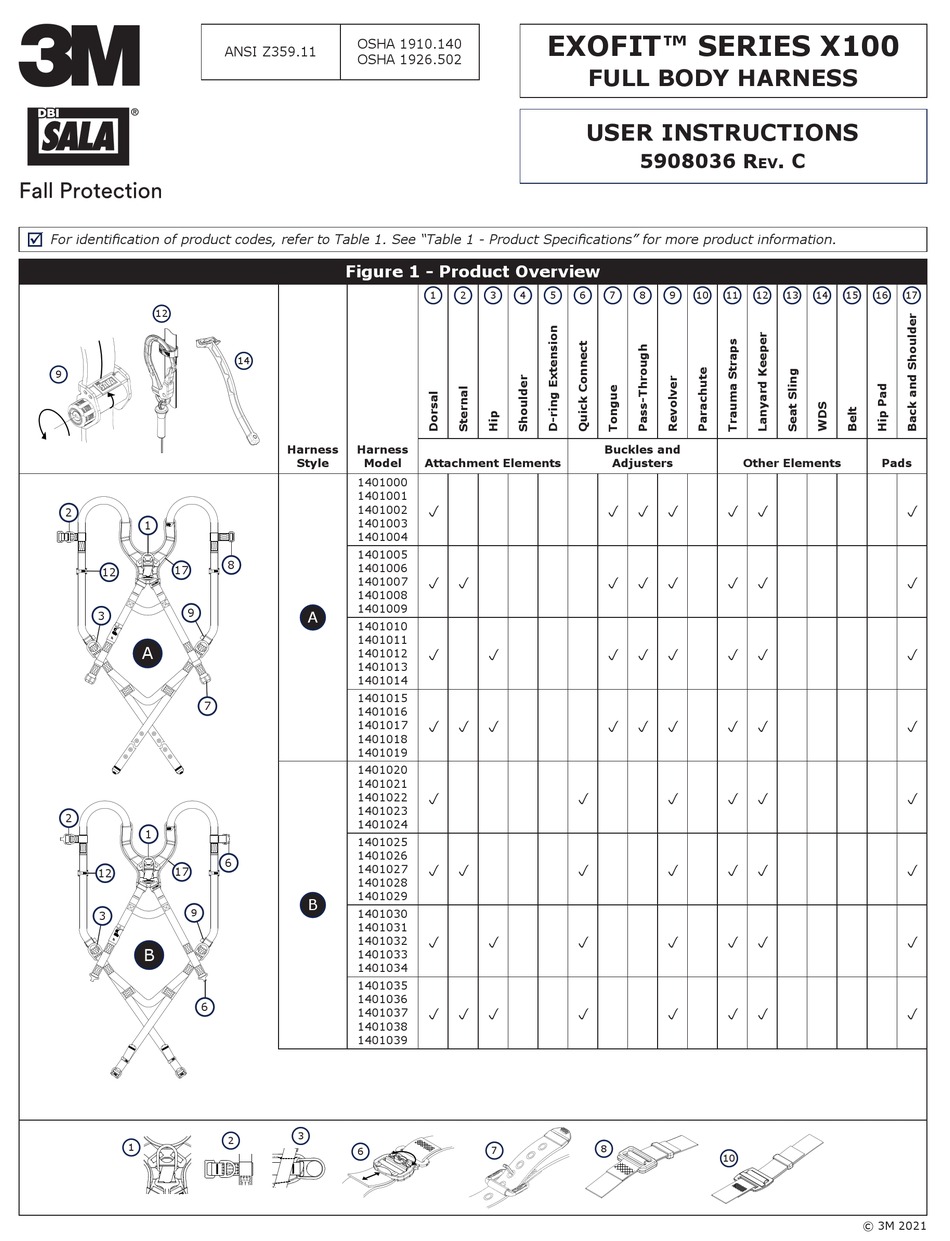

EXOFIT™ SERIES X100
FuLL BODy HARnESS
USER INSTRUCTIONS
1
2
3
4
5
6
Attachment Elements
8
7
PARK
LANYARD
HERE, SEE
INSTRUCTIONS.
5908036 R
. C
Ev
7
8
9
10
11
12
Buckles and
Adjusters
Other Elements
10
13
14
15
16
17
Pads
