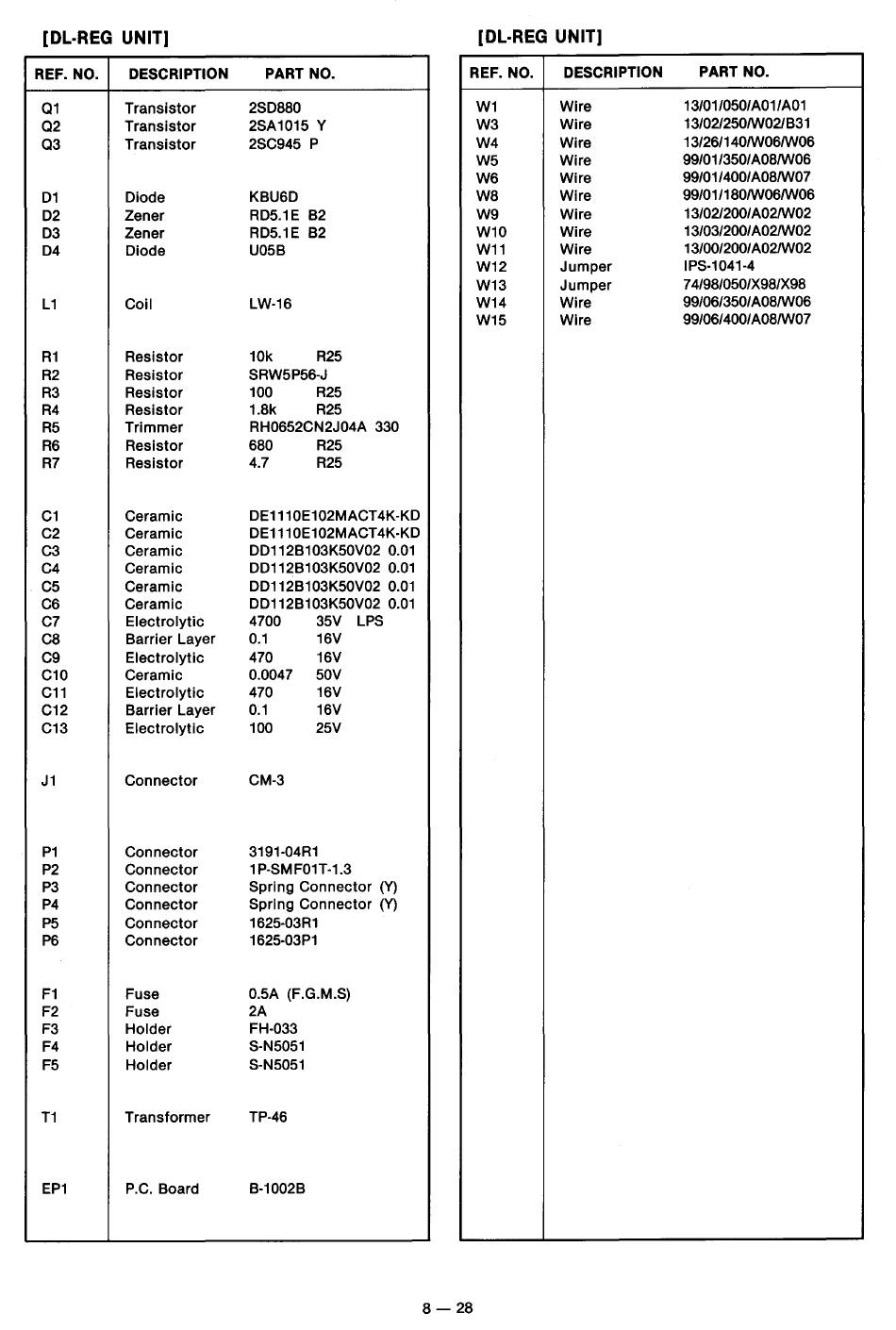

[DL-REG UNIT]
[DL-REG UNIT]
REF. NO.
DESCRIPTION
PART NO.
REF. NO.
DESCRIPTION
PART NO.
Q1
Transistor
2SD880
W1
Wire
13/01/050/A01/A01
Q2
Transistor
2SA1015 Y
W3
Wire
13/02/250/W02/B31
Q3
Transistor
2SC945 P
W4
Wire
13/26/140/W06/W06
W5
Wire
99/01 /350/ A08/W06
W6
Wire
99/01/400/A08/W07
D1
Diode
KBU6D
W8
Wire
99/01 /180/W06/W06
D2
Zener
RD5.1E B2
W9
Wire
13/02/200/ A02/W02
D3
Zener
RD5.1E B2
W10
Wire
13/03/200/ A02/W02
D4
Diode
U05B
W11
Wire
13/00/200/ A02/W02
W12
Jumper
IPS-1041-4
W13
Jumper
7 4/98/050/X98/X98
L1
Coil
LW-16
W14
Wire
99/06/350/ A08/W06
W15
Wire
99/06/400/A08/W07
R1
Resistor
10k
R25
R2
Resistor
SRW5P56-J
R3
Resistor
100
R25
R4
Resistor
1.8k
R25
R5
Trimmer
RH0652CN2J04A 330
R6
Resistor
680
R25
R7
Resistor
4.7
R25
C1
Ceramic
DE1110E102MACT4K-KD
C2
Ceramic
DE111OE102MACT4K·KD
C3
Ceramic
DD112B103K50V02 0.01
C4
Ceramic
DD112B103K50V02 0.01
C5
Ceramic
DD112B103K50V02 0.01
C6
Ceramic
DD112B103K50V02 0.01
C7
Electrolytic
4700
35V
LPS
CB
Barrier Layer
0.1
16V
C9
Electrolytic
470
16V
C10
Ceramic
0.0047
50V
C11
Electrolytic
470
16V
C12
Barrier Layer
0.1
16V
C13
Electrolytic
100
25V
J1
Connector
CM-3
P1
Connector
3191-04R1
P2
Connector
1P·SMF01T·1.3
P3
Connector
Spring Connector (Y)
P4
Connector
Spring Connector (Y)
P5
Connector
1625·03R1
P6
Connector
1625·03P1
F1
Fuse
0.5A (F.G.M.S)
F2
Fuse
2A
F3
Holder
FH-033
F4
Holder
S·N5051
F5
Holder
S-N5051
T1
Transformer
TP-46
EP1
P.C. Board
B-1002B
8-28
