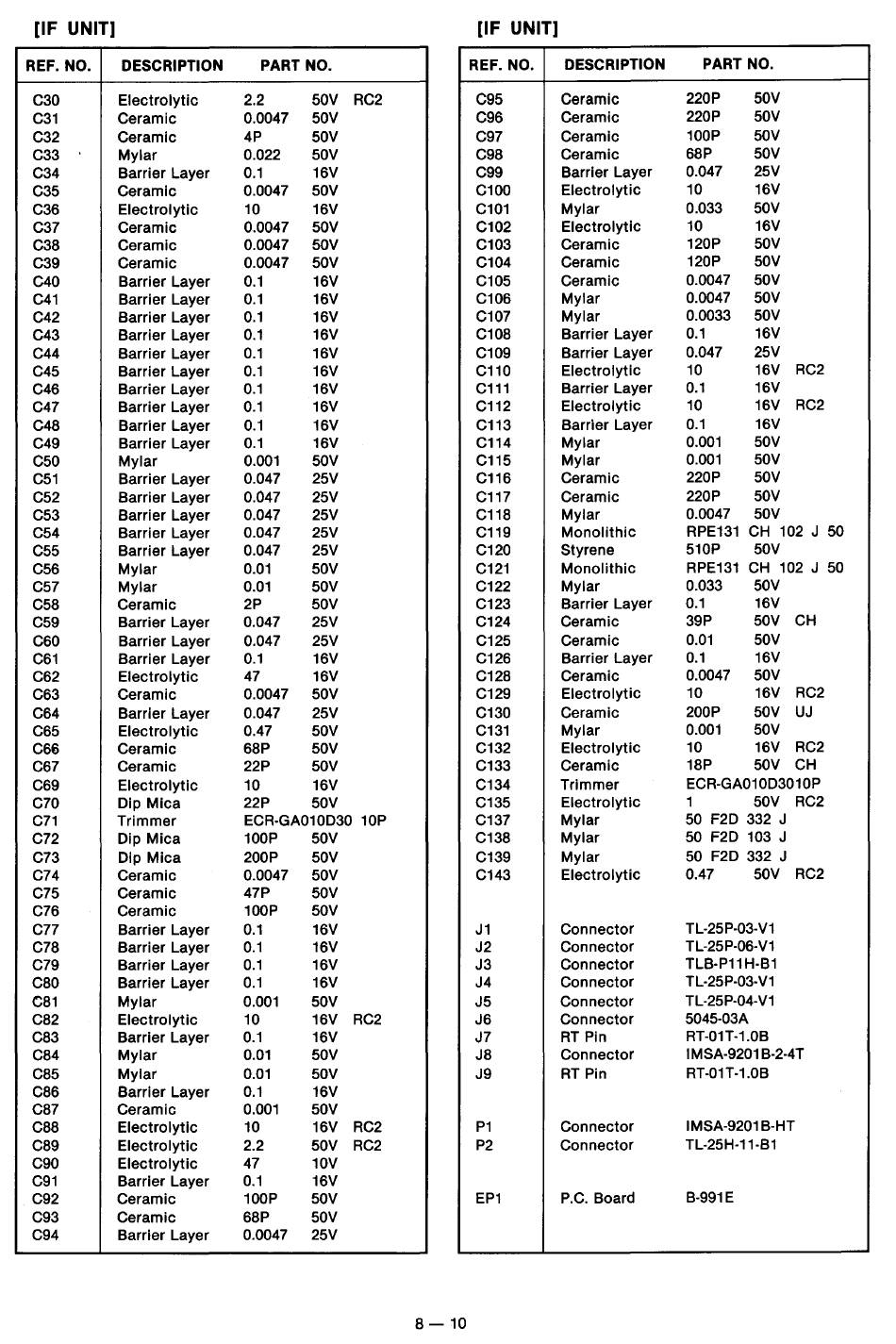

Icom IC-R7000 Service Manual page 80

[IF UNIT] [IF UNIT]
REF. NO.
DESCRIPTION PART NO. REF. NO.
DESCRIPTION PART NO.
C30 Electrolytic 2.2
50V RC2 C95 Ceramic
220P 50V
C31 Ceramic 0.0047 50V C96
Ceramic
220P 50V
C32 Ceramic 4P 50V C97
Ceramic
100P 50V
C33 Mylar 0.022 50V C98
Ceramic
68P 50V
C34 Barrier Layer 0.1 16V C99
Barrier Layer
0.047 25V
C35
Ceramic 0.0047 50V
C100 Electrolytic
10 16V
C36 Electrolytic 10
16V C101 Mylar
0.033 50V
C37 Ceramic 0.0047 50V C102
Electrolytic
10 16V
C38 Ceramic
0.0047 50V C103 Ceramic
120P
50V
C39
Ceramic 0.0047 50V C104 Ceramic
120P 50V
C40 Barrier Layer 0.1 16V C105
Ceramic
0.0047 50V
C41 Barrier Layer 0.1 16V
C106 Mylar
0.0047 50V
C42 Barrier Layer 0.1 16V
C107 Mylar
0.0033 50V
C43 Barrier Layer 0.1
16V C108
Barrier Layer 0.1 16V
C44
Barrier Layer 0.1 16V C109
Barrier Layer 0.047 25V
C45 Barrier Layer 0.1 16V C110
Electrolytic 10
16V RC2
C46 Barrier Layer 0.1 16V
C111 Barrier Layer
0.1 16V
C47 Barrier Layer 0.1 16V
C112 Electrolytic
10 16V RC2
C48 Barrier Layer 0.1 16V C113
Barrier Layer
0.1 16V
C49 Barrier Layer
0.1 16V C114 Mylar
0.001 50V
C50
Mylar 0.001 50V C115 Mylar
0.001 50V
C51
Barrier Layer 0.047 25V
C116 Ceramic
220P 50V
C52 Barrier Layer 0.047 25V
C117 Ceramic
220P 50V
C53 Barrier Layer 0.047 25V
C118 Mylar
0.0047 50V
C54 Barrier Layer
0.047 25V C119 Monolithic
RPE131 CH 102 J 50
C55
Barrier Layer 0.047 25V C120 Styrene
510P 50V
C56 Mylar 0.01 50V C121
Monolithic
RPE131 CH 102 J 50
C57 Mylar
0.01 50V C122 Mylar
0.033 50V
C58 Ceramic
2P 50V C123
Barrier Layer 0.1 16V
C59
Barrier Layer 0.047 25V
C124 Ceramic 39P 50V CH
C60
Barrier Layer 0.047 25V C125
Ceramic 0.01 50V
C61 Barrier Layer 0.1 16V C126
Barrier Layer 0.1
16V
C62 Electrolytic
47 16V C128 Ceramic 0.0047
50V
C63 Ceramic 0.0047 50V
C129 Electrolytic
10 16V RC2
C64 Barrier Layer 0.047 25V
C130 Ceramic
200P 50V UJ
C65 Electrolytic
0.47 50V C131
Mylar 0.001 50V
C66
Ceramic 68P 50V C132
Electrolytic 10
16V RC2
C67 Ceramic 22P 50V
C133 Ceramic
18P 50V CH
C69 Electrolytic 10 16V
C134 Trimmer ECR-GA010D3010P
C70 Dip Mica 22P 50V
C135 Electrolytic
1 50V RC2
C71 Trimmer
ECR-GA01 OD30 10P C137
Mylar 50 F2D 332 J
C72
Dip Mica
100P 50V
C138 Mylar
50 F2D 103 J
C73 Dip Mica 200P 50V C139
Mylar
50 F2D 332 J
C74 Ceramic
0.0047 50V C143 Electrolytic
0.47 50V RC2
C75 Ceramic 47P 50V
C76
Ceramic 100P 50V
C77 Barrier Layer 0.1 16V J1
Connector
TL-25P-03-V1
C78 Barrier Layer 0.1 16V J2
Connector
TL-25P-06-V1
C79 Barrier Layer
0.1 16V J3 Connector
TLB-P11H-B1
C80
Barrier Layer 0.1 16V J4 Connector
TL-25P-03-V1
C81 Mylar 0.001 50V J5 Connector
TL-25P-04-V1
C82
Electrolytic
10
16V RC2 J6 Connector
5045-03A
C83 Barrier Layer 0.1 16V J7 RT Pin
RT-01T·1.0B
C84 Mylar 0.01 50V J8
Connector
I MSA-9201 B-2-4T
C85
Mylar 0.01 50V J9 RT Pin
RT-01T-1.0B
C86 Barrier Layer 0.1 16V
C87 Ceramic 0.001 50V
C88
Electrolytic 10 16V RC2 P1 Connector
IMSA-9201 B-HT
C89 Electrolytic 2.2 50V RC2 P2 Connector
TL-25H-11-B1
C90 Electrolytic 47 10V
C91 Barrier Layer 0.1 16V
C92 Ceramic
100P 50V EP1
P.C. Board B-991E
C93 Ceramic 68P 50V
C94 Barrier Layer 0.0047 25V
8-10
