Icom IC-R7000 Service Manual page 43

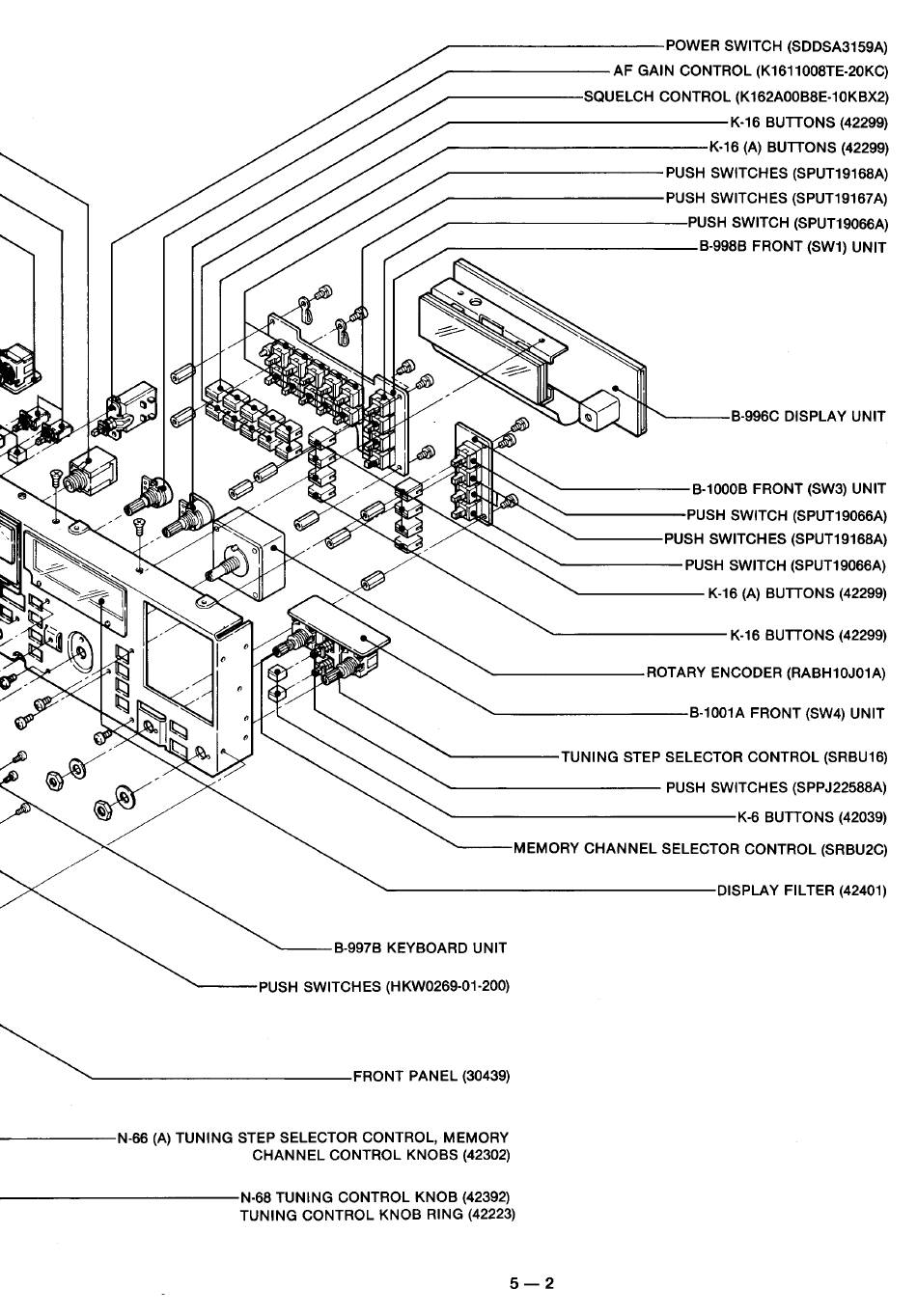

. - - - - - - - - - - P O W E R SWITCH (SDDSA3159A)
. - - - - - - - - A F GAIN CONTROL (K1611008TE-20KC)
.-------SQUELCH CONTROL (K162AOOB8E-10KBX2)
. - - - - - - - - - - - - - K - 1 6 BUTTONS (42299)
. - - - - - - - - - - - - K - 1 6 (A) BUTTONS (42299)
. - - - - - - - - - - P U S H SWITCHES (SPUT19168A)
. - - - - - - - - - - P U S H SWITCHES (SPUT19167A)
~----------PUSH
SWITCH (SPUT19066A)
~-----------B-998B
FRONT (SW1) UNIT
---B-996C DISPLAY UNIT
- - - - - - B - 1 0 0 0 B FRONT (SW3) UNIT
- - - - - - P U S H SWITCH (SPUT19066A)
- - - - P U S H SWITCHES (SPUT19168A)
- - - - - - P U S H SWITCH (SPUT19066A)
- - - - - - K-16 (A) BUTTONS (42299)
- - - - - - - - K - 1 6 BUTTONS (42299)
- - - - - - - R O T A R Y ENCODER (RABH10J01A)
- - - - - - - - - B - 1 0 0 1 A FRONT (SW4) UNIT
'-----TUNING STEP SELECTOR CONTROL (SRBU16)
- - - - - - - - - - PUSH SWITCHES (SPPJ22588A)
- - - - - - - - - - - - - K - 6 BUTTONS (42039)
---MEMORY CHANNEL SELECTOR CONTROL (SRBU2C)
' - - - - - - - - - - - - - - - - D I S P L A Y FIL TEA (42401)
---B-997B KEYBOARD UNIT
---PUSH SWITCHES (HKW0269-01-200)
- - - - - N - 6 6 (A) TUNING STEP SELECTOR CONTROL, MEMORY
CHANNEL CONTROL KNOBS (42302)
- - - - - - - - - - - N - 6 8 TUNING CONTROL KNOB (42392)
TUNING CONTROL KNOB RING (42223)
